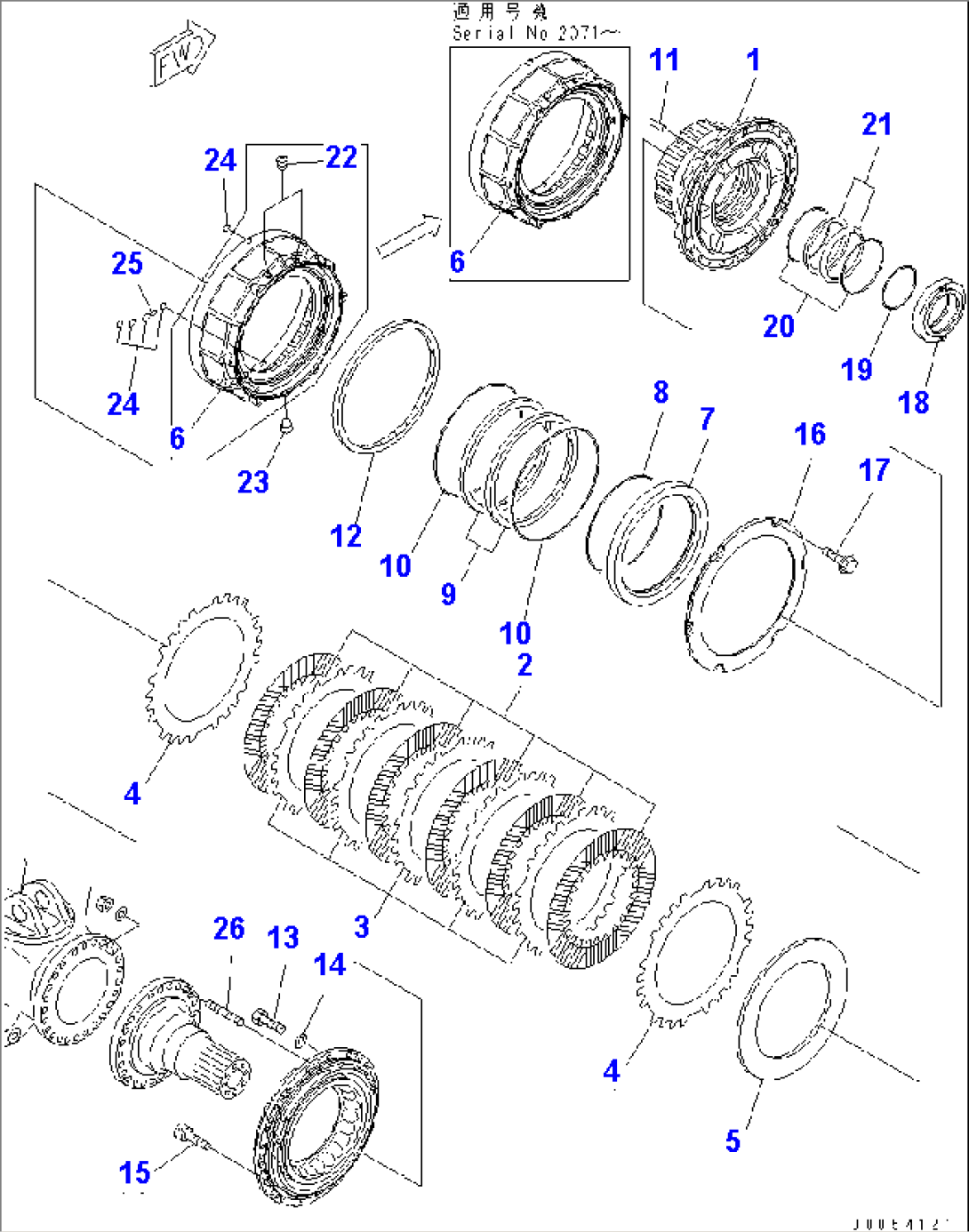

| Item | Part No. | Part Name | Qty | Serial No. |
| (56B-27-22003) | FINAL AND BRAKE A. | 2001- | ||
| (\2\56B-27-22002) | FINAL AND BRAKE A. | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3360-01A0 TO F3360-08A0. | ||||
| (56B-27-24051) | FINAL AND BRAKE A.,R.H. | 2001- | ||
| (\2\56B-27-24050) | FINAL AND BRAKE A.,R.H. | (2001-2430) | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F3360-05A0 TO F3360-08A0. | ||||
| 1 | 56B-27-12811 | HUB | 2001- | |
| 2 | 425-33-11510 | DISC | 2001- | |
| 3 | 566-33-41230 | PLATE | 2001- | |
| 4 | 566-33-41261 | DAMPER | 2001- | |
| 5 | 426-33-21280 | PLATE | 2001- | |
| 6 | 56B-33-21214 | GEAR | 2071- | |
| 6 | \0\56B-33-21213 | GEAR | 2001-2070 | |
| 7 | 56B-33-21361 | RETAINER | 2001- | |
| 7 | (\2\56B-33-21360) | RETAINER | (2001-2430) | |
| 8 | 07000-15350 | O-RING | 2001- | |
| 9 | 567-33-41421 | RING | 2001- | |
| 10 | 180-27-11620 | O-RING | 2001- | |
| 11 | 04020-00820 | PIN,DOWEL | 2001- | |
| 12 | 56B-22-13461 | SEAL | 2001- | |
| 12 | (\2\56B-22-13460) | SEAL | (2001-2430) | |
| 13 | 01010-61445 | BOLT | 2001- | |
| 14 | 01643-31445 | WASHER | 2001- | |
| 15 | 01252-61230 | BOLT | 2001- | |
| 16 | 56B-33-21490 | PLATE | 2001- | |
| 17 | 01435-01020 | BOLT | 2001- | |
| 18 | 56B-33-11331 | RETAINER | 2001- | |
| 19 | 07000-15145 | O-RING | 2001- | |
| 20 | 21N-30-16190 | O-RING | 2001- | |
| 21 | 56B-33-11350 | SEAL | 2001- | |
| 22 | 07043-70108 | PLUG | 2001-2070 | |
| 23 | 07043-70211 | PLUG | 2001- | |
| 24 | 07000-12016 | O-RING | 2001- | |
| 25 | 07000-12012 | O-RING | 2001- | |
| 26 | 01144-32095 | STUD | 2071- | |
| 26 | 01144-32095 | STUD | 2001-2070 |
