| Item | Part No. | Part Name | Qty | Serial No. |
| (428-22-10004) | FRONT AXLE ASS'Y | 10001- | ||
| (\2\428-22-10003) | FRONT AXLE ASS'Y | (10077-10101) | ||
| (\2\428-22-10002) | FRONT AXLE ASS'Y | (10001-10076) | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.3101 TO 3147. | ||||

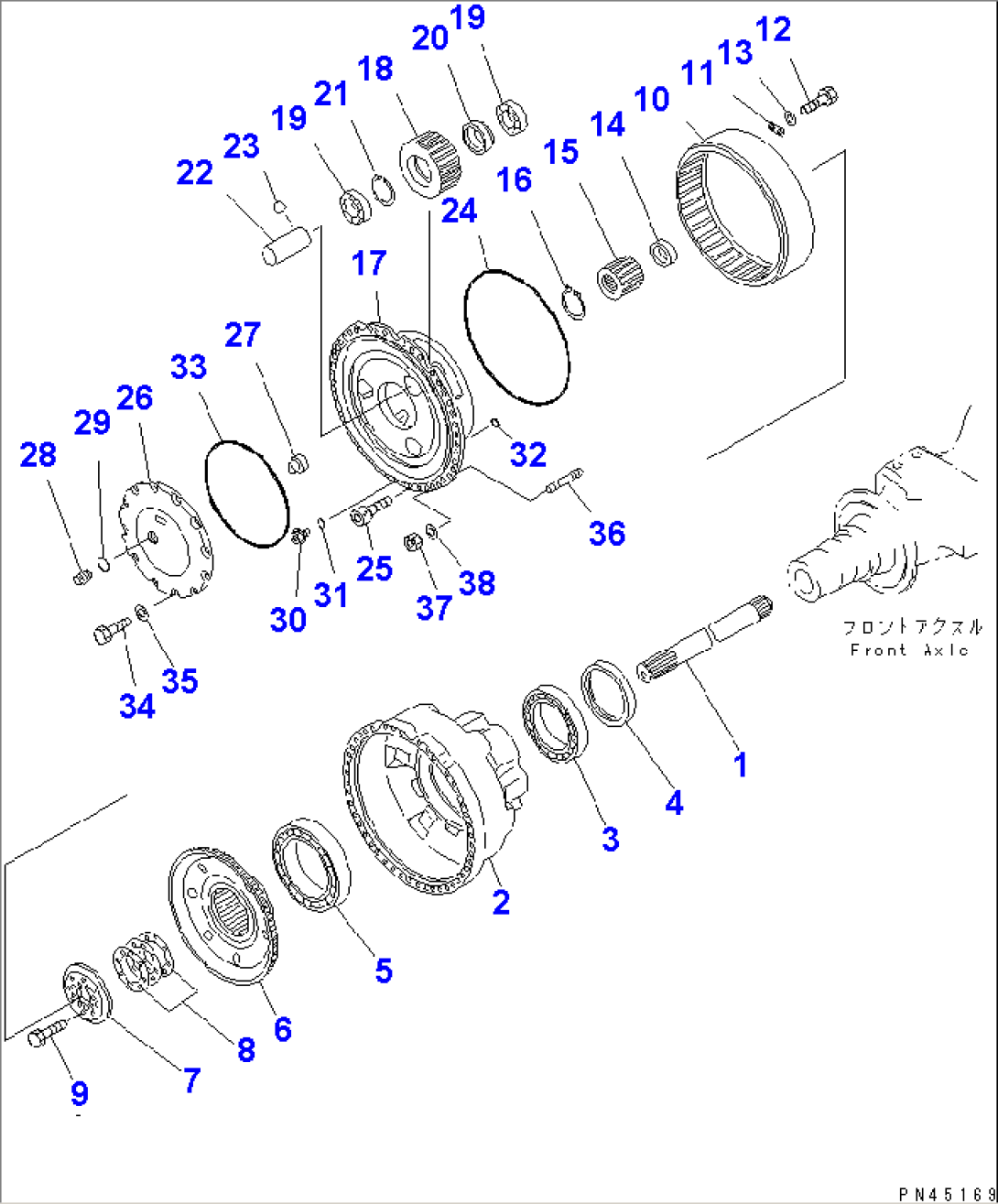

| 428-22-12002 | FINAL DRIVE ASS'Y | 10001- | ||
| 1 | 428-22-12412 | SHAFT,FRONT, L.H. (LONG) | 10001- | |
| 1 | 428-22-12442 | SHAFT,FRONT, R.H. (SHORT) | 10001- | |
| 2 | 428-22-12710 | HUB | 10001- | |
| 3 | 428-22-12840 | BEARING | 10001- | |
| 4 | 428-22-12130 | RETAINER | 10001- | |
| 5 | 428-22-12870 | BEARING | 10001- | |
| 6 | 428-22-12330 | HUB | 10001- | |
| 7 | 428-22-12210 | RETAINER | 10001- | |
| 8 | 428-22-05040 | SHIM ASS'Y | 10001- | |
| 8 | 428-22-12260 | SHIM, 0.05MM | 10001- | |
| 8 | 428-22-12250 | SHIM, 0.2MM | 10001- | |
| 8 | 428-22-12240 | SHIM, 0.5MM | 10001- | |
| 8 | 428-22-12230 | SHIM, 1.0MM | 10001- | |
| 9 | 01010-62080 | BOLT | 10001- | |
| 10 | 428-22-12541 | GEAR | 10001- | |
| 11 | 428-22-12360 | PLATE | 10001- | |
| 12 | 01010-61025 | BOLT | 10001- | |
| 13 | 01643-31032 | WASHER | 10001- | |
| 14 | 428-22-12430 | SPACER | 10001- | |
| 15 | 428-22-12421 | GEAR | 10001- | |
| 16 | 04064-08530 | RING,SNAP | 10001- | |
| 428-22-12101 | CARRIER ASS'Y | 10001- | ||
| 17 | 428-22-12641 | CARRIER | 10001- | |
| 18 | 428-22-12581 | GEAR | 10001- | |
| 19 | 428-22-12810 | BEARING | 10001- | |
| 20 | 428-22-12650 | SPACER | 10001- | |
| 21 | 428-22-12910 | RING,SNAP | 10001- | |
| 22 | 428-22-12550 | SHAFT | 10001- | |
| 23 | 04260-01905 | BALL | 10001- | |
| 24 | 287-33-11160 | O-RING (K7) | 10001- | |
| 25 | 01252-31230 | BOLT | 10001- | |
| 26 | 428-22-12631 | COVER | 10001- | |
| 27 | 286-22-12630 | BUTTON | 10001- | |
| 28 | 566-16-11351 | PLUG | 10001- | |
| 29 | 07002-13634 | O-RING (K7) | 10001- | |
| 30 | 07044-12412 | PLUG | 10001- | |
| 31 | 07002-12434 | O-RING (K7) | 10001- | |
| 32 | 07000-13028 | O-RING (K7) | 10001- | |
| 33 | 07000-15500 | O-RING (K7) | 10001- | |
| 34 | 01010-61235 | BOLT | 10001- | |
| 35 | 01643-31232 | WASHER | 10001- | |
| 36 | 01144-62495 | STUD | 10001- | |
| 37 | 426-22-12931 | NUT | 10001- | |
| 38 | 01643-32460 | WASHER | 10001- |
