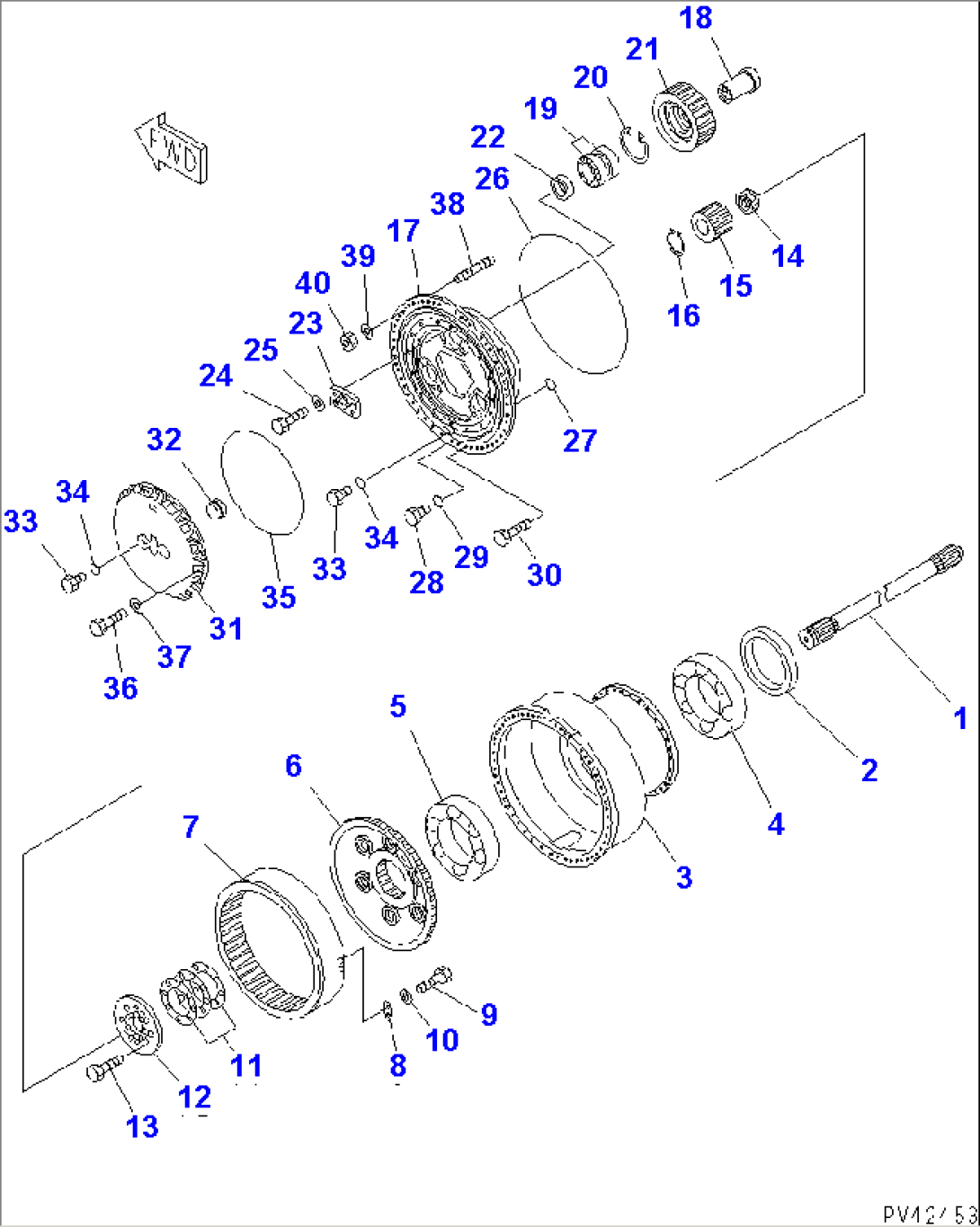

| Item | Part No. | Part Name | Qty | Serial No. |
| (427-22-10001) | FRONT AXLE ASS'Y | 10001- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3147. | ||||
| 427-22-12002 | FINAL DRIVE ASS'Y | 10504- | ||
| \0\427-22-12001 | FINAL DRIVE ASS'Y | 10001-10503 | ||
| 1 | 427-22-12411 | SHAFT | 10504- | |
| \3\427-22-12410 | SHAFT | 10001-10503 | ||
| (427-22-12411{427-22-12421¤} | ||||
| 561-22-32810) | ||||
| 2 | 427-22-12130 | RETAINER | 10001- | |
| 3 | 427-22-12712 | HUB | 10606- | |
| \3\427-22-12711 | HUB | 10001-10605 | ||
| (427-22-12712(2){01145-62405(106))} | ||||
| 4 | 568-22-12940 | BEARING | 10001- | |
| 5 | 568-22-12960 | BEARING | 10001- | |
| 6 | 561-22-62310 | HUB | .- | |
| \1\427-22-12310 | HUB | 10001-. | ||
| 7 | 427-22-12541 | GEAR | 10563- | |
| \0\427-22-12540 | GEAR | 10001-10562 | ||
| 8 | 427-22-12340 | HOLDER | 10001- | |
| (\2\285-22-12340) | HOLDER | (10001-10043) | ||
| 9 | 427-22-12590 | BOLT | 10571- | |
| \0\01010-61235 | BOLT | 10001-10570 | ||
| 10 | 01643-31232 | WASHER | 10001- | |
| 11 | 427-22-00070 | SHIM KIT | 10001- | |
| \6\ | SHIM¤ 0.2MM | 10001- | ||
| \6\ | SHIM¤ 0.3MM | 10001- | ||
| \6\ | SHIM¤ 1.0MM | 10001- | ||
| 12 | 427-22-12211 | RETAINER | 10001- | |
| 13 | 01010-62495 | BOLT | 10001- | |
| 14 | 427-22-12430 | SPACER | 10001- | |
| 15 | 427-22-12421 | GEAR | 10504- | |
| \3\427-22-12420 | GEAR | 10001-10503 | ||
| (427-22-12421{427-22-12411¤} | ||||
| 561-22-32810) | ||||
| 16 | 561-22-32810 | RING,SNAP | 10504- | |
| 04064-01030 | RING,SNAP | 10001-10503 | ||
| 427-22-00060 | CARRIER ASS'Y | 10001- | ||
| 17 | 427-22-12611 | CARRIER | 10001- | |
| 18 | 427-22-12511 | SHAFT | 10001- | |
| 19 | 427-22-12520 | BEARING | 10001- | |
| 20 | 04071-00180 | RING,SNAP | 10001- | |
| 21 | 427-22-12530 | GEAR | 10001- | |
| 22 | 427-22-12570 | SPACER | 10001- | |
| 23 | 427-22-12560 | HOLDER | 10001- | |
| 24 | 01010-61660 | BOLT | 10001- | |
| 25 | 01643-31645 | WASHER | 10001- | |
| 26 | 562-22-12920 | O-RING (K12) | 10001- | |
| 27 | 07000-13028 | O-RING (K12) | 10001- | |
| 28 | 07044-12412 | PLUG | 10001- | |
| 29 | 07002-12434 | O-RING (K12) | 10001- | |
| 30 | 01252-31225 | BOLT | 10001- | |
| 31 | 427-22-12623 | COVER | 10044- | |
| \0\427-22-12622 | COVER | 10001-10043 | ||
| 32 | 562-22-12630 | BUTTON | 10001- | |
| 33 | 07044-13620 | PLUG | 10001- | |
| 34 | 07002-13634 | O-RING (K12) | 10001- | |
| 35 | 281-09-11110 | O-RING (K12) | 10001- | |
| 36 | 01010-61235 | BOLT | ..- | |
| \0\01010-31235 | BOLT | 10001-.. | ||
| 37 | 01643-31232 | WASHER | 10001- | |
| 38 | 01145-62405 | STUD | 10606- | |
| \3\01125-82405 | STUD | 10001-10605 | ||
| (01145-62405(106){427-22-12712(2))} | ||||
| 39 | (01643-32460) | WASHER | 10001- | |
| 40 | (426-22-12930) | NUT | 10001- |
