| Item | Part No. | Part Name | Qty | Serial No. |
| (41E-22-10101) | AXLE ASS'Y,FRONT | 10001- | ||
| (41E-22-10190) | AXLE ASS'Y,FRONT (DIAVIK SPEC,) | 10169- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.3101 TO 3161. | ||||

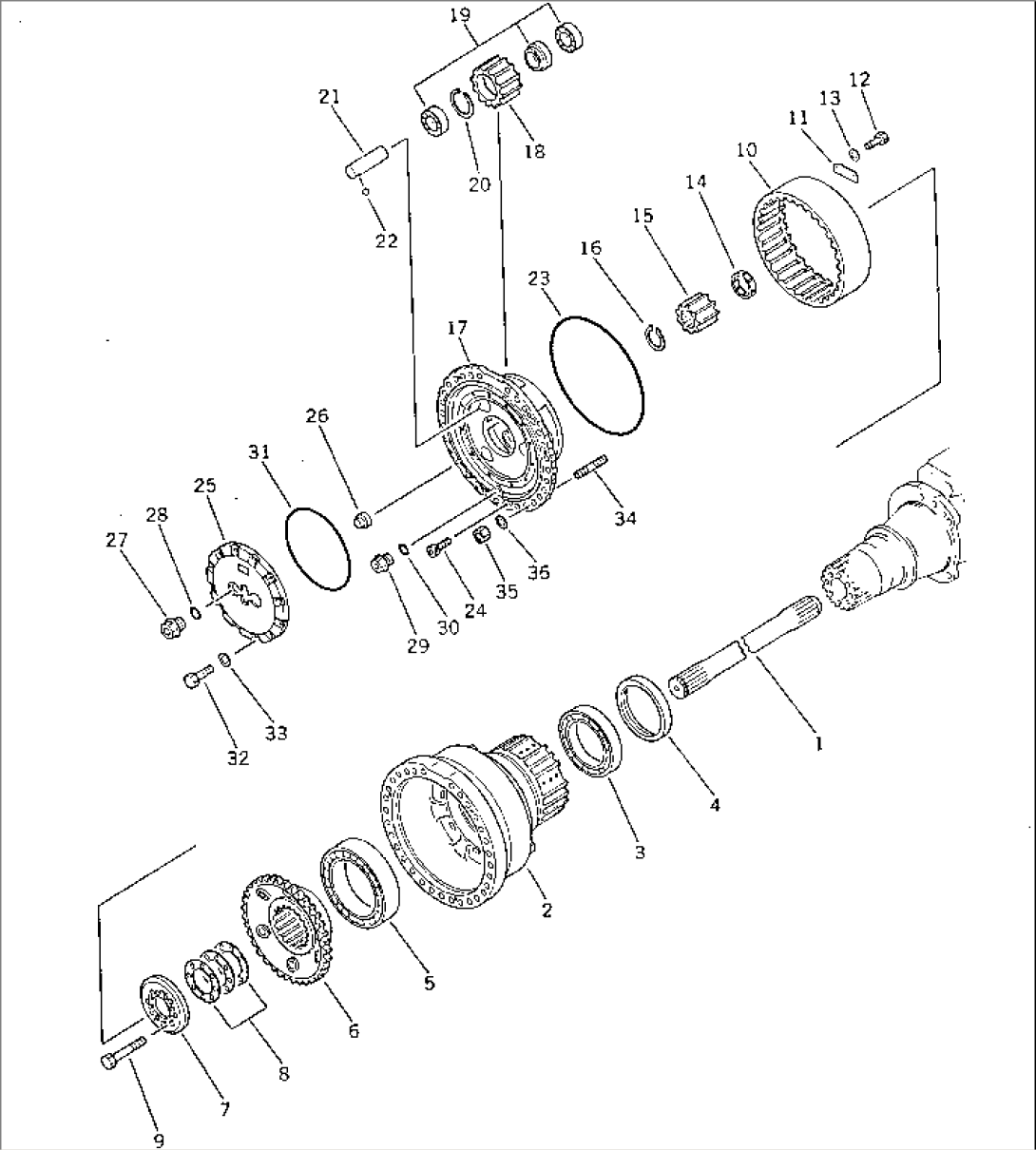

| 41E-22-12101 | FINAL DRIVE ASS'Y | 10001- | ||
| 1 | 426-22-12411 | SHAFT,FRONT, L.H. | 10169- | |
| 1 | 426-22-12410 | SHAFT,FRONT, L.H. | 10001-10168 | |
| 1 | 426-22-12441 | SHAFT,FRONT, R.H. | 10169- | |
| 1 | 426-22-12440 | SHAFT,FRONT, R.H. | 10001-10168 | |
| 2 | 426-22-12712 | HUB | 10001- | |
| 3 | 426-22-12810 | BEARING | 10001- | |
| 4 | 426-22-12130 | RETAINER | 10001- | |
| 5 | 426-22-12850 | BEARING | 10001- | |
| 6 | 426-22-12310 | HUB | 10001- | |
| 7 | 426-22-12210 | RETAINER | 10001- | |
| 8 | 426-22-00050 | SHIM KIT | 10001- | |
| 8 | \6\ | SHIM, 0.2MM | 10001- | |
| 8 | \6\ | SHIM, 0.3MM | 10001- | |
| 8 | \6\ | SHIM, 1.0MM | 10001- | |
| 9 | 01010-31665 | BOLT | 10001- | |
| 10 | 426-22-12540 | GEAR | 10001- | |
| 11 | 566-22-12560 | PLATE | 10001- | |
| 12 | 01010-60820 | BOLT | .- | |
| 12 | \1\01010-30820 | BOLT | 10001-. | |
| 13 | 01643-30823 | WASHER | 10001- | |
| 14 | 426-22-12430 | SPACER | 10001- | |
| 15 | 426-22-12421 | GEAR | 10001- | |
| 16 | 04064-08530 | RING,SNAP | 10001- | |
| 426-22-00060 | CARRIER ASS'Y | 10001- | ||
| 17 | 426-22-12611 | CARRIER | 10001- | |
| 18 | 426-22-12531 | GEAR | 10169- | |
| 18 | 426-22-12530 | GEAR | 10001-10168 | |
| 19 | 426-22-12520 | BEARING | 10001- | |
| 20 | 426-22-12910 | RING,SNAP | 10001- | |
| 21 | 426-22-12510 | SHAFT | 10001- | |
| 22 | 04260-01587 | BALL | 10001- | |
| 23 | 07000-55490 | O-RING (KIT) | 10001- | |
| 24 | 01252-31230 | BOLT | 10001- | |
| 25 | 41E-22-12620 | COVER | 10001- | |
| 26 | 286-22-12630 | BUTTON | 10001- | |
| 27 | 07044-13620 | PLUG | 10001- | |
| 28 | 07002-53634 | O-RING (KIT) | 10001- | |
| 29 | 07044-12412 | PLUG | 10001- | |
| 30 | 07002-52434 | O-RING (KIT) | 10001- | |
| 31 | 07000-55345 | O-RING (KIT) | 10001- | |
| 32 | 01010-51230 | BOLT | 10001- | |
| 33 | 01643-31232 | WASHER | 10001- | |
| 34 | 01144-62485 | STUD | 10001- | |
| 35 | 426-22-12931 | NUT | 10001- | |
| 36 | 01643-32460 | WASHER | 10001- |
