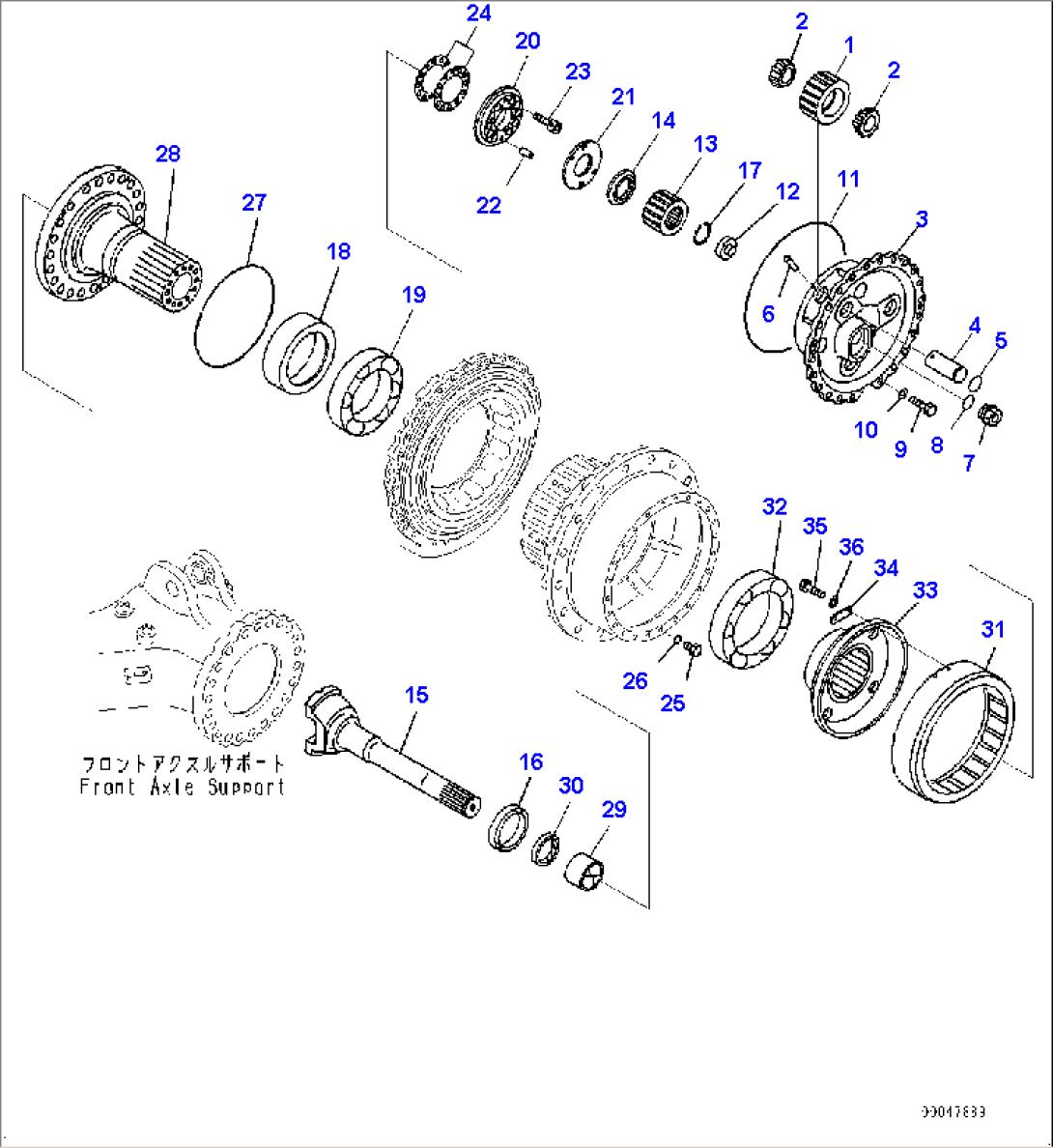

| Item | Part No. | Part Name | Qty | Serial No. |
| 56D-27-22004 | Final Drive Assembly | 2847-@ | ||
| 56D-27-22003 | Final Drive Assembly | 2785-2846 | ||
| 56D-27-25002 | Final Drive Assembly | 2847-@ | ||
| 56D-27-25001 | Final Drive Assembly | 2785-2846 | ||
| 1 | 56D-22-12531 | Gear | 2785-@ | |
| 2 | 423-22-12811 | Bearing | 2785-@ | |
| 3 | 56D-27-12611 | Carrier | 2785-2846 | |
| 4 | 56D-22-12511 | Shaft | 2785-2846 | |
| 5 | 07000-13034 | O-ring | 2785-2846 | |
| 6 | 419-22-12570 | Pin | 2785-@ | |
| 7 | 07044-13620 | Plug | 2785-@ | |
| 8 | 07002-13634 | O-ring | 2785-@ | |
| 9 | 01010-61440 | Bolt | 2785-@ | |
| 10 | 01643-31445 | Washer, Flat | 2785-@ | |
| 11 | 07000-15335 | O-ring | 2785-@ | |
| 12 | 286-22-12630 | Button | 2785-@ | |
| 13 | 56D-22-12421 | Gear | 2785-@ | |
| 14 | 56D-27-12341 | Spacer | 2785-@ | |
| 15 | 56D-27-12414 | Shaft | 2785-@ | |
| 16 | 56B-27-12990 | Deflector | 2785-@ | |
| 17 | 56D-27-12460 | Ring, Snap | 2785-@ | |
| 18 | 56D-23-12632 | Retainer | 2785-@ | |
| 19 | 56D-22-22340 | Bearing | 2785-@ | |
| 20 | 56D-27-12362 | Retainer | 2785-@ | |
| 21 | 56D-27-12370 | Retainer | 2785-@ | |
| 22 | 04020-01024 | Pin, Dowel | 2785-@ | |
| 23 | 01252-61245 | Bolt, Hexagon Socket Head | 2785-@ | |
| 24 | 423-22-12260 | Shim, T=0.05mm | 2785-@ | |
| 24 | 423-22-12250 | Shim, T=0.2mm | 2785-@ | |
| 24 | 423-22-12240 | Shim, T=0.3mm | 2785-@ | |
| 24 | 423-22-12230 | Shim, T=1.0mm | 2785-@ | |
| 25 | 07040-11409 | Plug | 2785-@ | |
| 26 | 07002-11423 | O-ring | 2785-@ | |
| 27 | 07000-15260 | O-ring | 2785-@ | |
| 28 | 56D-27-13212 | Tube | 2785-@ | |
| 29 | 23W-22-22780 | Bushing | 2785-@ | |
| 30 | 23W-22-22591 | Seal | 2785-@ | |
| 31 | 56D-22-12542 | Gear, Ring | 2785-@ | |
| 32 | 56D-22-22350 | Bearing | 2785-@ | |
| 33 | 56D-22-12340 | Hub | 2785-@ | |
| 34 | 423-22-12561 | Plate | 2785-@ | |
| 35 | 01010-60820 | Bolt | 2785-@ | |
| 36 | 01643-30823 | Washer | 2785-@ |
