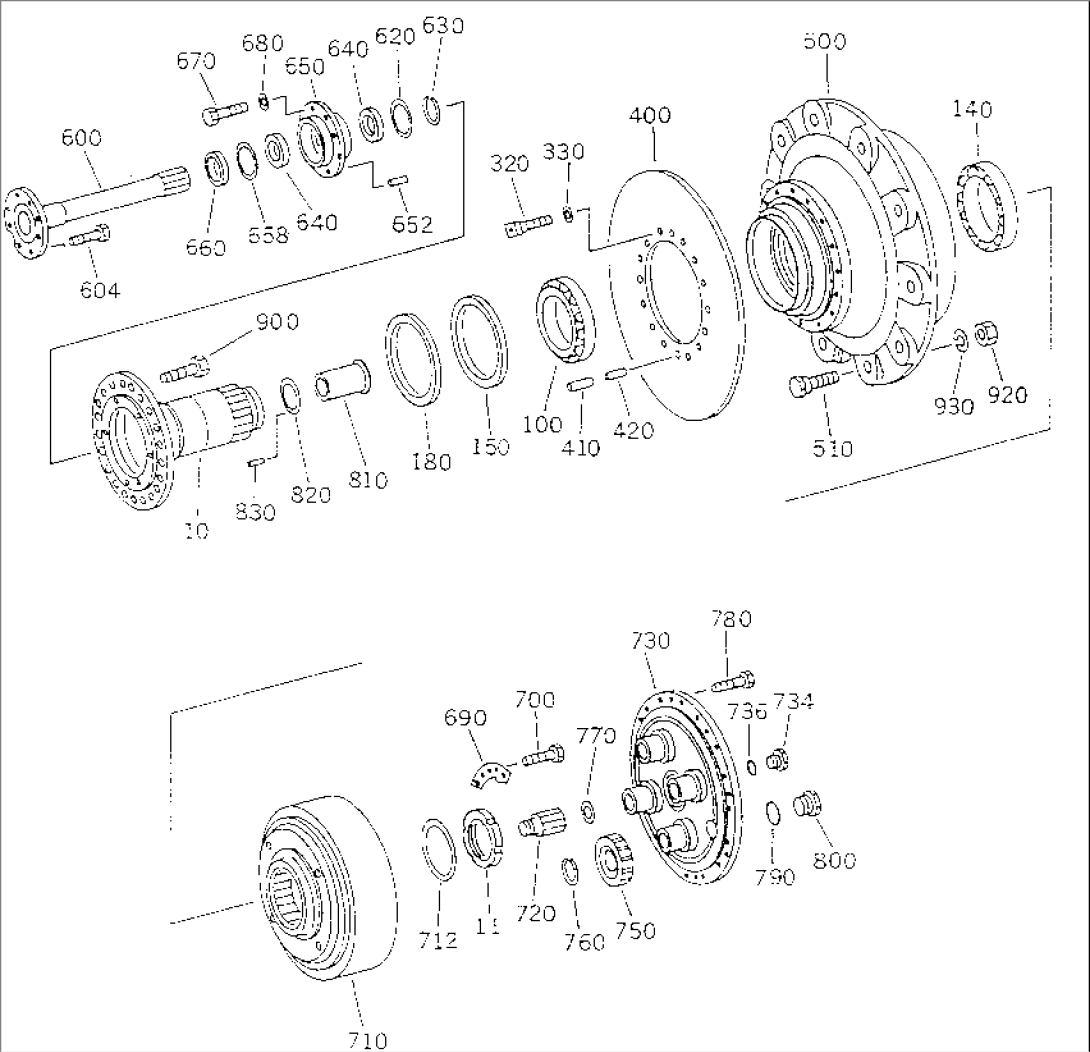

FRONT FINAL DRIVE(#313104-)

FRONT FINAL DRIVE(#313104-)
ItemPart No.Part NameQtySerial No.
BW153206HUB ASS'Y313104-
10BW153236SHAFT,HUB313104-
11BW152378NUT313104-
100BW153161BEARING313104-
140BW153162BEARING313104-
150BW153163SHIM, 0.5MM313104-
150BW153164SHIM, 1.0MM313104-
150BW153165SHIM, 1.5MM313104-
150BW153166SHIM, 2.0MM313104-
150BW153167SHIM, 2.5MM313104-
150BW153168SHIM, 3.0MM313104-
150BW153169SHIM, 3.5MM313104-
180BW153170RING,SEAL313104-
320BW053955BOLT313104-
330BW153178WASHER313104-
400BW153179DISC313104-
410BW153023PIN,(S18X50)313104-
420BW153024PIN,(S11X50)313104-
500BW153171HOUSING313104-
510BW153172BOLT313104-
600BW153237SHAFT,TORQUE313104-
604BW153238BOLT313104-
620BW053369SHIM, 1.1MM313104-
620BW053637SHIM, 1.2MM313104-
620BW053638SHIM, 1.3MM313104-
620BW053639SHIM, 1.4MM313104-
620BW053640SHIM, 1.5MM313104-
620BW053641SHIM, 1.6MM313104-
620BW053642SHIM, 1.7MM313104-
620BW053643SHIM, 1.8MM313104-
620BW053644SHIM, 1.9MM313104-
620BW053645SHIM, 2.0MM313104-
630BW052864RING,SNAP313104-
640BW152955BEARING313104-
650BW053368CAGE313104-
652BW153174PIN313104-
658BW153175RING313104-
660BW152956RING,SEAL313104-
670BW061488BOLT313104-
680BW053367WASHER313104-
690BW153239WASHER313104-
700BW153240BOLT313104-
710BW153241RING,GEAR313104-
712BW153160SHIM, 0.85MM313104-
712BW153159SHIM, 0.90MM313104-
712BW153158SHIM, 0.95MM313104-
712BW153157SHIM, 1.00MM313104-
712BW153156SHIM, 1.05MM313104-
712BW153155SHIM, 1.10MM313104-
712BW153154SHIM, 1.15MM313104-
712BW153153SHIM, 1.20MM313104-
712BW153152SHIM, 1.25MM313104-
712BW153151SHIM, 1.30MM313104-
712BW153150SHIM, 1.35MM313104-
712BW153149SHIM, 1.40MM313104-
712BW153148SHIM, 1.45MM313104-
712BW153147SHIM, 1.50MM313104-
712BW153146SHIM, 1.55MM313104-
712BW153145SHIM, 1.60MM313104-
712BW153144SHIM, 1.65MM313104-
712BW153143SHIM, 1.70MM313104-
712BW153142SHIM, 1.75MM313104-
712BW153141SHIM, 1.80MM313104-
712BW153140SHIM, 1.85MM313104-
712BW153139SHIM, 1.90MM313104-
712BW153138SHIM, 1.95MM313104-
712BW153137SHIM, 2.00MM313104-
712BW153136SHIM, 2.05MM313104-
712BW153135SHIM, 2.10MM313104-
712BW153134SHIM, 2.15MM313104-
720BW153242GEAR313104-
730BW153243CARRIER313104-
734BW153244PLUG313104-
736BW252127O-RING313104-
750BW153245GEAR313104-
760BW153280RING,RETAINER313104-
770BW153264WASHER, 1.7MM313104-
770BW153265WASHER, 1.8MM313104-
770BW153263WASHER, 1.9MM313104-
770BW153254WASHER, 2.7MM313104-
770BW153253WASHER, 2.9MM313104-
770BW153252WASHER, 3.1MM313104-
770BW153251WASHER, 3.3MM313104-
770BW153250WASHER, 3.5MM313104-
770BW153255WASHER, 3.7MM313104-
770BW153256WASHER, 3.9MM313104-
770BW153257WASHER, 4.1MM313104-
770BW153258WASHER, 4.8MM313104-
770BW153246WASHER, 5.0MM313104-
770BW153259WASHER, 5.2MM313104-
770BW153260WASHER, 5.4MM313104-
770BW153261WASHER, 5.6MM313104-
770BW153247WASHER, 6.0MM313104-
770BW153248WASHER, 6.3MM313104-
770BW153249WASHER, 6.5MM313104-
770BW153262WASHER, 7.5MM313104-
780BW153177BOLT313104-
790BW153266O-RING313104-
800BW153267PLUG313104-
810BW153268GUIDE313104-
820BW153269WASHER,THRUST313104-
830BW153270PIN313104-
900BW061322BOLT313104-
920BW153350NUT313150-
920BW053345NUT313104-313149
930BW053344WASHER,SPRING313104-
