| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-877-2230 | FRAME,FRONT | 53001- | |
| 1 | 01571-01016 | SEAT (WELDED) | 53001- | |
| 2 | 09602-10001 | PLATE, NAME | 54527- | |
| 2 | 09602-10010 | PLATE, NAME,(LIMITED SUPPLY) | 53001-54526 | |
| 3 | 04418-13060 | SCREW | 53001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180 3 s/n 53001 up (m/c)
- Main/revolving frame and related parts
- Front frame (1/2) (frame) (with 3 spool valve)
Поиск по каталогу

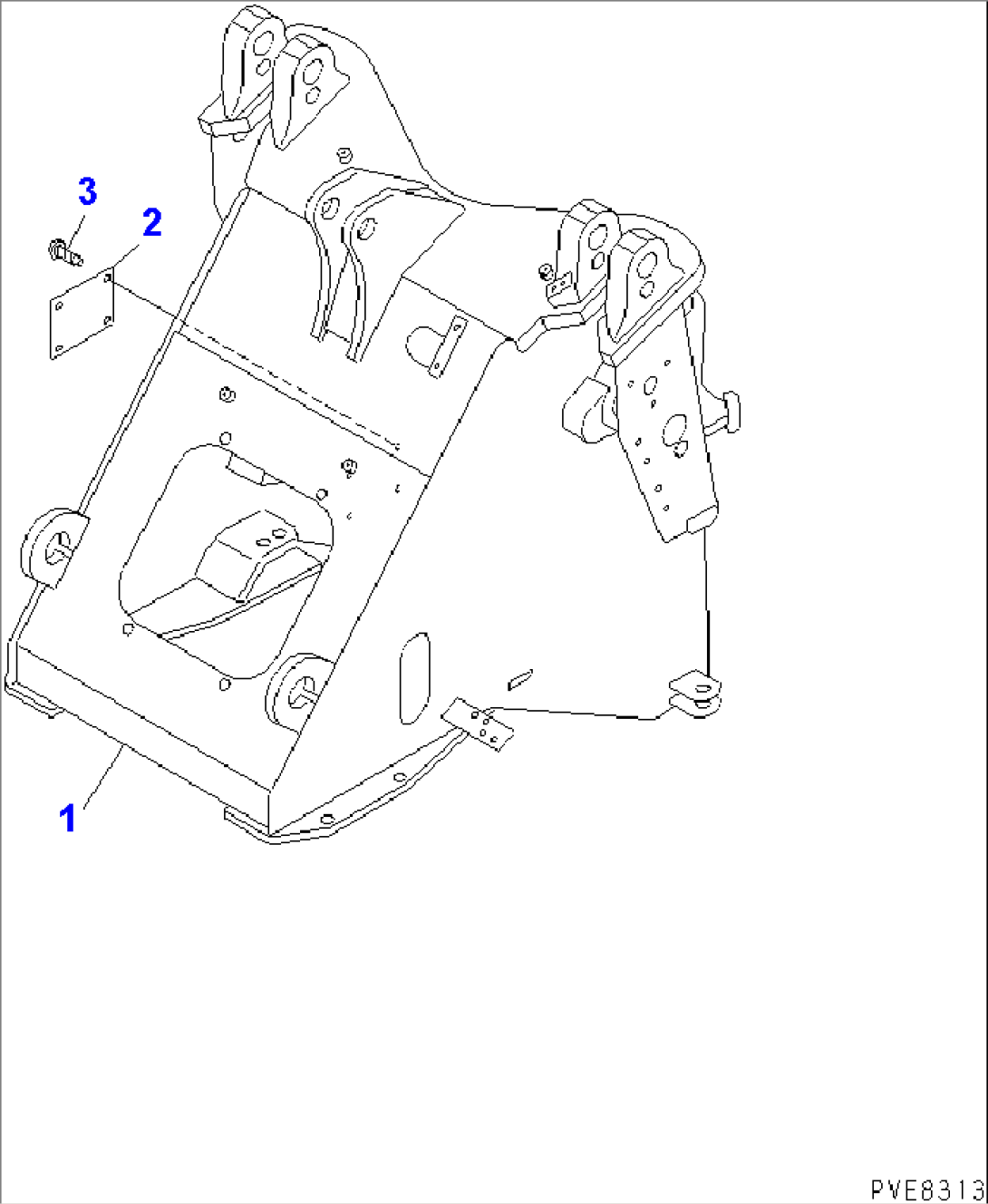

FRONT FRAME (1/2) (FRAME) (WITH 3-SPOOL VALVE)
