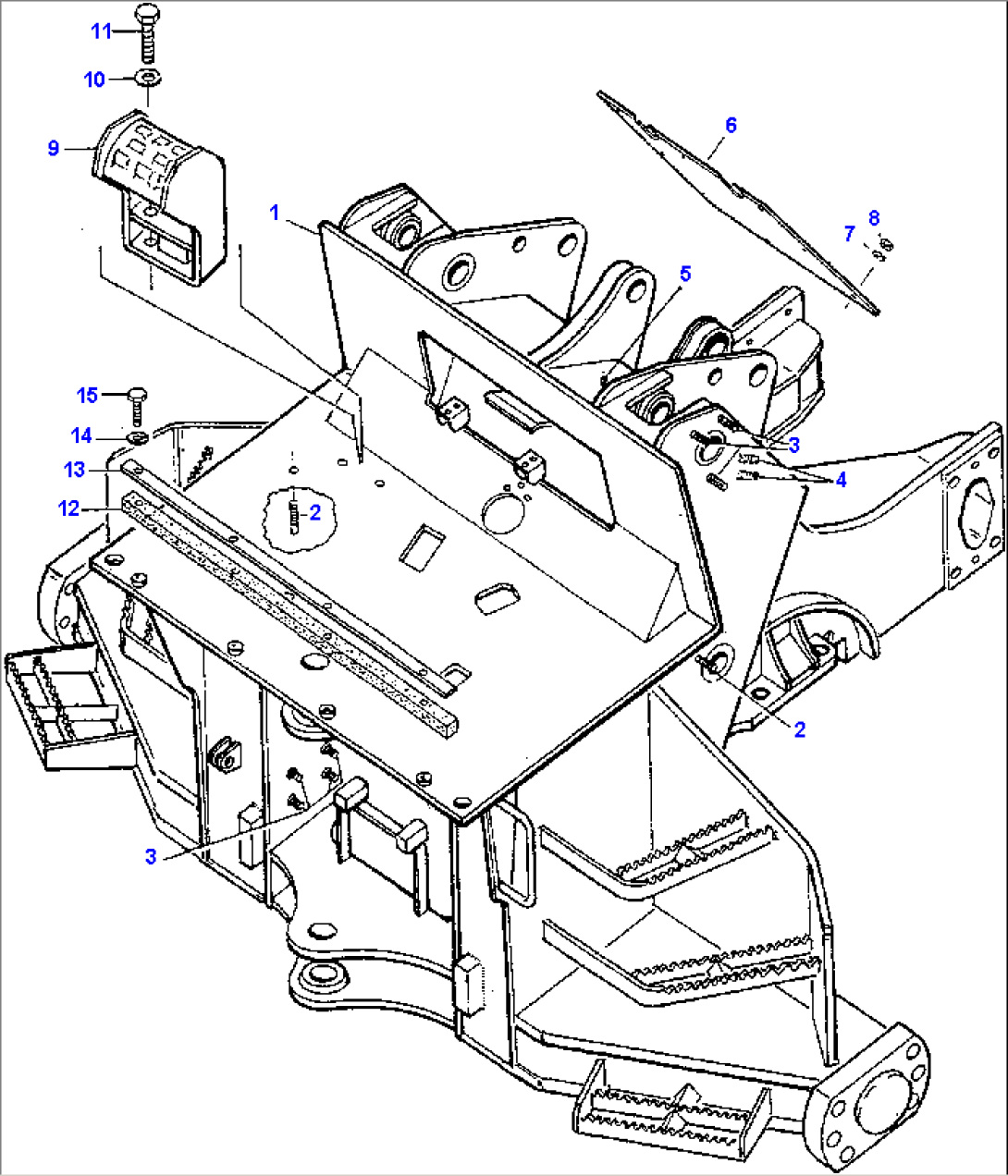

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 4245250M92 | FRONT FRAME | ||
| 2 | 1444285X1 | THREADED PIN | ||
| 3 | 1444280X1 | THREADED PIN | ||
| 4 | 1444282X1 | THREADED PIN | ||
| 5 | NOT USED | |||
| 6 | 4245505M1 | COVER PLATE | ||
| 7 | 2964056M1 | DISC | ||
| 8 | 1444331X1 | NUT | ||
| 9 | 4246139M91 | STAND | ||
| 10 | 2993793X1 | SPRING WASHER | ||
| 11 | 2993715X1 | SCREW | ||
| 12 | 4246279M1 | GASKET | ||
| 13 | 4246278M1 | SLAT | ||
| 14 | NOT USED | |||
| 15 | 1444139X1 | SCREW | ||
| 16 | 4246505M91 | STOP |
