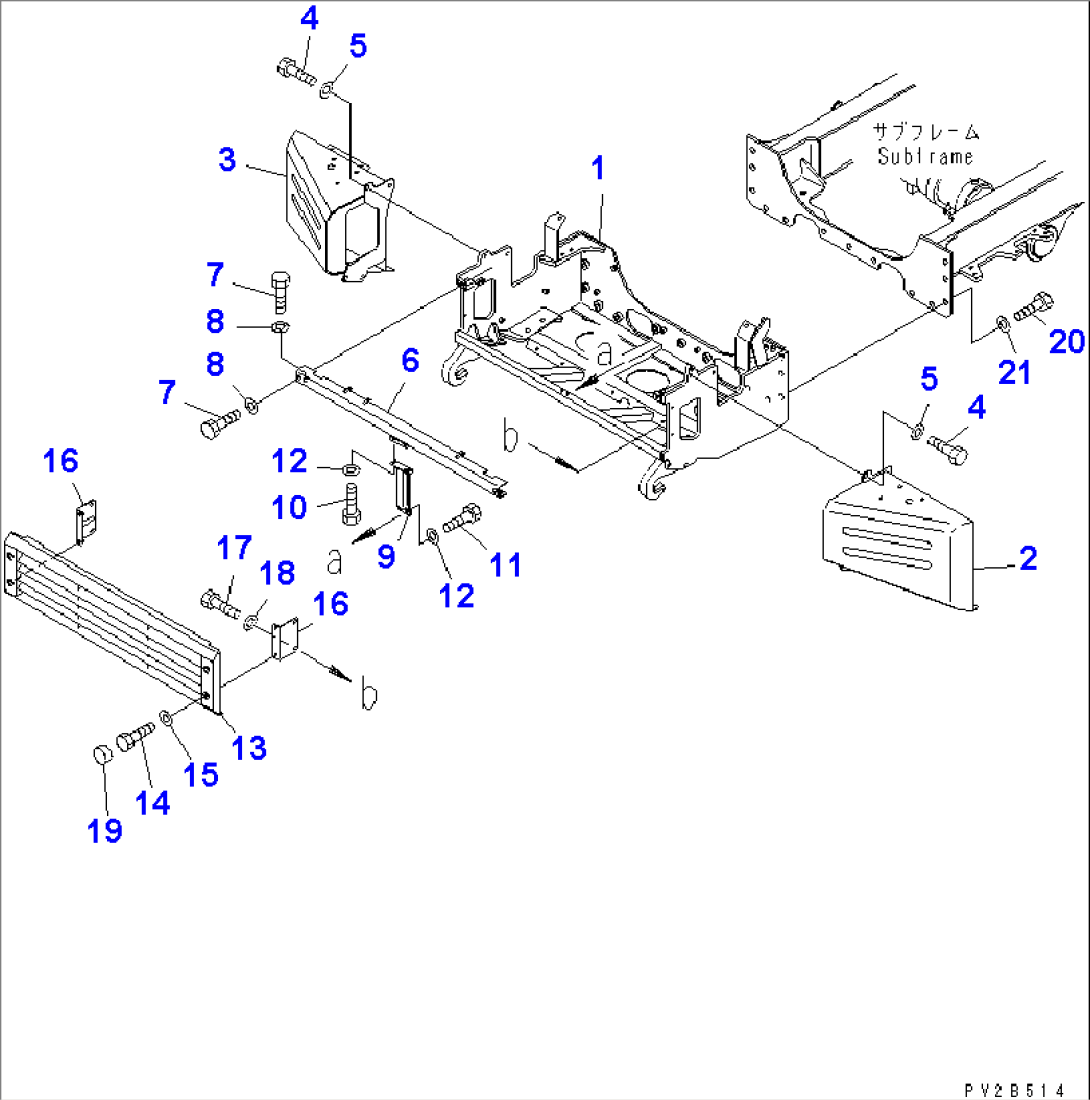

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-46-11410 | BUMPER,CENTER | A10001- | |
| 2 | 56C-46-11421 | BUMPER,L.H. | A10001- | |
| 3 | 56C-46-11431 | BUMPER,R.H. | A10001- | |
| 4 | 01010-81635 | BOLT | A10001- | |
| 5 | 01643-31645 | WASHER | A10001- | |
| 6 | 56C-46-11810 | BRACKET | A10001- | |
| 7 | 01010-81630 | BOLT | A10001- | |
| 8 | 01643-31645 | WASHER | A10001- | |
| 9 | 56C-46-11820 | BRACKET | A10001- | |
| 10 | 01010-81225 | BOLT | A10001- | |
| 11 | 01010-81230 | BOLT | A10001- | |
| 12 | 01643-31232 | WASHER | A10001- | |
| 13 | 56C-46-11533 | COVER | A10001- | |
| 14 | 01010-81220 | BOLT | A10001- | |
| 15 | 01643-31232 | WASHER | A10001- | |
| 16 | 56B-54-11470 | BRACKET | A10001- | |
| 17 | 01010-81225 | BOLT | A10001- | |
| 18 | 01643-31232 | WASHER | A10001- | |
| 19 | 09415-02512 | CAP | A10001- | |
| 20 | 01010-82455 | BOLT | A10001- | |
| 21 | 01643-32460 | WASHER | A10001- |
