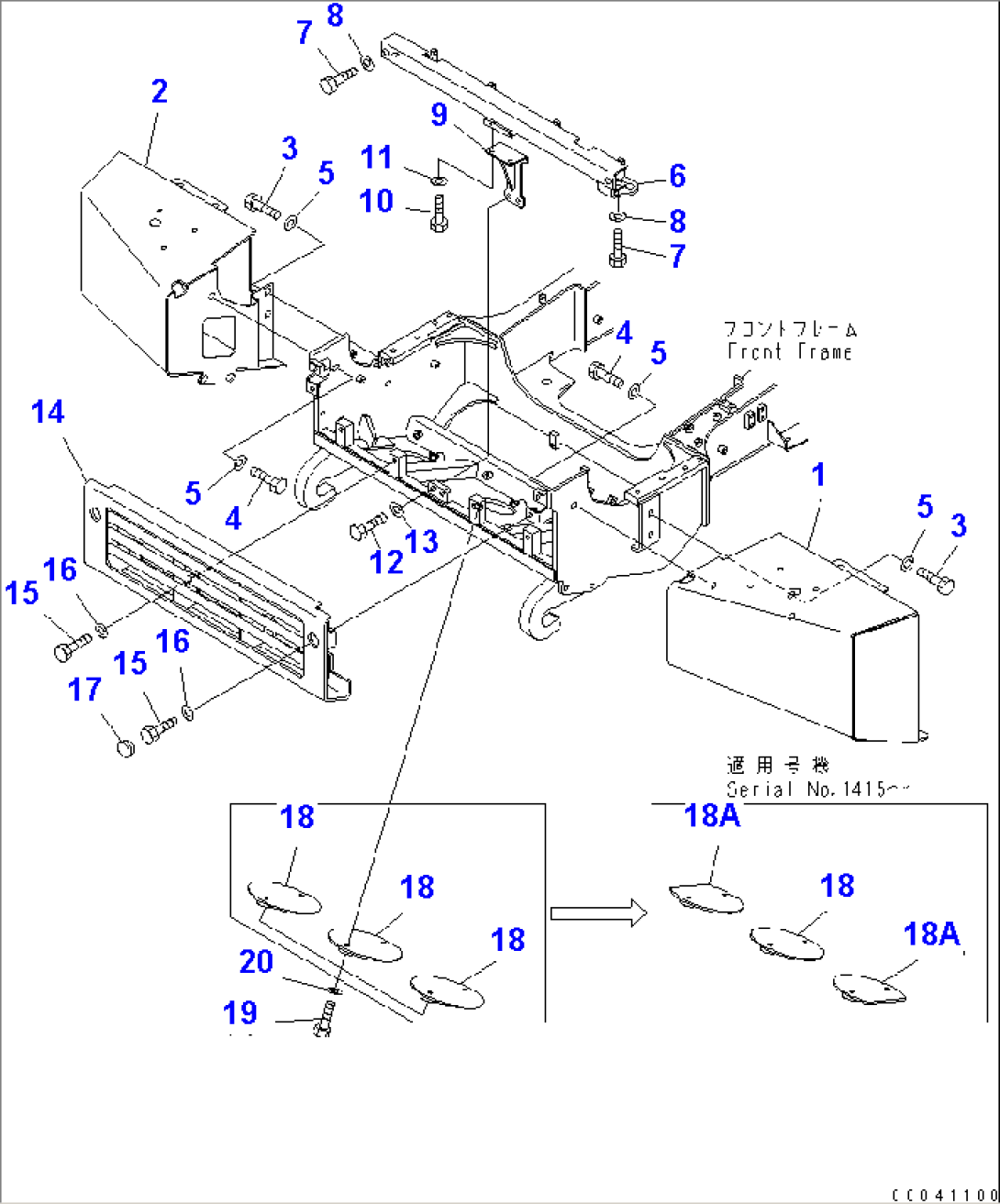

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-46-11422 | BUMPER,L.H. | 1409- | |
| 2 | 56D-46-11432 | BUMPER,R.H. | 1409- | |
| 3 | 01010-81635 | BOLT | 1001- | |
| 4 | 01010-81645 | BOLT | 1001- | |
| 5 | 01643-31645 | WASHER | 1001- | |
| 6 | 56D-46-11811 | BRACKET | 1016- | |
| 7 | 01010-81630 | BOLT | 1001- | |
| 8 | 01643-31645 | WASHER | 1001- | |
| 9 | 56D-46-11820 | BRACKET | 1001- | |
| 10 | 01010-81225 | BOLT | 1001- | |
| 11 | 01643-31232 | WASHER | 1173- | |
| 12 | 01010-81240 | BOLT | 1001- | |
| 13 | 01643-31232 | WASHER | 1173- | |
| 14 | 56D-46-11531 | GRILLE | 1409- | |
| 15 | 01010-81635 | BOLT | 1409- | |
| 16 | 01643-31645 | WASHER | 1409- | |
| 17 | 09415-03620 | CAP | 1409- | |
| 18 | 56D-46-21440 | COVER | 1415- | |
| 18 | 56D-46-21440 | COVER | 1409-1414 | |
| 18A | 56D-46-11440 | COVER | 1415- | |
| 19 | 01010-81230 | BOLT | 1409- | |
| 20 | 01643-31232 | WASHER | 1409- |
