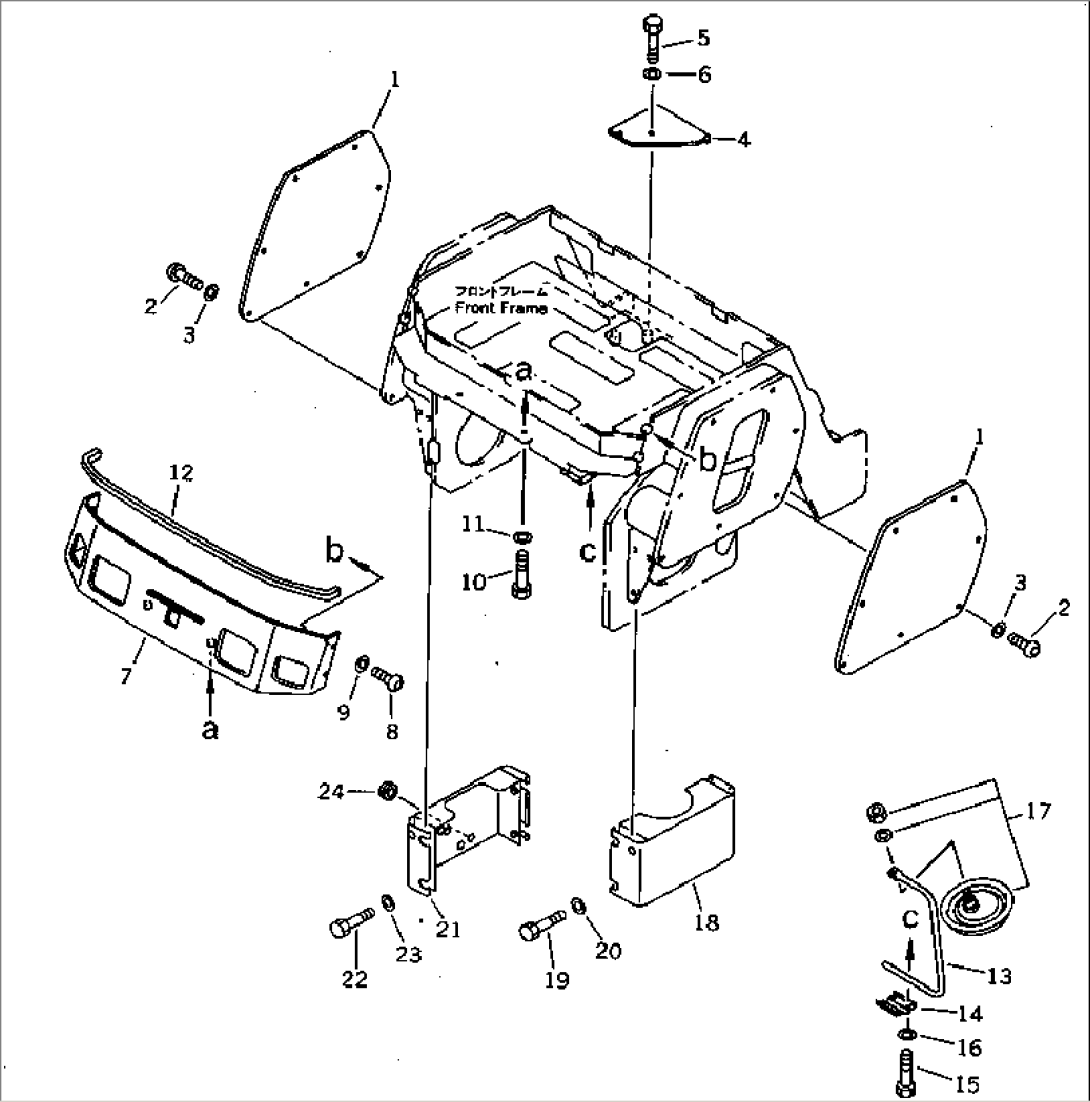

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 278-54-11440 | PLATE | 10001-@ | |
| 2 | 278-54-11420 | BOLT | 10001-10002 | |
| 3 | 01642-20608 | WASHER | 10001-10002 | |
| 4 | 278-46-11350 | COVER | 10001-@ | |
| 5 | 01010-51020 | BOLT | 10001-10002 | |
| 6 | 01643-31032 | WASHER | 10001-10002 | |
| 7 | 278-46-11270 | COVER | 10001-@ | |
| 8 | 26A-54-13760 | SCREW | 10001-10002 | |
| 9 | 01643-31032 | WASHER | 10001-@ | |
| 10 | 01010-51025 | BOLT | 10001-@ | |
| 11 | 01643-31032 | WASHER | 10001-@ | |
| 12 | 278-46-11360 | GROMMET | 10001-@ | |
| 13 | 278-06-15220 | TUBE | 10001-10002 | |
| 14 | 232-06-15131 | BRACKET,MIRROR | 10001-@ | |
| 15 | 01010-51035 | BOLT | 10001-@ | |
| 16 | 01643-31032 | WASHER | 10001-@ | |
| 17 | 418-976-1110 | MIRROR,UNDER | 10001-10002 | |
| 18 | 278-60-14810 | COVER,L.H. | 10001-@ | |
| 19 | 01010-51030 | BOLT | 10001-@ | |
| 20 | 01643-31032 | WASHER | 10001-@ | |
| 21 | 278-60-14820 | COVER,R.H. | 10001-@ | |
| 22 | 01010-51030 | BOLT | 10001-@ | |
| 23 | 01643-31032 | WASHER | 10001-@ | |
| 24 | 09415-02512 | CAP | 10001-@ |
