| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-06-16212 | COVER | 1001-@ | |
| 2 | 56B-06-16232 | SEAL | 1001-@ | |
| 3 | 56B-06-16241 | SEAL | 1001-@ | |
| 4 | 01435-01016 | BOLT | 1001-@ | |
| 5 | 09415-01008 | CAP | 1001-@ | |
| 6 | 09415-01610 | CAP | 1001-@ | |
| 7 | 09415-03614 | CAP | 1001-@ |
- Главная
- Каталог запчастей
- Самосвалы
- Hm300 1 s/n 1001 up
- Electrical system
- Front frame electrical (cab floor cover)(#1001 1015)
Поиск по каталогу

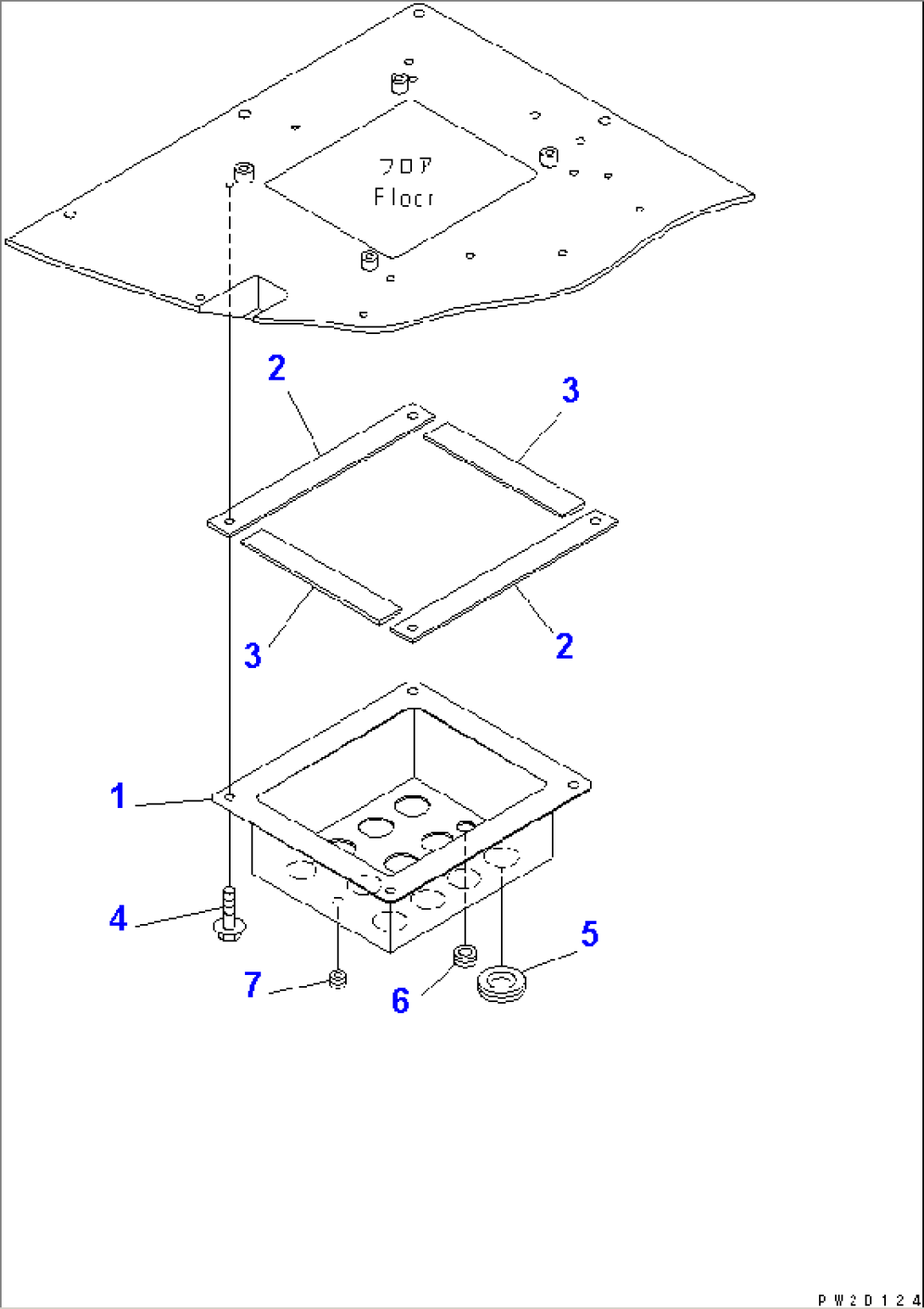

FRONT FRAME ELECTRICAL (CAB FLOOR COVER)(#1001-1015)
