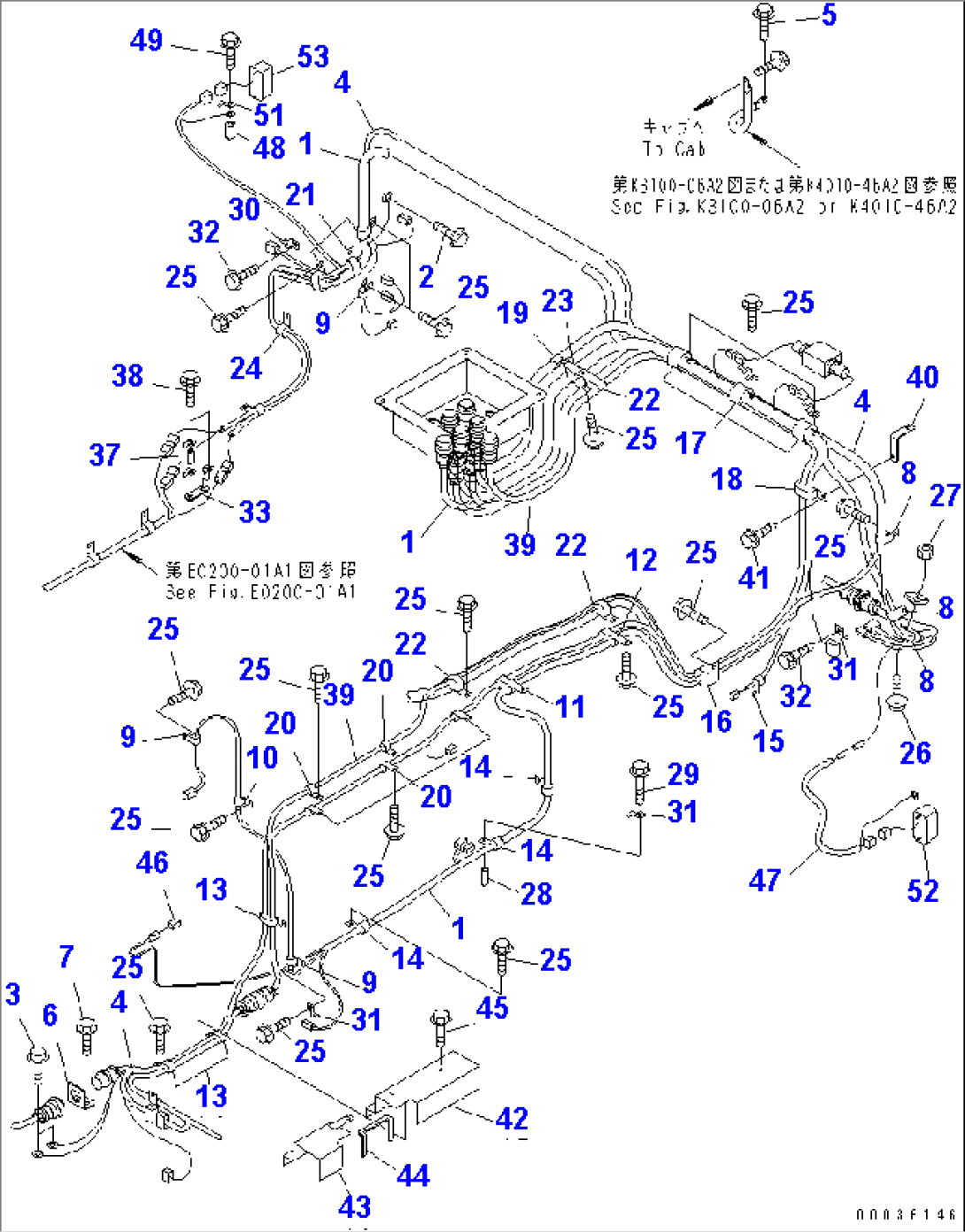

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-06-17410 | WIRING HARNESS | 1122- | |
| 1 | 56B-06-11413 | WIRING HARNESS | 1001-1121 | |
| 2 | 01435-01016 | BOLT | 1001- | |
| 3 | 01435-01016 | BOLT | 1001- | |
| 4 | 56B-06-17420 | WIRING HARNESS | 1122- | |
| 4 | 56B-06-11423 | WIRING HARNESS | 1001-1121 | |
| 5 | 01435-01016 | BOLT | 1001- | |
| 6 | 56B-06-11130 | PLATE | 1001- | |
| 7 | 01435-01220 | BOLT | 1001- | |
| 8 | 08036-92514 | CLIP | 1001- | |
| 9 | 08036-90814 | CLIP | 1001- | |
| 10 | 08036-91014 | CLIP | 1001- | |
| 11 | 100-04-12400 | CLIP ASS'Y | 1001- | |
| 12 | 100-04-12400 | CLIP ASS'Y | 1001- | |
| 13 | 130-06-14230 | CLIP | 1001- | |
| 14 | 08036-91814 | CLIP | 1001- | |
| 15 | 569-07-61790 | CLIP | 1001- | |
| 16 | 234-885-3660 | CLIP | 1001- | |
| 17 | 582-35-11170 | CLIP | 1001- | |
| 18 | 04435-51810 | CLIP | 1001- | |
| 19 | 08036-93014 | CLIP | 1001- | |
| 20 | 04434-51610 | CLIP | 1001- | |
| 21 | 195-03-46380 | CLIP | 1001- | |
| 22 | 203-06-56390 | CLIP | 1001- | |
| 23 | 285-02-11320 | CLIP | 1001- | |
| 24 | 04434-52110 | CLIP | 1001- | |
| 25 | 01435-01016 | BOLT | 1001- | |
| 26 | 01435-01020 | BOLT | 1001- | |
| 27 | 01580-01008 | NUT | 1001- | |
| 28 | 22T-61-11370 | SPACER | 1001- | |
| 29 | 01435-01065 | BOLT | 1001- | |
| 30 | 08193-31012 | CLIP | 1001- | |
| 31 | 08193-21012 | CLIP | 1001- | |
| 32 | 01435-01016 | BOLT | 1001- | |
| 33 | 56B-06-11160 | PLATE | 1001- | |
| 37 | 22T-61-11360 | SPACER | 1001- | |
| 38 | 01435-01055 | BOLT | 1001- | |
| 39 | 56B-06-17460 | WIRING HARNESS | 1122- | |
| 39 | 56B-06-12411 | WIRING HARNESS | 1001-1121 | |
| 40 | 56B-06-11240 | BRACKET | 1001- | |
| 41 | 01435-01020 | BOLT | 1001- | |
| 42 | 56B-06-11171 | BRACKET | 1001- | |
| 43 | 56B-06-11230 | BRACKET | 1001- | |
| 44 | 56B-06-11250 | SEAL | 1001- | |
| 45 | 01435-01016 | BOLT | 1001- | |
| 46 | 566-06-63730 | CONNECTOR ASS'Y | 1001- | |
| 47 | 56B-06-11490 | WIRING HARNESS | 1001-1121 | |
| 48 | 415-03-11210 | SPACER | 1001- | |
| 49 | 01435-01050 | BOLT | 1001- | |
| 51 | 08193-21012 | CLIP | 1001- | |
| 52 | 56B-06-11641 | LAMP,TURN SIGNAL | 1001-1121 | |
| 52 | 08110-12410 | BULB, 12W | 1001-1121 | |
| 52 | 23W-06-23160 | LENS | 1001-1121 | |
| 52 | 01220-40450 | SCREW | 1001-1121 | |
| 53 | 56B-06-11641 | LAMP,TURN SIGNAL | 1001- | |
| 53 | 08110-12410 | BULB, 12W | 1001- | |
| 53 | 23W-06-23160 | LENS | 1001- | |
| 53 | 01220-40450 | SCREW | 1001- |
