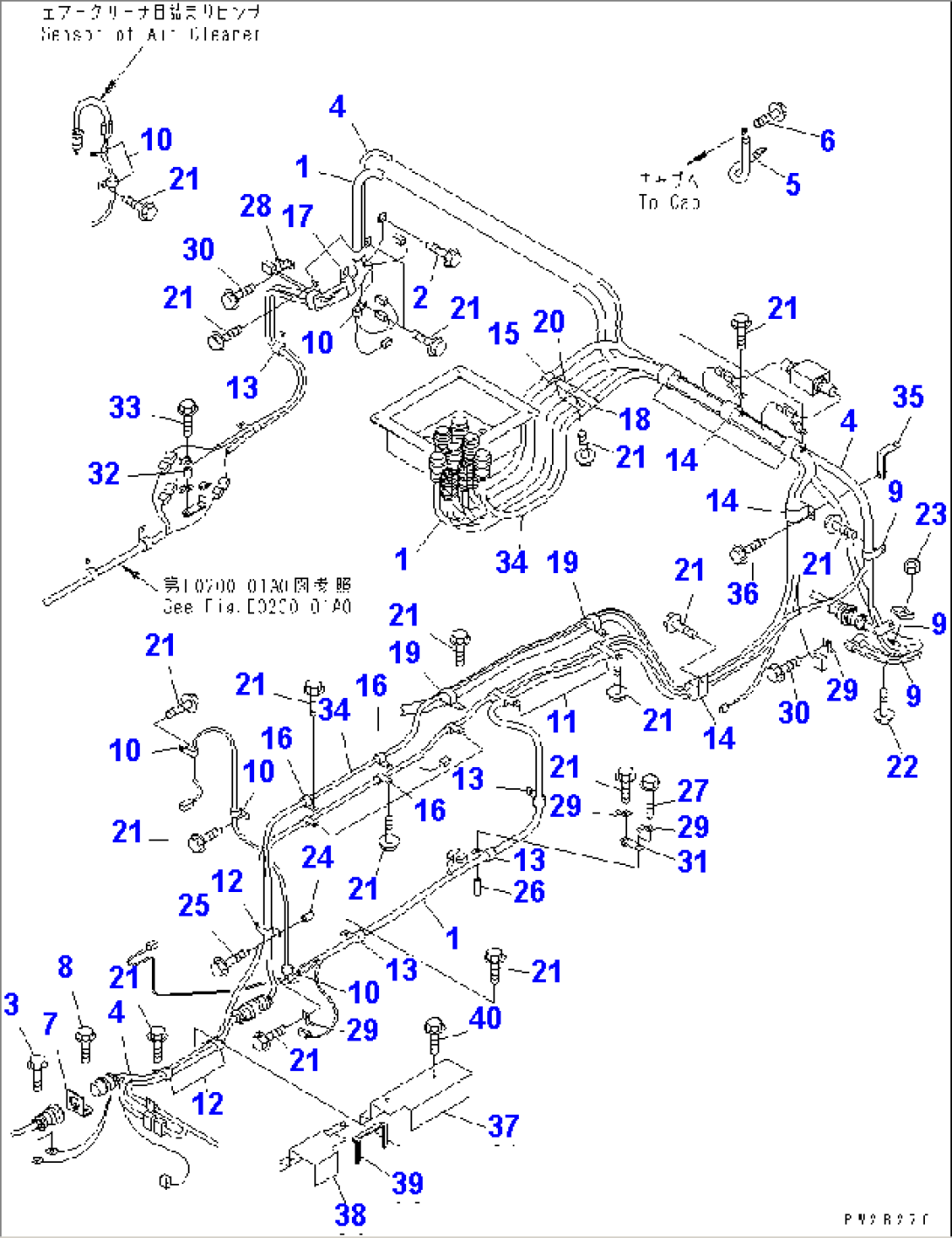

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-06-11413 | WIRING HARNESS | 1001-@ | |
| 2 | 01435-01016 | BOLT | 1001-@ | |
| 3 | 01435-01016 | BOLT | 1001-@ | |
| 4 | 56B-06-11422 | WIRING HARNESS | 1001-1019 | |
| 5 | 08028-35045 | CABLE | 1001-@ | |
| 6 | 01435-01020 | BOLT | 1001-1019 | |
| 7 | 56B-06-11130 | PLATE | 1001-@ | |
| 8 | 01435-01220 | BOLT | 1001-@ | |
| 9 | 08036-02514 | CLIP | 1001-@ | |
| 10 | 08036-01014 | CLIP | 1001-1019 | |
| 11 | 100-04-12400 | CLIP ASS'Y | 1001-1019 | |
| 12 | 130-06-14230 | CLIP | 1001-1019 | |
| 13 | 08036-01814 | CLIP | 1001-1019 | |
| 14 | 569-07-61790 | CLIP | 1001-1019 | |
| 15 | 08036-03014 | CLIP | 1001-@ | |
| 16 | 04434-51610 | CLIP | 1001-1019 | |
| 17 | 195-03-46380 | CLIP | 1001-@ | |
| 18 | 198-03-16640 | CLIP | 1001-1019 | |
| 19 | 203-06-56390 | CLIP | 1001-@ | |
| 20 | 285-02-11320 | CLIP | 1001-@ | |
| 21 | 01435-01016 | BOLT | 1001-@ | |
| 22 | 01435-01020 | BOLT | 1001-@ | |
| 23 | 01580-01008 | NUT | 1001-@ | |
| 24 | 565-95-18260 | COLLAR | 1001-1019 | |
| 25 | 01435-01050 | BOLT | 1001-1019 | |
| 26 | 567-35-43560 | SPACER | 1001-1019 | |
| 27 | 01435-01065 | BOLT | 1001-1019 | |
| 28 | 08193-31012 | CLIP | 1001-@ | |
| 29 | 08193-21012 | CLIP | 1001-@ | |
| 30 | 01435-01016 | BOLT | 1001-@ | |
| 31 | 56B-06-11160 | PLATE | 1001-@ | |
| 32 | 419-15-17541 | SPACER | 1001-@ | |
| 33 | 01435-01040 | BOLT | 1001-@ | |
| 34 | 56B-06-12411 | WIRING HARNESS | 1001-@ | |
| 35 | 287-90-12160 | BRACKET | 1001-1019 | |
| 36 | 01435-01020 | BOLT | 1001-@ | |
| 37 | 56B-06-11171 | BRACKET | 1001-@ | |
| 38 | 56B-06-11230 | BRACKET | 1001-@ | |
| 39 | 56B-06-11250 | SEAL | 1001-@ | |
| 40 | 01435-01016 | BOLT | 1001-@ |
