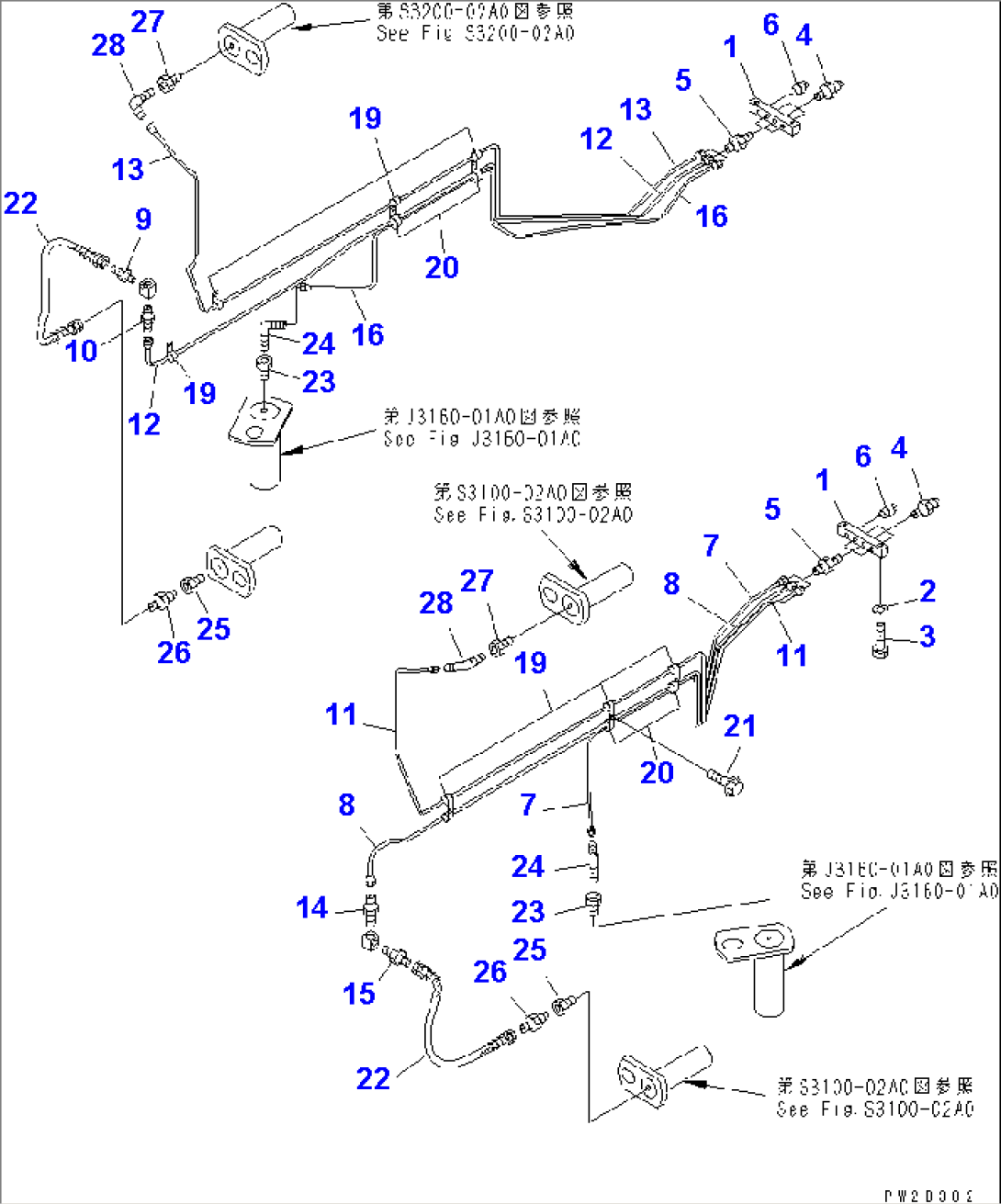

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-52-12281 | JOINT | 1001- | |
| 2 | 01010-80835 | BOLT | 1001- | |
| 3 | 01643-30823 | WASHER | 1001- | |
| 4 | 07020-00000 | FITTING,GREASE | 1001- | |
| 5 | 423-09-12110 | CONNECTOR | 1001- | |
| 6 | 07042-30108 | PLUG | 1001- | |
| 7 | 56B-52-12212 | TUBE | 1001- | |
| 8 | 56B-52-12222 | TUBE | 1001- | |
| 9 | 566-52-43290 | NIPPLE | 1001- | |
| 10 | 423-09-12110 | CONNECTOR | 1001- | |
| 11 | 56B-52-12232 | TUBE | 1001- | |
| 12 | 56B-52-12241 | TUBE | 1001- | |
| 13 | 56B-52-12252 | TUBE | 1001- | |
| 14 | 423-09-12110 | CONNECTOR | 1001- | |
| 15 | 566-52-43290 | NIPPLE | 1001- | |
| 16 | 56B-52-12272 | TUBE | 1001- | |
| 19 | 04434-50608 | CLIP | 1001- | |
| 20 | 04435-50608 | CLIP | 1001- | |
| 21 | 01435-00814 | BOLT | 1001- | |
| 22 | 203-62-22160 | HOSE | 1001- | |
| 23 | 566-52-12210 | NIPPLE | 1001- | |
| 24 | 421-09-12540 | ELBOW | 1001- | |
| 25 | 562-95-13150 | NIPPLE | 1001- | |
| 26 | 421-09-12540 | ELBOW | 1001- | |
| 27 | 562-95-13150 | NIPPLE | 1001- | |
| 28 | 566-52-43290 | NIPPLE | 1001- |
