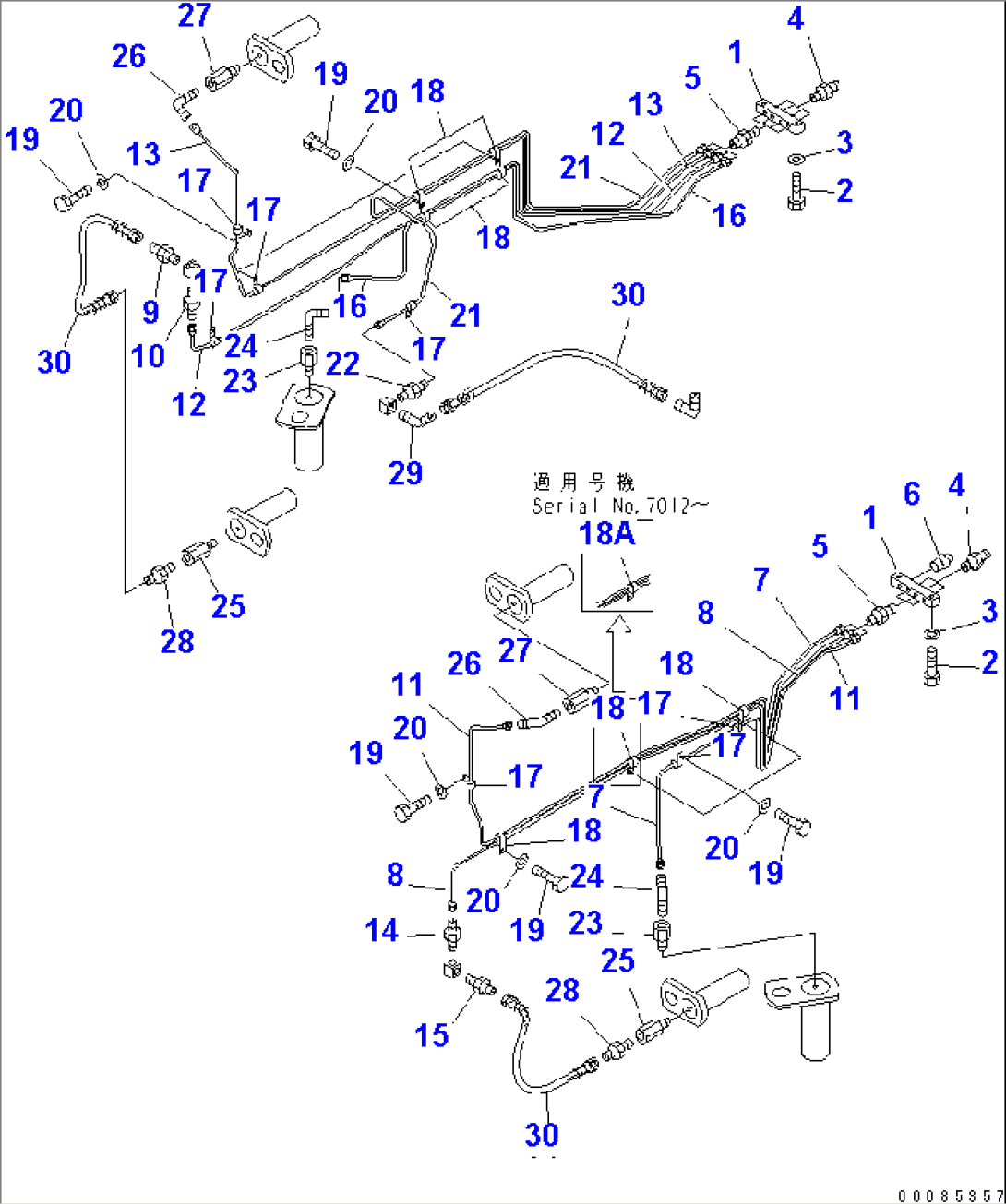

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-52-12281 | JOINT | 7001- | |
| 2 | 01010-80835 | BOLT | 7001- | |
| 3 | 01643-30823 | WASHER | 7001- | |
| 4 | 07020-00000 | FITTING,GREASE | 7001- | |
| 5 | 423-09-12110 | CONNECTOR | 7001- | |
| 6 | 07042-30108 | PLUG | 7001- | |
| 7 | 56B-52-23210 | TUBE | 7012- | |
| 7 | 56B-52-12212 | TUBE | 7001-7011 | |
| 8 | 56B-52-23221 | TUBE | 7012- | |
| 8 | 56B-52-22220 | TUBE | 7001-7011 | |
| 9 | 566-52-43290 | NIPPLE | 7001- | |
| 10 | 423-09-12110 | CONNECTOR | 7001- | |
| 11 | 56B-52-23231 | TUBE | 7012- | |
| 11 | 56B-52-22230 | TUBE | 7001-7011 | |
| 12 | 56B-52-23240 | TUBE | 7012- | |
| 12 | 56B-52-22240 | TUBE | 7001-7011 | |
| 13 | 56B-52-12252 | TUBE | 7001- | |
| 14 | 423-09-12110 | CONNECTOR | 7001- | |
| 15 | 566-52-43290 | NIPPLE | 7001- | |
| 16 | 56B-52-22330 | TUBE | 7001- | |
| 17 | 04434-50610 | CLIP | 7012- | |
| 17 | 04434-50608 | CLIP | 7001-7011 | |
| 18 | 04435-50608 | CLIP | 7012- | |
| 18 | 04435-50608 | CLIP | 7001-7011 | |
| 18A | 04435-50610 | CLIP | 7012- | |
| 19 | 01010-80816 | BOLT | 7012- | |
| 19 | 01010-80816 | BOLT | 7001-7011 | |
| 20 | 01643-30823 | WASHER | 7012- | |
| 20 | 01643-30823 | WASHER | 7001-7011 | |
| 21 | 56B-52-22271 | TUBE | 7001- | |
| 22 | 423-09-12110 | CONNECTOR | 7001- | |
| 23 | 566-52-12210 | NIPPLE | 7001- | |
| 24 | 421-09-12540 | ELBOW | 7001- | |
| 25 | 562-95-13150 | NIPPLE | 7001- | |
| 26 | 421-09-12540 | ELBOW | 7001- | |
| 27 | 562-95-13150 | NIPPLE | 7001- | |
| 28 | 566-52-43290 | NIPPLE | 7001- | |
| 29 | 19M-60-15330 | ELBOW | 7001- | |
| 30 | 203-62-22160 | HOSE | 7001- |
