| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-46-12380 | PIN | 50001- | |
| 2 | 01010-81225 | BOLT | 50001- | |
| 3 | 175-54-34170 | WASHER | 50001- | |
| 4 | 425-46-12310 | SHIM¤ 1.0MM | 50001- | |
| 203-70-44540 | SHIM¤ 0.5MM | 50156- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa500 3 s/n 50001 up
- Main/revolving frame and related parts
- Front frame (steering cylinder mounting pin) (with auto grease)
Поиск по каталогу

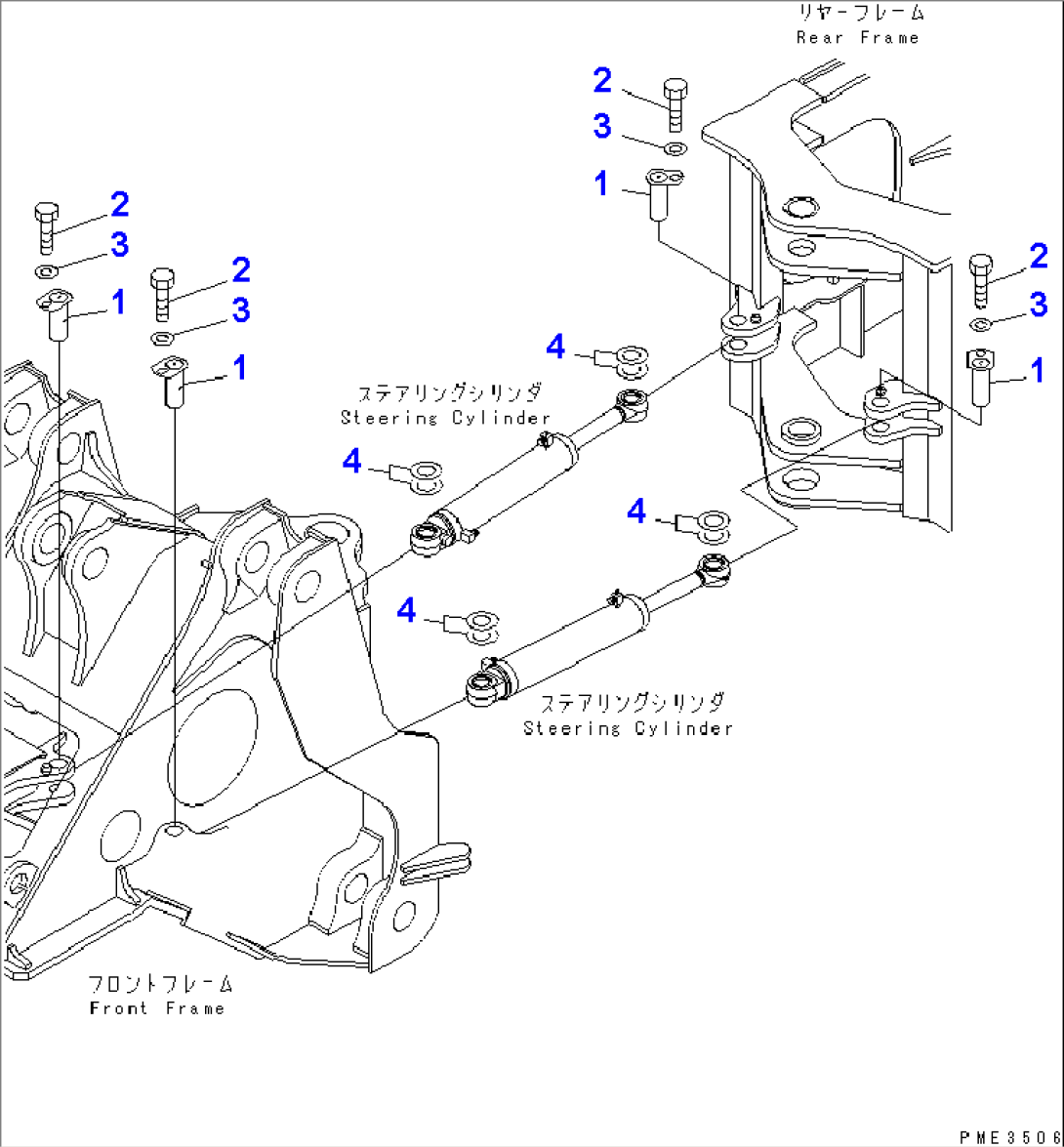

FRONT FRAME (STEERING CYLINDER MOUNTING PIN) (WITH AUTO GREASE)
