| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-46-A1590 | GUARD,TOP | A37001- | |
| 2 | 421-46-A1440 | PLATE | A37001- | |
| 3 | 423-46-A1610 | PLATE | A37001- | |
| 4 | 01435-01020 | BOLT | A37001- | |
| 5 | 423-46-A1310 | BAR,FLAT | A37001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa480 5l s/n a37001 up
- Main/revolving frame and related parts
- Front frame (top guard) (for waste handler)
Поиск по каталогу

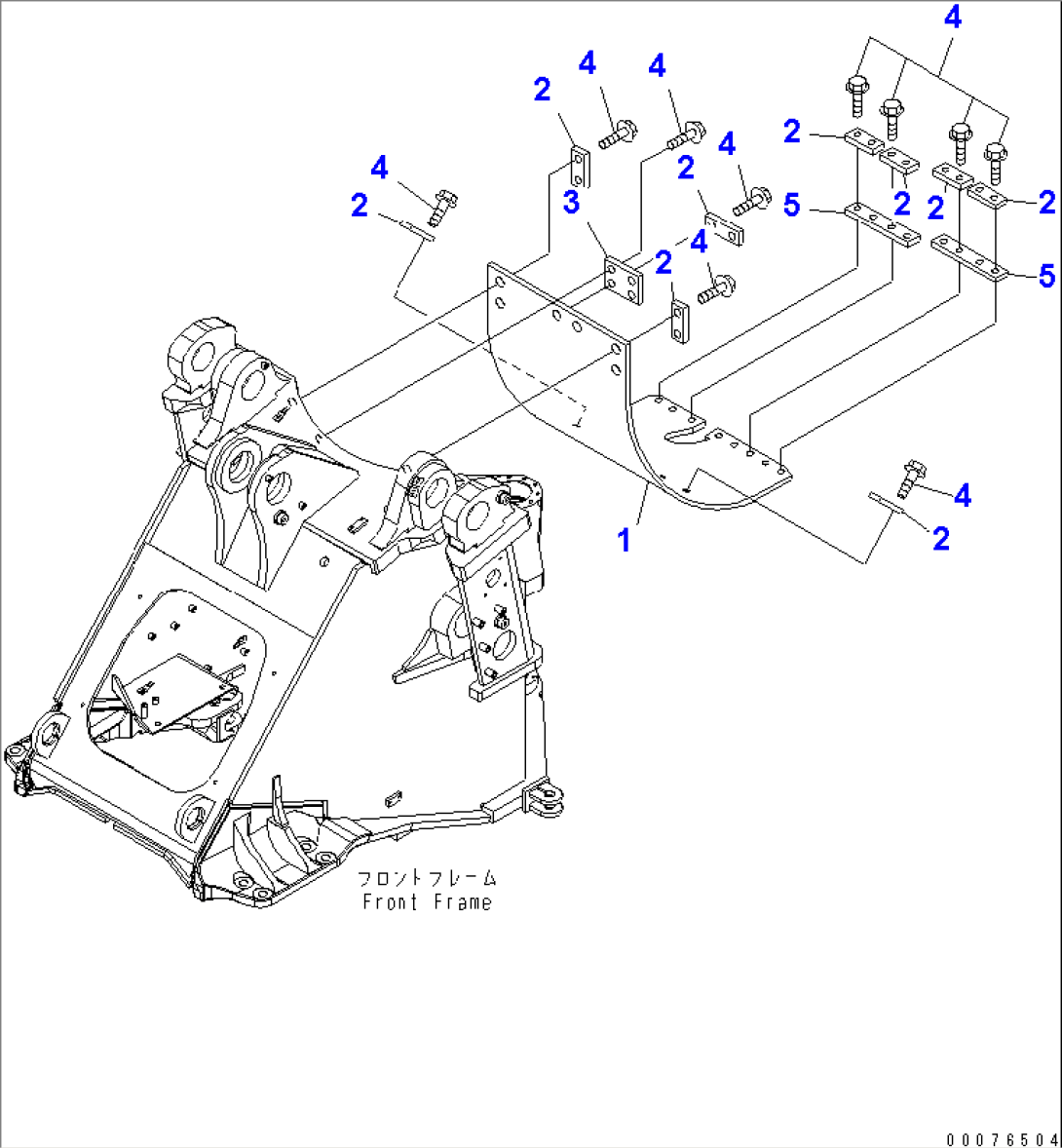

FRONT FRAME (TOP GUARD) (FOR WASTE HANDLER)
