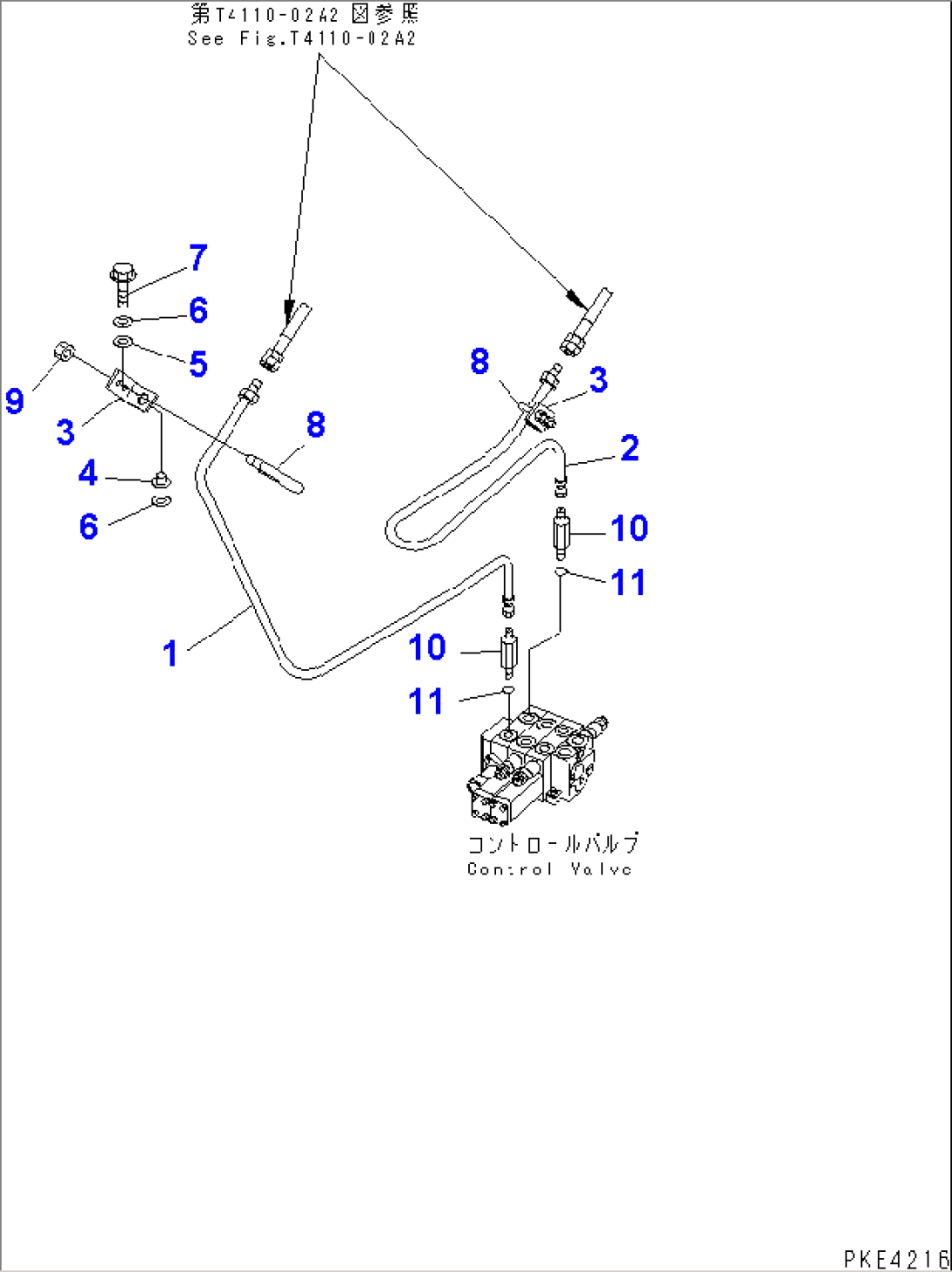

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 415-877-2110 | TUBE,L.H. | 10001-12000 | |
| 2 | 415-877-2120 | TUBE,R.H. | 10001-12000 | |
| 3 | 415-877-2160 | BRACKET | 10001-@ | |
| 4 | 421-62-23350 | CUSHION | 10001-@ | |
| 5 | 421-62-23710 | CUSHION | 10001-@ | |
| 6 | 175-54-34170 | WASHER | 10001-@ | |
| 7 | 01435-01240 | BOLT | 10001-12000 | |
| 8 | 07283-31529 | CLIP | 10001-@ | |
| 9 | 01594-00807 | NUT | 10001-@ | |
| 10 | 415-877-2150 | NIPPLE | 10001-12000 | |
| 11 | 07000-12018 | O-RING | 10001-@ |
