| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-877-2220 | FRAME,FRONT (REWORK) | 53001- | |
| 1 | 01571-01016 | SEAT (WELDED) | 53001- | |
| 1 | \6\ | FRAME,FRONT | 53001- | |
| 2 | 09602-10010 | PLATE, NAME,(LIMITED SUPPLY) | 53001- | |
| 3 | 04418-13060 | SCREW | 53001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa120 3 s/n 53001 up (s4d102e 1)
- Main/revolving frame and related parts
- Front frame (with 3 spool control valve)
Поиск по каталогу

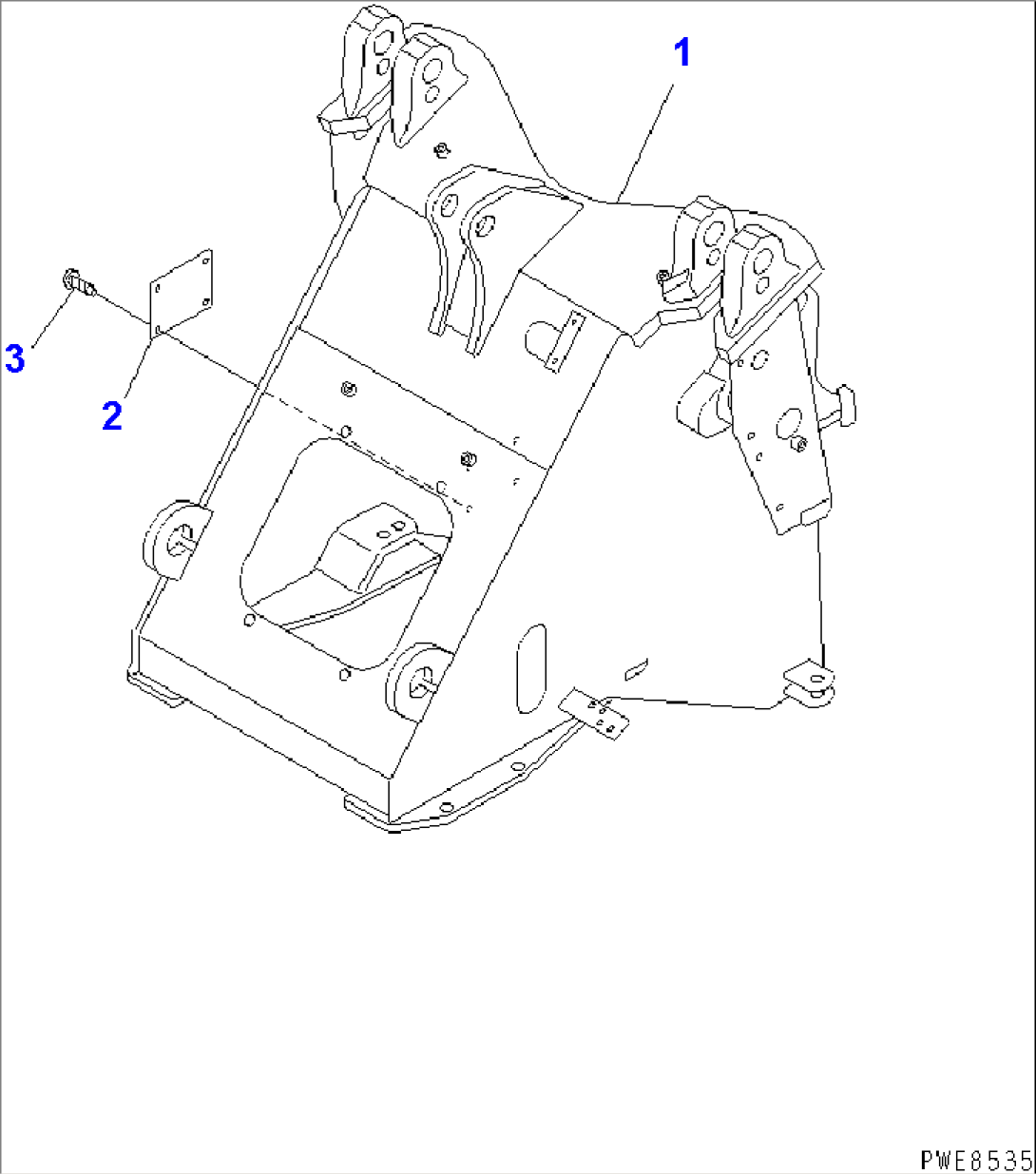

FRONT FRAME (WITH 3-SPOOL CONTROL VALVE)
