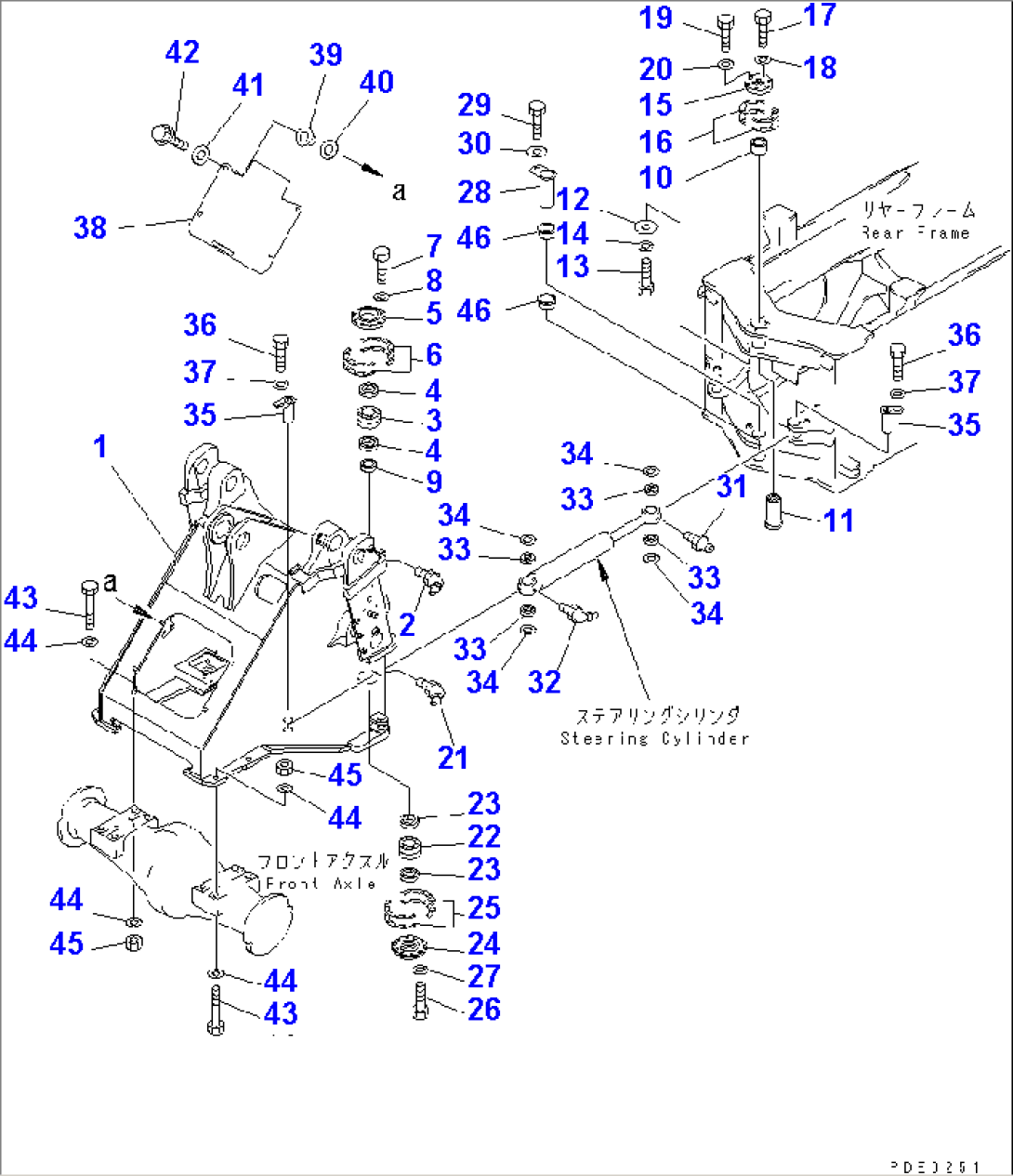

FRONT FRAME (WITH FRONT ATTACHMENT) (WITH 3-SPOOL CONTROL VALVE)(#50001-)

FRONT FRAME (WITH FRONT ATTACHMENT) (WITH 3-SPOOL CONTROL VALVE)(#50001-)
ItemPart No.Part NameQtySerial No.
1424-877-2220FRAME,FRONT50001-
01573-20207SEAT (WELDED)50001-
01571-01016SEAT (WELDED)50001-
424-877-2250PLATE,L.H. (WELDED)50001-
424-877-2260PLATE,R.H. (WELDED)50001-
424-875-1160SEAT (WELDED)50001-
207020-00675FITTING,GREASE50001-
3421-46-11361BEARING50001-
4421-09-11310SEAL,DUST50001-
5421-46-11710RETAINER50001-
6421-46-11371SHIM¤ 0.1MM50001-
421-46-11381SHIM¤ 0.5MM50001-
701010-51240BOLT50001-
801643-31232WASHER50001-
9424-46-11171SPACER50001-
10424-46-11160SPACER50001-
11424-46-11182SHAFT50001-
12419-70-11340PLATE50001-
1301010-51225BOLT50001-
1401643-31232WASHER50001-
15421-46-11421COVER50001-
16421-46-11430SHIM¤ 0.2MM50001-
421-46-11440SHIM¤ 0.5MM50001-
421-46-11450SHIM¤ 1.0MM50001-
1701010-61695BOLT50001-
1801643-31645WASHER50001-
1901010-51250BOLT50001-
2001643-31232WASHER50001-
2107020-00675FITTING,GREASE50001-
22421-46-11361BEARING50001-
2307011-00080SEAL,DUST50001-
24421-46-11470RETAINER50001-
25421-46-11371SHIM¤ 0.1MM50001-
421-46-11381SHIM¤ 0.5MM50001-
2601010-51235BOLT50001-
2701643-31232WASHER50001-
28421-46-11461SHAFT50001-
2901010-51625BOLT50001-
30421-70-11280WASHER50001-
3107020-00000FITTING,GREASE50001-
3207020-00675FITTING,GREASE50001-
33424-09-12310SEAL,DUST50001-
34424-46-12540SHIM¤ 0.5MM50001-
416-70-11350SHIM¤ 1.0MM50001-
35423-46-21180PIN50001-
3601010-51220BOLT50001-
37175-54-34170WASHER50001-
38424-877-2230COVER,FRONT50001-
39415-46-11370SPACER50001-
40415-46-11380CUSHION50001-
4101640-22232WASHER50001-
4201435-01235BOLT50001-
43421-09-12240BOLT50001-
4401643-33080WASHER50001-
4501580-03024NUT50001-
46421-46-12331BUSHING50001-
