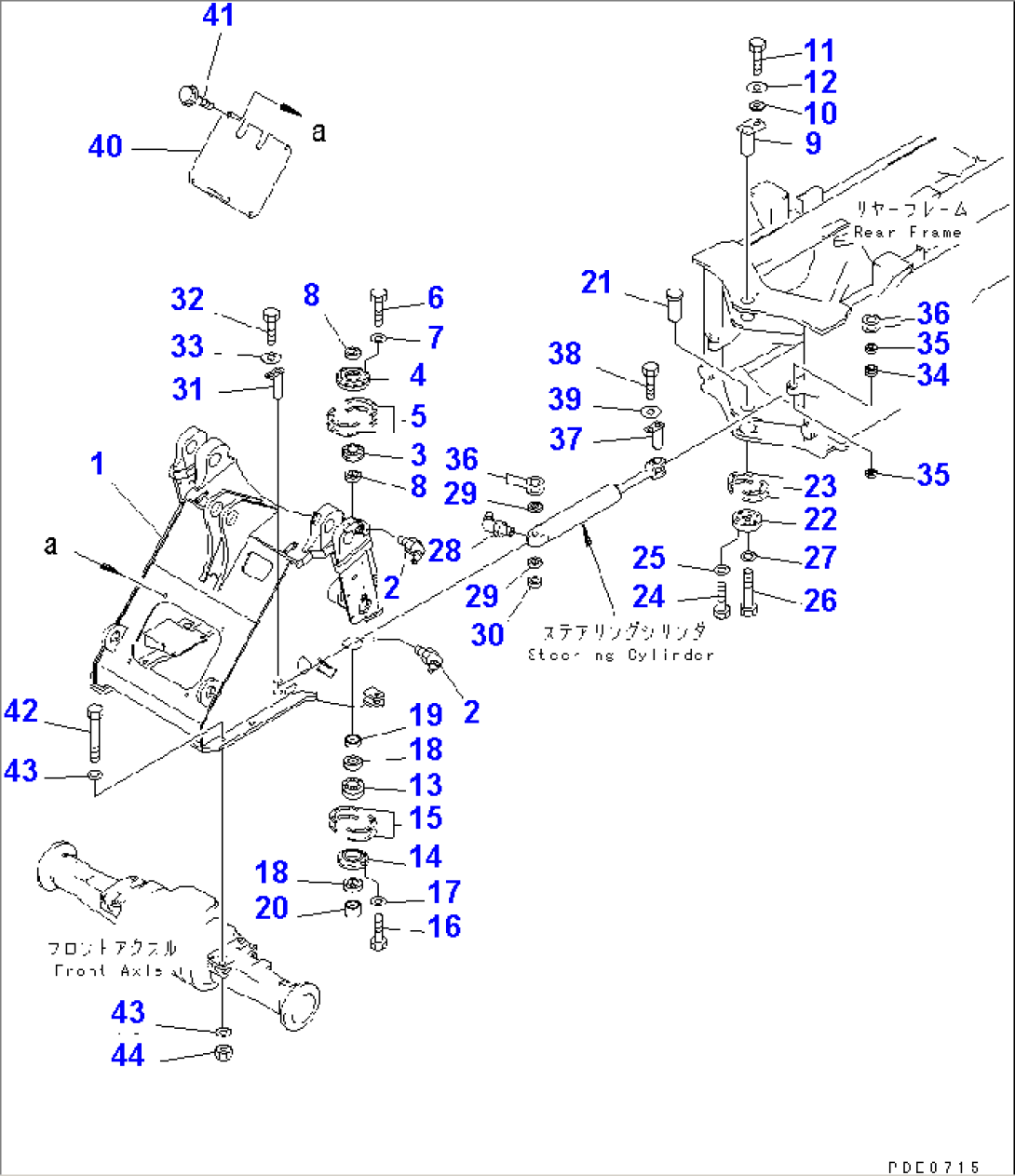

FRONT FRAME (WITH FRONT ATTACHMENT) (WITH 3-SPOOL CONTROL VALVE)(#50001-)

FRONT FRAME (WITH FRONT ATTACHMENT) (WITH 3-SPOOL CONTROL VALVE)(#50001-)
ItemPart No.Part NameQtySerial No.
1\6\FRAME,FRONT50001-
101573-20207SEAT (WELDED)50001-
101573-10207SEAT (WELDED)50001-
1419-877-2130PLATE (WELDED)50001-
207020-00675FITTING,GREASE50001-
3419-46-11360BEARING50001-
4419-46-11350RETAINER50001-
5421-46-11371SHIM, 0.1MM50001-
5421-46-11381SHIM, 0.5MM50001-
601010-51230BOLT50001-
701643-31232WASHER50001-
8419-09-11110SEAL,DUST50001-
9419-46-11330SHAFT50001-
10419-46-11340BUSHING50001-
1101010-51640BOLT50001-
12421-70-11280WASHER50001-
13419-46-11281BEARING50001-
14419-46-11200RETAINER50001-
15419-46-11250SHIM, 0.1MM50001-
15419-46-11260SHIM, 0.5MM50001-
15419-46-11270SHIM, 1.0MM50001-
1601010-51235BOLT50001-
1701643-31232WASHER50001-
18419-46-11230SEAL,DUST50001-
19419-46-11170SPACER50001-
20419-46-11180SPACER50001-
21419-46-23210SHAFT50001-
22419-46-23220COVER50001-
23419-46-11211SHIM, 0.1MM50001-
23419-46-11221SHIM, 0.5MM50001-
2401010-51245BOLT50001-
2501643-31232WASHER50001-
2601010-31695BOLT50001-
2701643-31645WASHER50001-
2807020-00675FITTING,GREASE50001-
29419-09-11120SEAL,DUST50001-
30419-46-12250SPACER50001-
31419-46-12240PIN50001-
3201010-51220BOLT50001-
33175-54-34170WASHER50001-
34419-46-12270BUSHING50001-
35419-09-11120SEAL,DUST50001-
36419-46-12290SHIM, 0.5MM50001-
36419-46-12280SHIM, 1.0MM50001-
37419-46-12260PIN50001-
3801010-51220BOLT50001-
39175-54-34170WASHER50001-
40419-877-2220COVER,FRONT50001-
4101435-01225BOLT50001-
4201011-62445BOLT50001-
4301643-32460WASHER50001-
4401580-02419NUT50001-
