| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 361-877-2223 | FRAME,FRONT | 13001- | |
| 1 | 361-N39-2220 | FRAME, FRONT,(WITH PRESSURE PICK-UP LINE) | 10001- | |
| 2 | 01010-61460 | BOLT | 10001- | |
| 3 | 01643-31445 | WASHER | 10001- | |
| 4 | 01580-01411 | NUT | 10001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa20 2 s/n 10001 up
- Main/revolving frame and related parts
- Front frame (with front attachment)(#13801 )
Поиск по каталогу

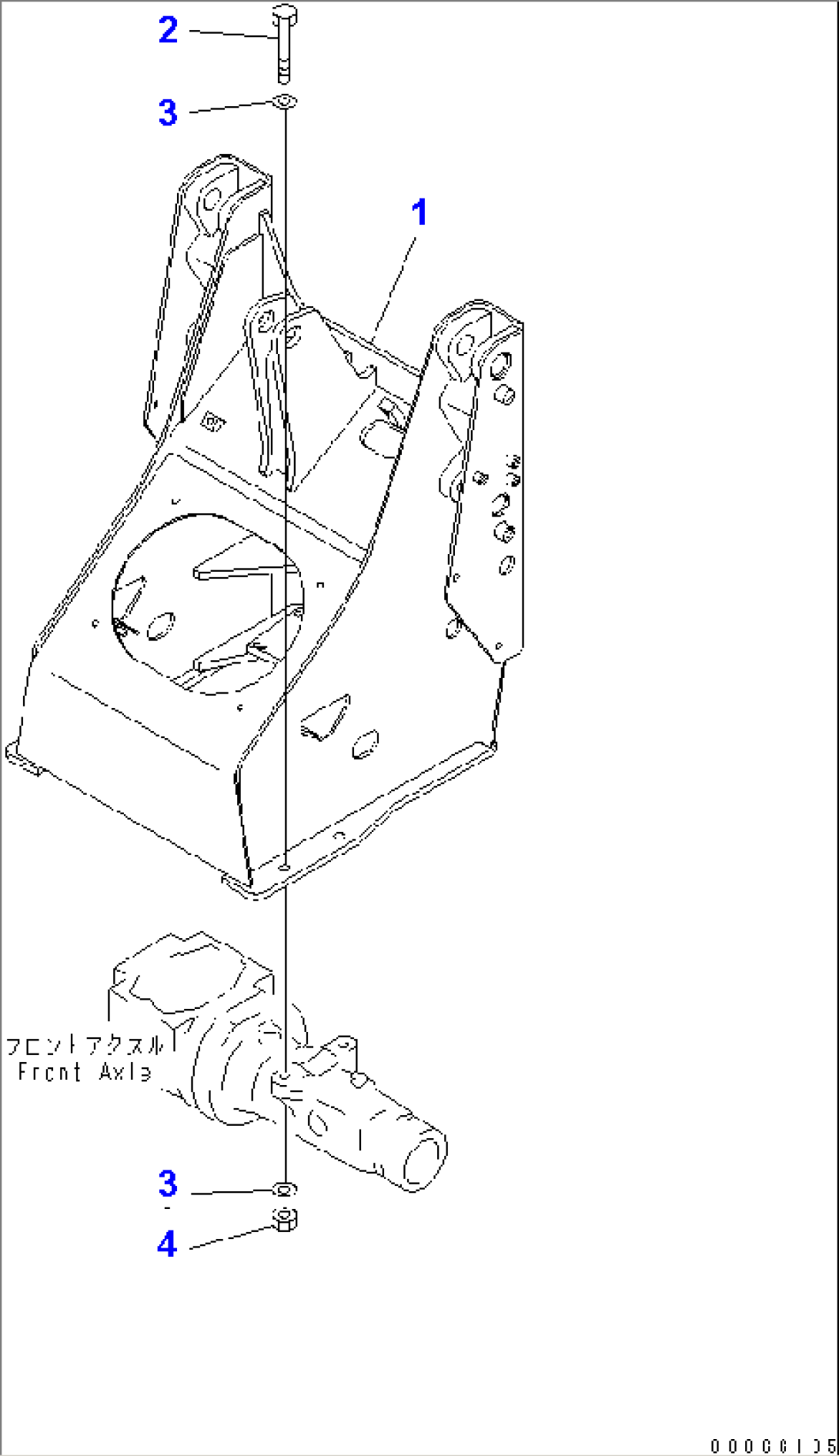

FRONT FRAME (WITH FRONT ATTACHMENT)(#13801-)
