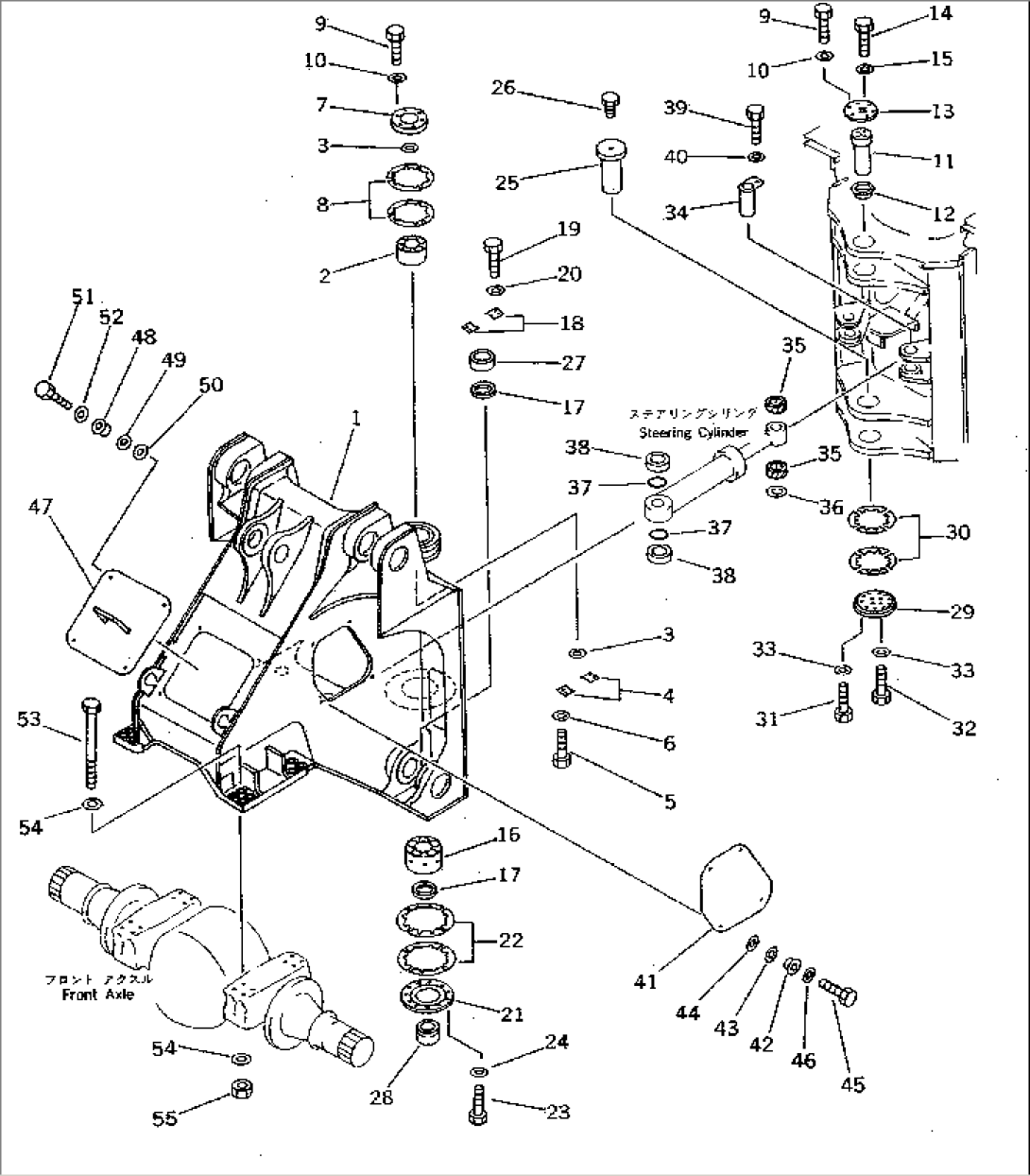

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-46-11118 | FRAME,FRONT | 10052-10499 | |
| 1 | 427-46-11117 | FRAME,FRONT | 10001-10051 | |
| 1 | 427-T88-1150 | FRAME,FRONT (FOR LOAD AND CARRY) | 10001-@ | |
| 2 | 427-46-11130 | BEARING | 10001-@ | |
| 3 | 427-46-11140 | SEAL,DUST | 10001-@ | |
| 4 | 427-46-11150 | PLATE | 10001-@ | |
| 5 | 01010-31025 | BOLT | 10001-@ | |
| 6 | 01643-31032 | WASHER | 10001-@ | |
| 7 | 427-46-11120 | RETAINER | 10001-@ | |
| 8 | 427-46-11170 | SHIM, 0.1MM | 10001-@ | |
| 8 | 427-46-11180 | SHIM, 0.5MM | 10001-@ | |
| 9 | 01010-32070 | BOLT | 10001-@ | |
| 10 | 01643-32060 | WASHER | 10001-@ | |
| 11 | 427-46-11161 | SHAFT | 10001-@ | |
| 12 | 427-46-11440 | BUSHING | 10001-@ | |
| 13 | 427-46-11190 | RETAINER | 10001-@ | |
| 14 | 01010-32065 | BOLT | 10001-@ | |
| 15 | 01643-32060 | WASHER | 10001-@ | |
| 16 | 427-46-11350 | BEARING | 10001-@ | |
| 17 | 427-46-11340 | SEAL,DUST | 10001-@ | |
| 18 | 427-46-11330 | PLATE | 10001-@ | |
| 19 | 01010-31025 | BOLT | 10001-@ | |
| 20 | 01643-31032 | WASHER | 10001-@ | |
| 21 | 427-46-11380 | RETAINER | 10001-@ | |
| 22 | 427-46-11360 | SHIM, 0.1MM | 10001-@ | |
| 22 | 427-46-11370 | SHIM, 0.5MM | 10001-@ | |
| 23 | 01010-32485 | BOLT | 10001-@ | |
| 24 | 01643-32460 | WASHER | 10001-@ | |
| 25 | 427-46-11310 | SHAFT | 10001-@ | |
| 26 | 01010-32450 | BOLT | 10001-@ | |
| 27 | 427-46-11320 | BUSHING | 10001-@ | |
| 28 | 427-46-11390 | BUSHING | 10001-@ | |
| 29 | 427-46-11430 | CAP | 10001-@ | |
| 30 | 427-46-11410 | SHIM, 0.1MM | 10001-@ | |
| 30 | 427-46-11420 | SHIM, 0.5MM | 10001-@ | |
| 31 | 01010-32480 | BOLT | 10001-@ | |
| 32 | 01011-32420 | BOLT | 10001-@ | |
| 33 | 01643-32460 | WASHER | 10001-@ | |
| 34 | 427-46-12240 | PIN | 10001-10499 | |
| 35 | 421-09-11320 | SEAL,DUST | 10001-@ | |
| 36 | 421-70-11331 | SHIM, 1.0MM | 10001-@ | |
| 37 | 07000-02110 | O-RING | 10001-@ | |
| 38 | 427-46-12250 | SPACER | 10001-@ | |
| 39 | 01010-51630 | BOLT | 10001-10499 | |
| 40 | 421-70-11280 | WASHER | 10001-@ | |
| 41 | 427-46-11512 | PLATE | 10001-@ | |
| 42 | 415-46-11370 | SPACER | 10001-@ | |
| 43 | 415-46-11380 | CUSHION | 10001-@ | |
| 44 | 01640-22440 | WASHER | 10001-@ | |
| 44 | (\2\01640-22232) | WASHER | (10001-.) | |
| 45 | 01435-01250 | BOLT | 10501-@ | |
| 45 | \0\01010-51255 | BOLT | 10001-10499 | |
| 46 | 01643-31232 | WASHER | 10001-10499 | |
| 47 | 427-46-11521 | COVER | 10001-@ | |
| 48 | 427-54-11860 | SPACER | 10001-@ | |
| 48 | (\2\415-46-11370) | SPACER | (10001-.) | |
| 49 | 415-46-11380 | CUSHION | 10001-@ | |
| 50 | 01640-22232 | WASHER | 10001-@ | |
| 51 | 01010-51255 | BOLT | 10001-10499 | |
| 52 | 01643-31232 | WASHER | 10001-10499 | |
| 53 | 427-46-11451 | BOLT | 10001-@ | |
| 54 | 01643-33990 | WASHER | 10001-@ | |
| 55 | 01580-03931 | NUT | 10001-@ |
