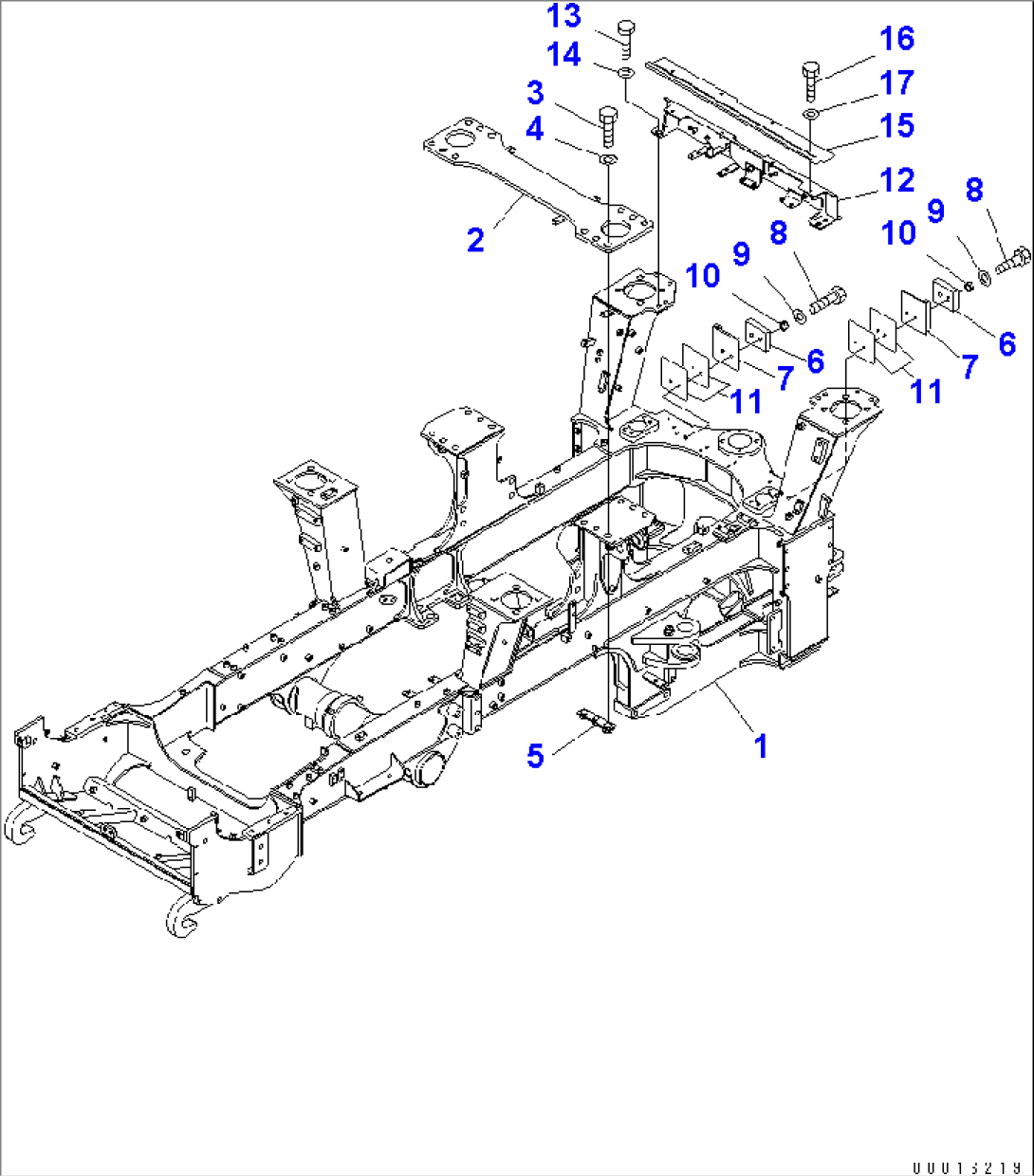

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56D-46-11302 | FRAME | 1033- | |
| 2 | 56D-46-11130 | CROSS | 1001- | |
| 3 | 01010-82470 | BOLT | 1001- | |
| 4 | 01643-32460 | WASHER | 1001- | |
| 5 | 56D-46-11220 | SEAT | 1001- | |
| 6 | 56C-46-11611 | BUMPER | 1001- | |
| 7 | 56B-46-11650 | BRACKET | 1033- | |
| 8 | 07372-21250 | BOLT | 1033- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 424-54-14230 | SPACER | 1001- | |
| 11 | 56C-46-11621 | SHIM | 1033- | |
| 56C-46-11631 | SHIM | 1033- | ||
| 12 | 56D-46-11565 | BRACKET | 1001- | |
| 13 | 01010-81640 | BOLT | 1001- | |
| 14 | 01643-31645 | WASHER | 1001- | |
| 15 | 56D-46-11232 | COVER | 1033- | |
| 16 | 01010-81020 | BOLT | 1001- | |
| 17 | 01643-31032 | WASHER | 1001- |
