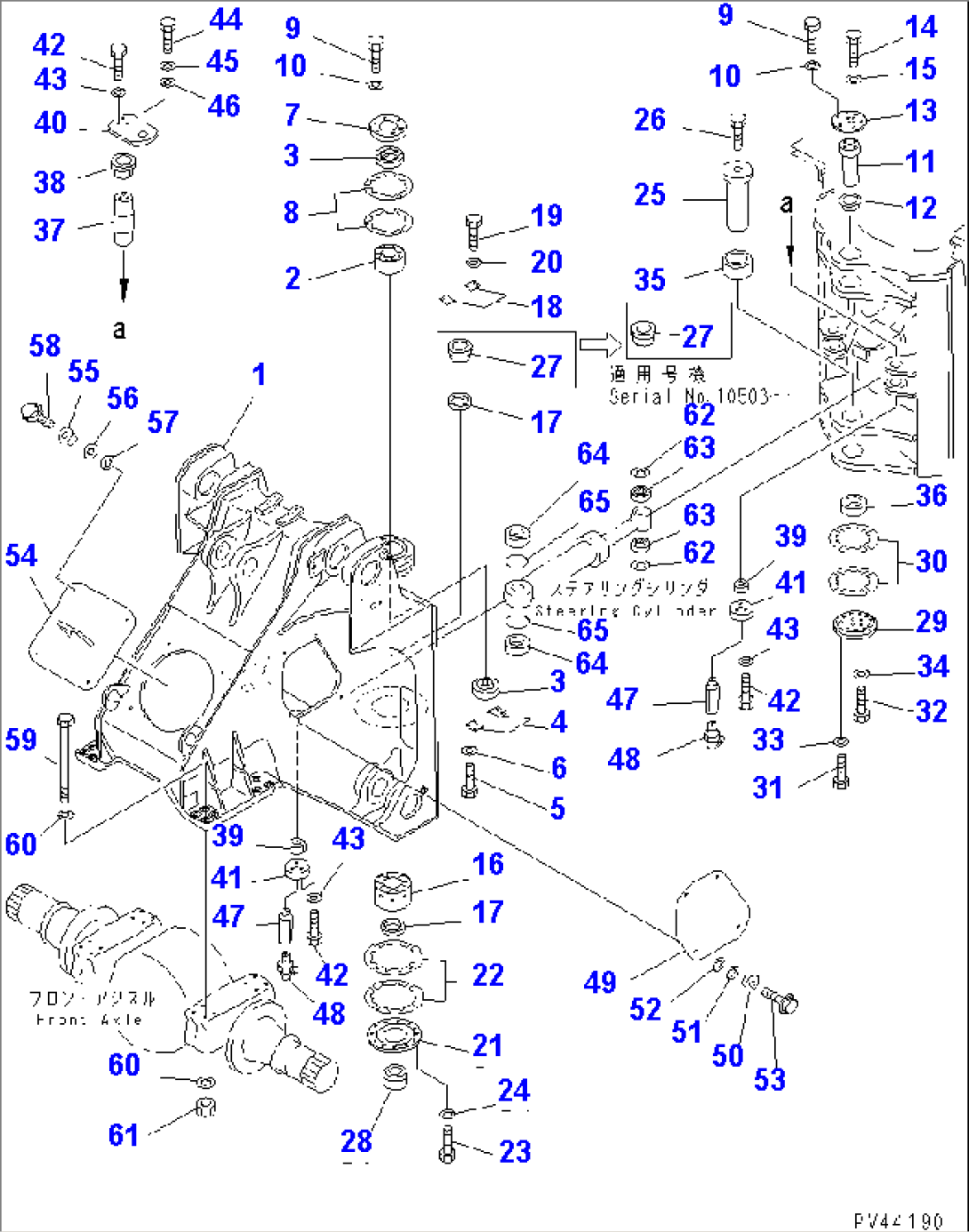

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-46-11612 | FRAME,FRONT | 10635- | |
| 1 | 427-46-11611 | FRAME,FRONT | 10548-10634 | |
| 1 | \0\427-46-11610 | FRAME,FRONT | 10501-10547 | |
| 1 | 427-T88-1150 | FRAME,FRONT (FOR LOAD AND CARRY) | 10001- | |
| 1 | 427-S33-2840 | FRAME,FRONT (FOR JOY STICK STEERING) | 10501- | |
| 2 | 427-46-11130 | BEARING | 10001- | |
| 3 | 427-46-11140 | SEAL,DUST | 10001- | |
| 4 | 427-46-11150 | PLATE | 10001- | |
| 5 | 01010-61025 | BOLT | 10001- | |
| 6 | 01643-31032 | WASHER | 10001- | |
| 7 | 427-46-11120 | RETAINER | 10001- | |
| 8 | 427-46-11170 | SHIM, 0.1MM | 10001- | |
| 8 | 427-46-11180 | SHIM, 0.5MM | 10001- | |
| 9 | 01010-62070 | BOLT | 10001- | |
| 10 | 01643-32060 | WASHER | 10001- | |
| 11 | 427-46-11161 | SHAFT | 10001- | |
| 12 | 427-46-11440 | BUSHING | 10001- | |
| 13 | 427-46-11190 | RETAINER | 10001- | |
| 14 | 01010-62065 | BOLT | 10001- | |
| 15 | 01643-32060 | WASHER | 10001- | |
| 16 | 427-46-11350 | BEARING | 10001- | |
| 17 | 427-46-11340 | SEAL,DUST | 10001- | |
| 18 | 427-46-11330 | PLATE | 10001- | |
| 19 | 01010-61025 | BOLT | 10001- | |
| 20 | 01643-31032 | WASHER | 10001- | |
| 21 | 427-46-11380 | RETAINER | 10001- | |
| 22 | 427-46-11360 | SHIM, 0.1MM | 10001- | |
| 22 | 427-46-11370 | SHIM, 0.5MM | 10001- | |
| 23 | 01010-62485 | BOLT | 10001- | |
| 24 | 01643-32460 | WASHER | 10001- | |
| 25 | 427-46-11312 | SHAFT | 10530- | |
| 25 | 427-46-11311 | SHAFT | 10507-10529 | |
| 25 | 427-46-11310 | SHAFT | 10506-10506 | |
| 25 | 427-46-11311 | SHAFT | 10505-10505 | |
| 25 | 427-46-11310 | SHAFT | 10504-10504 | |
| 25 | 427-46-11311 | SHAFT | 10502-10503 | |
| 25 | 427-46-11310 | SHAFT | 10001-10501 | |
| 26 | 01010-63075 | BOLT | 10503- | |
| 26 | 01010-62450 | BOLT | 10001-10502 | |
| 27 | 427-46-11321 | BUSHING | 10507- | |
| 27 | 427-46-11320 | BUSHING | 10506-10506 | |
| 27 | 427-46-11321 | BUSHING | 10505-10505 | |
| 27 | 427-46-11320 | BUSHING | 10504-10504 | |
| 27 | 427-46-11321 | BUSHING | 10502-10503 | |
| 27 | 427-46-11320 | BUSHING | 10001-10501 | |
| 28 | 427-46-11391 | BUSHING | 10507- | |
| 28 | 427-46-11390 | BUSHING | 10506-10506 | |
| 28 | 427-46-11391 | BUSHING | 10505-10505 | |
| 28 | 427-46-11390 | BUSHING | 10504-10504 | |
| 28 | 427-46-11391 | BUSHING | 10502-10503 | |
| 28 | 427-46-11390 | BUSHING | 10001-10501 | |
| 29 | 427-46-11431 | RETAINER | 10503- | |
| 29 | 427-46-11430 | CAP | 10001-10502 | |
| 30 | 427-46-11411 | SHIM, 0.1MM | 10503- | |
| 30 | 427-46-11410 | SHIM, 0.1MM | 10001-10502 | |
| 30 | 427-46-11421 | SHIM, 0.5MM | 10503- | |
| 30 | 427-46-11420 | SHIM, 0.5MM | 10001-10502 | |
| 31 | 01010-62495 | BOLT | 10507- | |
| 31 | 01010-32480 | BOLT | 10506-10506 | |
| 31 | 01010-62495 | BOLT | 10505-10505 | |
| 31 | 01010-32480 | BOLT | 10504-10504 | |
| 31 | 01010-62495 | BOLT | 10502-10503 | |
| 31 | 01010-32480 | BOLT | 10001-10501 | |
| 32 | 01011-63065 | BOLT | 10503- | |
| 32 | 01011-62420 | BOLT | 10001-10502 | |
| 33 | 01643-32460 | WASHER | 10503- | |
| 33 | 01643-32460 | WASHER | 10001-10502 | |
| 34 | 01643-33080 | WASHER | 10503- | |
| 35 | 427-46-11480 | BUSHING | 10507- | |
| 35 | 427-46-11480 | BUSHING | 10505-10505 | |
| 35 | 427-46-11480 | BUSHING | 10502-10503 | |
| 36 | 427-46-11490 | BUSHING | 10507- | |
| 36 | 427-46-11490 | BUSHING | 10505-10505 | |
| 36 | 427-46-11490 | BUSHING | 10502-10503 | |
| 37 | 427-46-12410 | SHAFT | 10501- | |
| 38 | 427-46-12440 | BUSHING | 10501- | |
| 39 | 427-46-12450 | BUSHING | 10501- | |
| 40 | 427-46-12420 | PLATE | 10501- | |
| 41 | 427-46-12430 | PLATE | 10501- | |
| 42 | 01010-81475 | BOLT | 10501- | |
| 43 | 01643-31445 | WASHER | 10501- | |
| 44 | 01010-81635 | BOLT | 10501- | |
| 45 | 421-70-11280 | WASHER | 10001- | |
| 46 | 01643-31645 | WASHER | 10501- | |
| 47 | 6141-55-5630 | NIPPLE | 10501- | |
| 48 | 07020-00900 | FITTING,GREASE | 10501- | |
| 49 | 427-46-11512 | PLATE | 10001- | |
| 50 | 415-46-11370 | SPACER | 10001- | |
| 51 | 415-46-11380 | CUSHION | 10001- | |
| 52 | 01640-22440 | WASHER | 10001- | |
| 53 | 01435-01250 | BOLT | 10501- | |
| 54 | 427-46-11521 | COVER | 10001- | |
| 55 | 427-54-11860 | SPACER | 10001- | |
| 56 | 415-46-11380 | CUSHION | 10001- | |
| 57 | 01640-22232 | WASHER | 10001- | |
| 58 | 01435-01250 | BOLT | 10501- | |
| 59 | 427-46-11452 | BOLT | 10671- | |
| 59 | \1\427-46-11451 | BOLT | 10001-10670 | |
| 60 | 01643-33990 | WASHER | 10001- | |
| 61 | 01580-03931 | NUT | 10001- | |
| 62 | 421-70-11331 | SHIM, 1.0MM | 10001- | |
| 63 | 421-09-11320 | SEAL,DUST | 10001- | |
| 64 | 427-46-12550 | SPACER | 10001- | |
| 65 | 07000-12110 | O-RING | 10001- |
