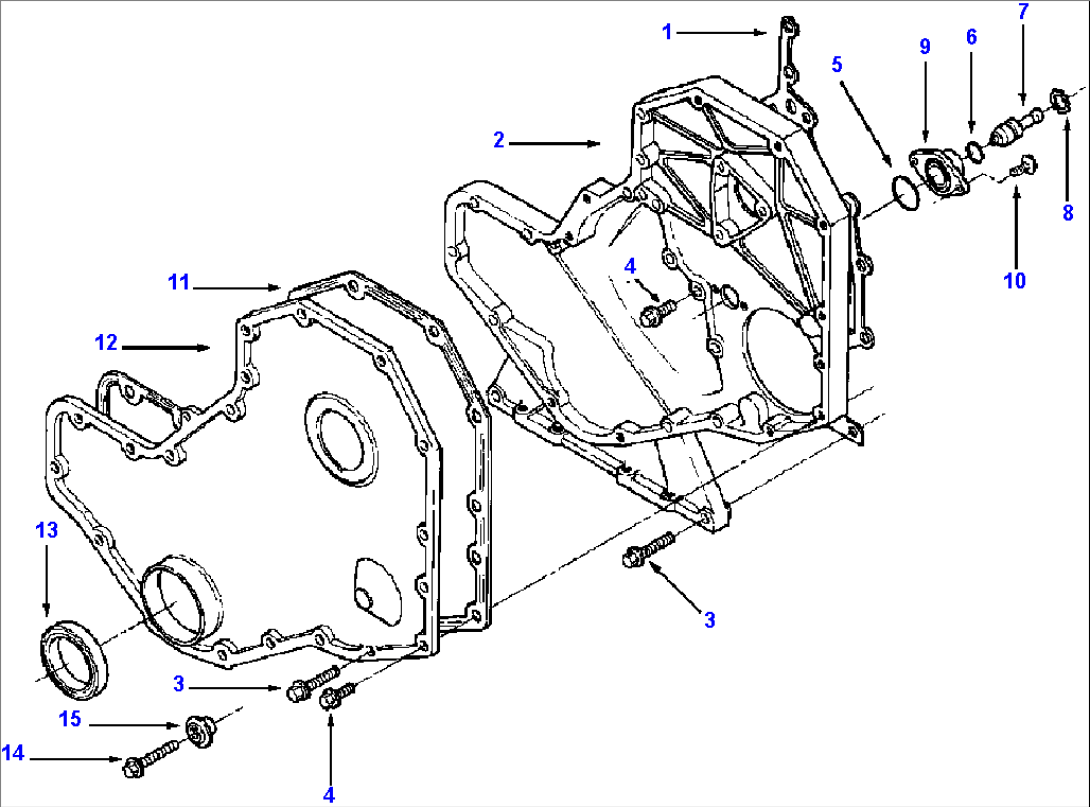

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1240 382 H2 | GASKET, GEAR HOUSING | ||
| 2 | 1242 027 H1 | HOUSING, GEAR | ||
| 3 | 6736-21-3210 | BOLT (M8x1.25x30) | ||
| 4 | 1304 664 H1 | BOLT | ||
| 5 | 1241 284 H2 | SEAL, RECTANGULAR RING | ||
| 1258 943 H91 | HOUSING, TIMING PIN | |||
| 6 | 6732-21-3870 | O-RING | ||
| 7 | 6732-21-3140 | PIN, TIMING | ||
| 8 | 6732-21-3150 | RING, RETAINING | ||
| 9 | 1240 360 H1 | HOUSING, TIMING PIN | ||
| 10 | 6732-21-3160 | BOLT (M5x0.80x17) | ||
| 11 | 1241 652 H1 | GASKET, GEAR COVER | ||
| 1294 346 H91 | COVER, GEAR | |||
| 12 | 6732-21-3310 | COVER, GEAR | ||
| 13 | 1240 674 H1 | FRONT SEAL SERVICE KIT | ||
| 14 | 1258 941 H1 | BOLT (M8x1.25x60) | ||
| 15 | 1258 942 H1 | RETAINER, BELT |
