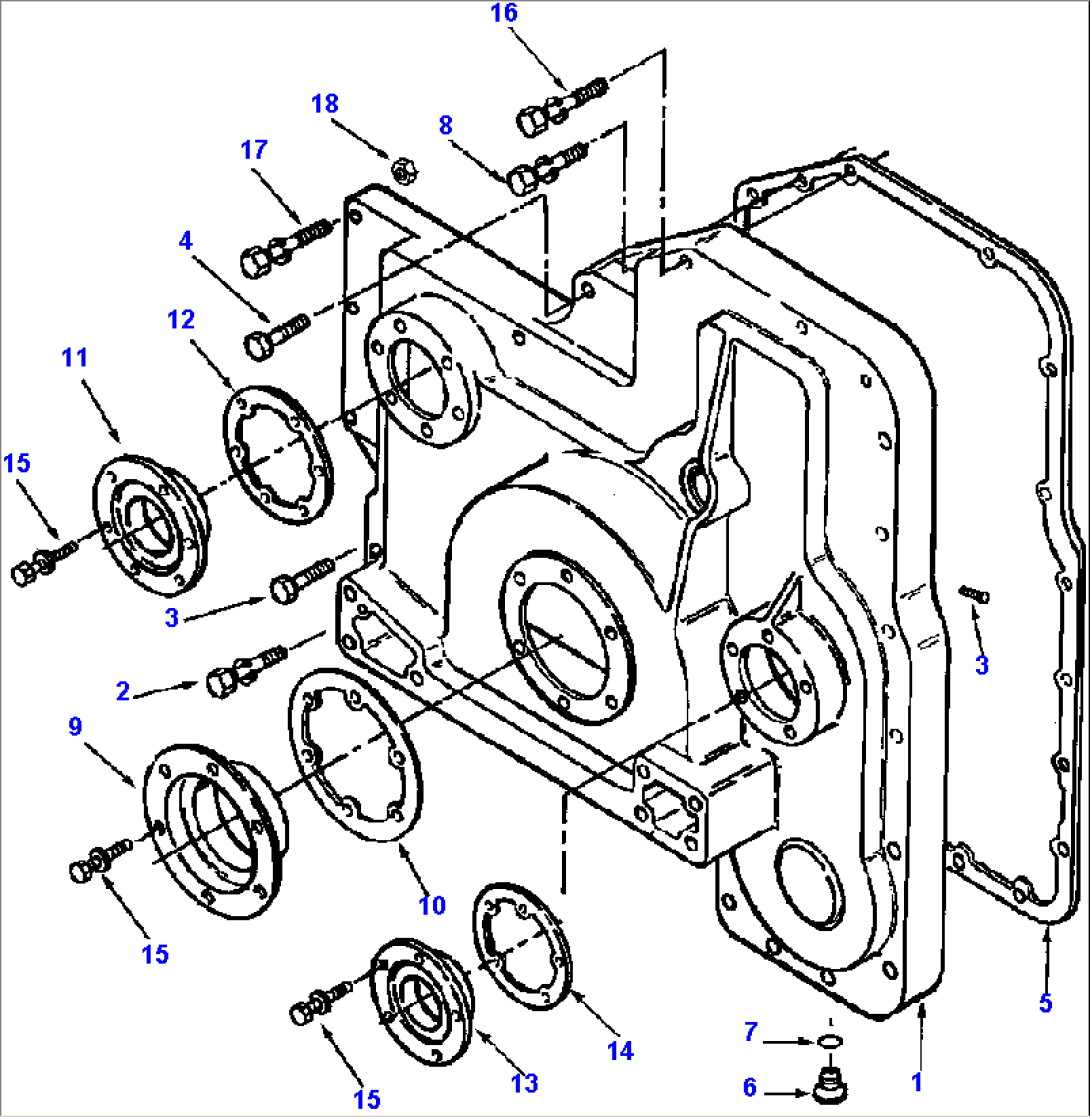

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1246 202 H1 | COVER, GEAR | ||
| 2 | 1246 161 H1 | BOLT, W/WASHER | ||
| 3 | 1294 003 H1 | SCREW, DRIVE | ||
| 4 | 1246 204 H1 | BOLT | ||
| 5 | 1241 714 H1 | GASKET, GEAR COVER | ||
| 1246 118 H91 | PLUG, THREADED | |||
| 6 | (NSS) | PLUG, THREADED | ||
| 7 | 1246 119 H1 | O-RING | ||
| 8 | 1246 199 H1 | BOLT, W/WASHER | ||
| 1246 215 H2 | KIT, OIL SEAL | |||
| 9 | (NSS) | SEAL, OIL | ||
| 10 | 1246 210 H1 | GASKET, CARRIER | ||
| 1246 213 H2 | KIT, OIL SEAL | |||
| 11 | (NSS) | SEAL, OIL | ||
| 12 | 1246 211 H1 | GASKET, CARRIER | ||
| 1246 214 H1 | KIT, OIL SEAL | |||
| 13 | (NSS) | SEAL, OIL | ||
| 14 | 1246 212 H1 | GASKET, CARRIER | ||
| 15 | 1246 216 H1 | BOLT, W/WASHER | ||
| 16 | 1246 217 H1 | BOLT, W/WASHER | ||
| 17 | 1294 028 H1 | BOLT, W/WASHER | ||
| 18 | 1246 179 H1 | NUT, REGULAR HEXAGON |
