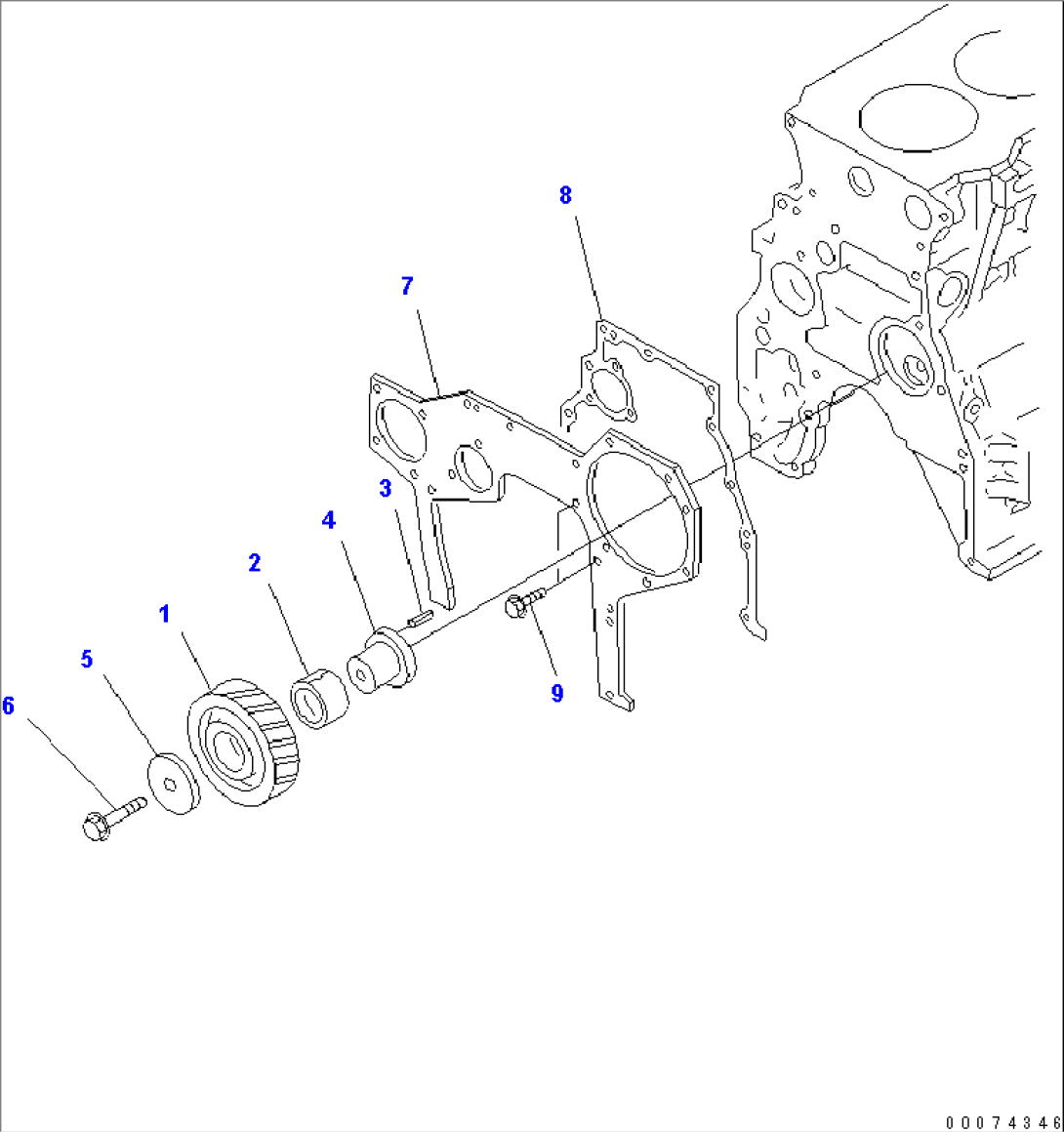

| Item | Part No. | Part Name | Qty | Serial No. |
| 6206-31-6301 | IDLER GEAR ASSEMBLY | 502132- | ||
| 1 | \6\ | GEAR, IDLER | 502132- | |
| 2 | 6204-31-6341 | BUSHING | 502132- | |
| 3 | 04025-00512 | PIN, SPRING | 502132- | |
| 4 | 6204-31-6331 | SHAFT | 502132- | |
| 5 | 6204-31-6350 | WASHER | 502132- | |
| 6 | 01435-01270 | BOLT | 502132- | |
| 7 | 6204-21-3240 | PLATE | 502132- | |
| 8 | 6206-21-3840 | GASKET | 502132- | |
| 9 | 01435-00816 | BOLT | 502132- |
