| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-54-72511 | Bracket | 90023- | |
| 2 | 14X-54-72611 | Cover | 90023- | |
| 3 | 01010-81020 | Bolt | 90023- | |
| 4 | 01643-31032 | Washer | 90023- | |
| 5 | 14X-X11-4971 | Bracket | 90023- | |
| 6 | 01010-81230 | Bolt | 90023- | |
| 7 | 01643-31232 | Washer | 90023- |
- Главная
- Каталог запчастей
- Бульдозеры
- D65exi 18 s/n 90023 up
- Guards and covers
- Front guard, hood support, rear side (#90023 )
Поиск по каталогу

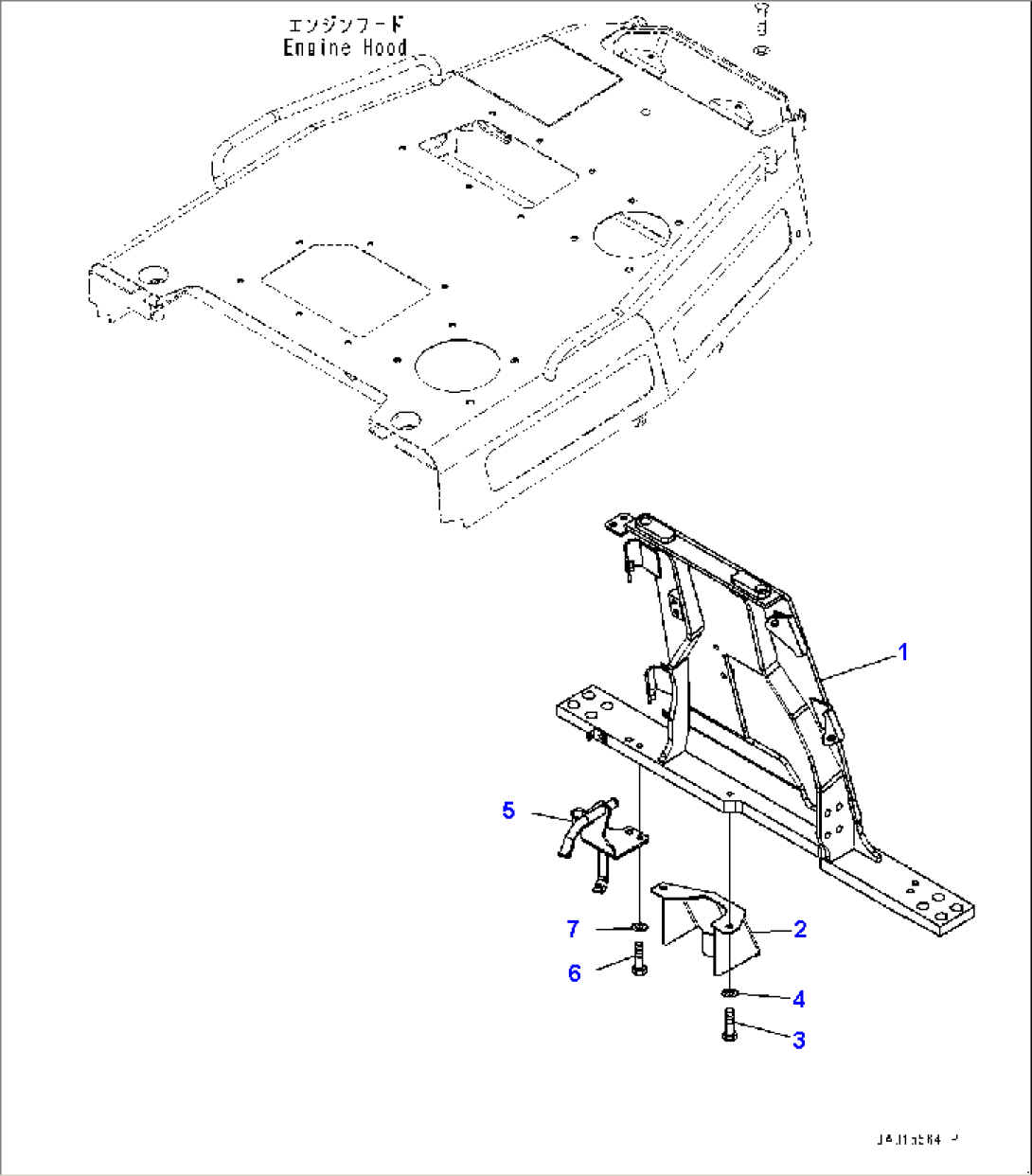

Front Guard, Hood Support, Rear Side (#90023-)
