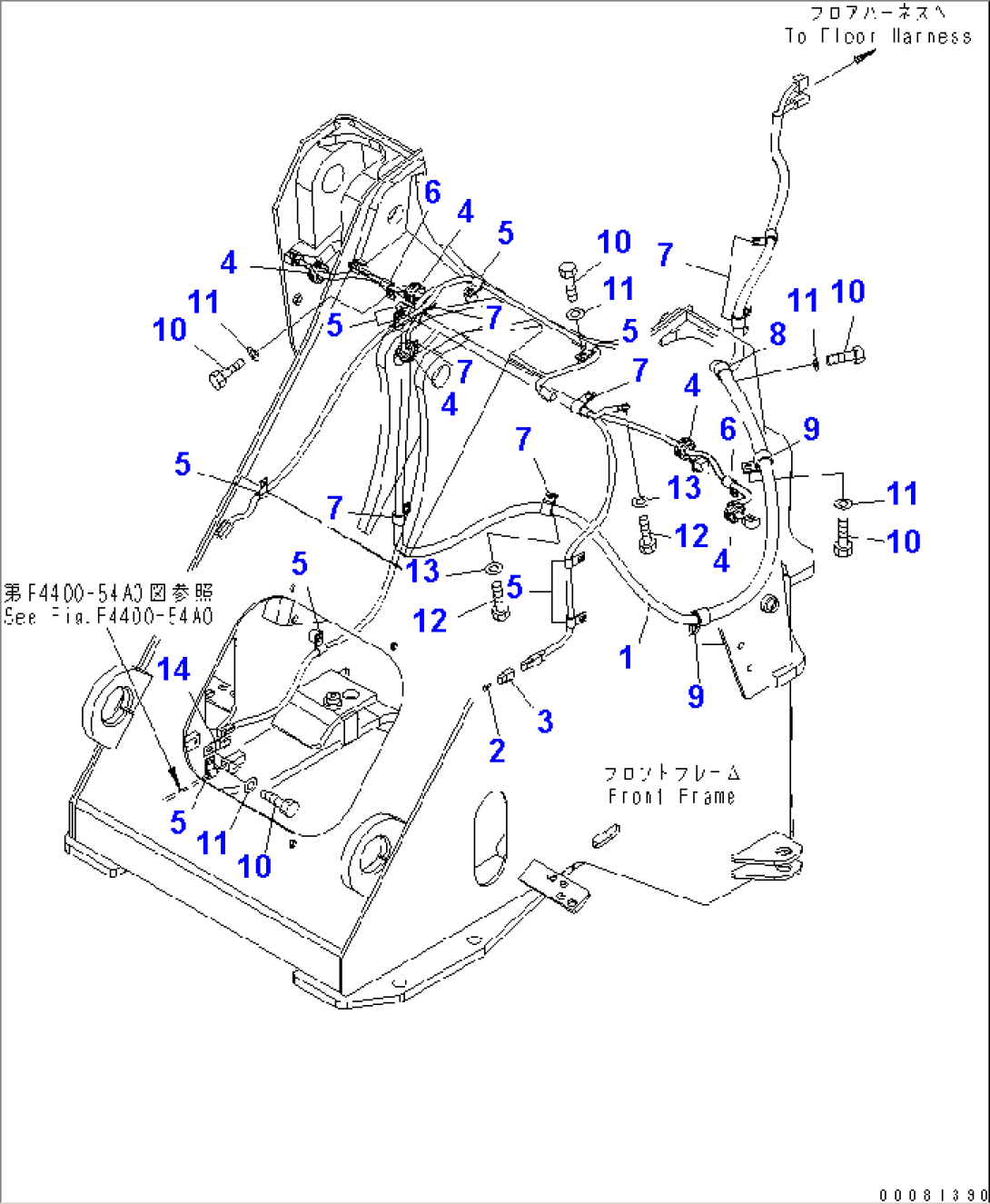

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-06-32162 | WIRING HARNESS | 71529- | |
| 1 | 416-06-32161 | WIRING HARNESS | 65061-71528 | |
| 2 | 08191-00770 | PLUG | 65061- | |
| 3 | 08192-22100 | CONNECTOR | 65061- | |
| 4 | 418-06-12430 | GROMMET | 65061- | |
| 5 | 04434-51012 | CLIP | 65061- | |
| 6 | 04434-51412 | CLIP | 65061- | |
| 7 | 04434-51712 | CLIP | 65061- | |
| 8 | 04434-52312 | CLIP | 65061- | |
| 9 | 04434-52512 | CLIP | 65061- | |
| 10 | 01010-81020 | BOLT | 65061- | |
| 11 | 01643-31032 | WASHER | 65061- | |
| 12 | 01010-81016 | BOLT | 65061- | |
| 13 | 01643-31032 | WASHER | 65061- | |
| 14 | 08193-21012 | CLIP | 65061- |
