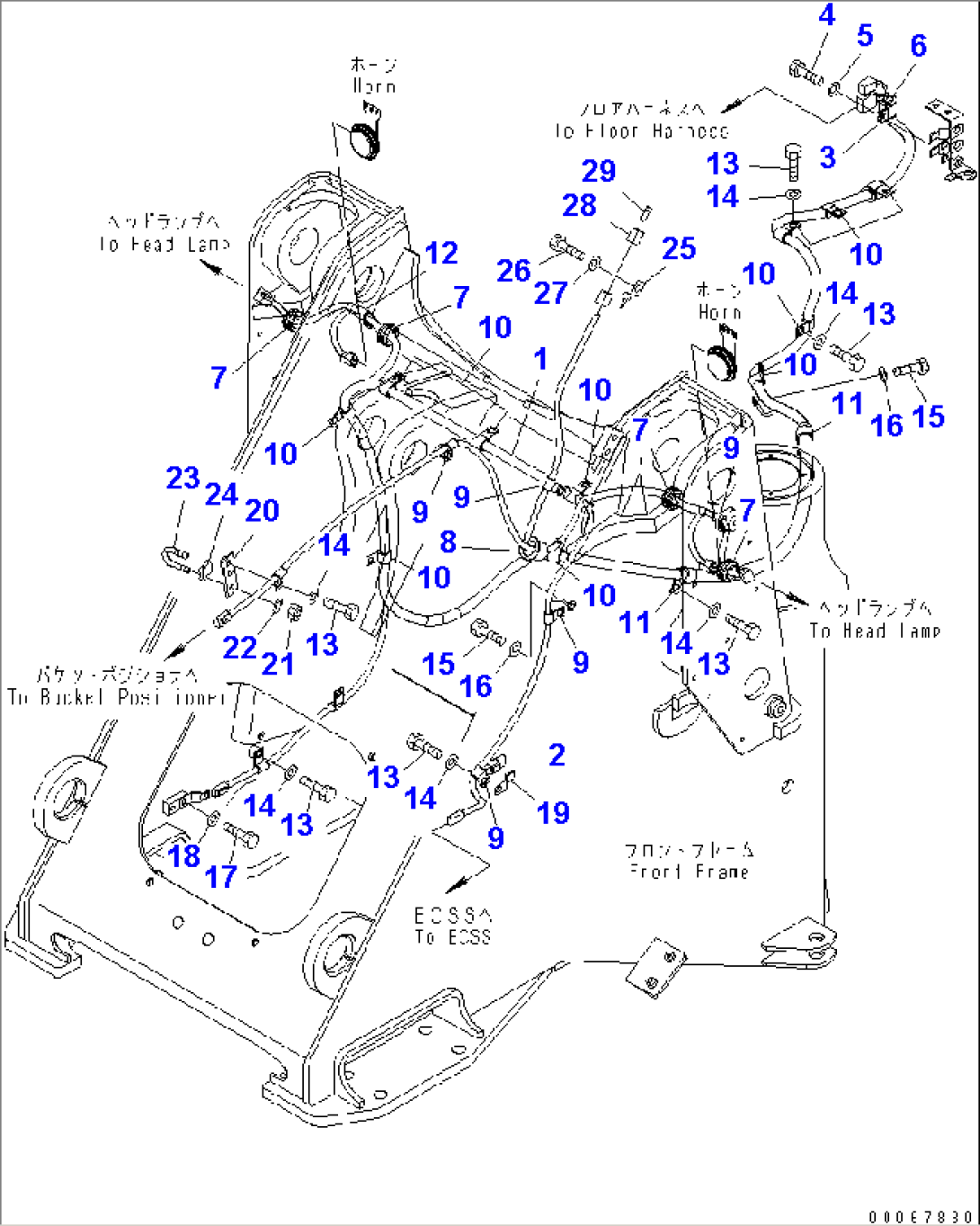

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-42140 | WIRING HARNESS | 70001- | |
| 2 | 21J-06-13661 | DIODE | 70001- | |
| 3 | 04434-52512 | CLIP | 70001- | |
| 4 | 01010-81020 | BOLT | 70001- | |
| 5 | 01643-31032 | WASHER | 70001- | |
| 6 | 07095-20418 | CUSHION | 70001- | |
| 7 | 418-06-12430 | GROMMET | 70001- | |
| 8 | 426-09-11210 | GROMMET | 70001- | |
| 9 | 04434-51012 | CLIP | 70001- | |
| 10 | 04434-51712 | CLIP | 70001- | |
| 11 | 04434-52512 | CLIP | 70001- | |
| 12 | 04434-51412 | CLIP | 70001- | |
| 13 | 01010-81020 | BOLT | 70001- | |
| 14 | 01643-31032 | WASHER | 70001- | |
| 15 | 01010-81016 | BOLT | 70001- | |
| 16 | 01643-31032 | WASHER | 70001- | |
| 17 | 01010-81020 | BOLT | 70001- | |
| 18 | 01643-31032 | WASHER | 70001- | |
| 19 | 08193-21012 | CLIP | 70001- | |
| 20 | 417-06-32280 | BRACKET | 70001- | |
| 21 | 01597-01009 | NUT | 70001- | |
| 22 | 01643-31032 | WASHER | 70001- | |
| 23 | 07283-32738 | CLIP | 70001- | |
| 24 | 07283-52737 | SEAT | 70001- | |
| 25 | 08193-21012 | CLIP | 70001- | |
| 26 | 01010-81220 | BOLT | 70001- | |
| 27 | 01643-31232 | WASHER | 70001- | |
| 28 | 08192-23100 | CONNECTOR | 70001- | |
| 29 | 08191-00770 | PLUG | 70001- |
