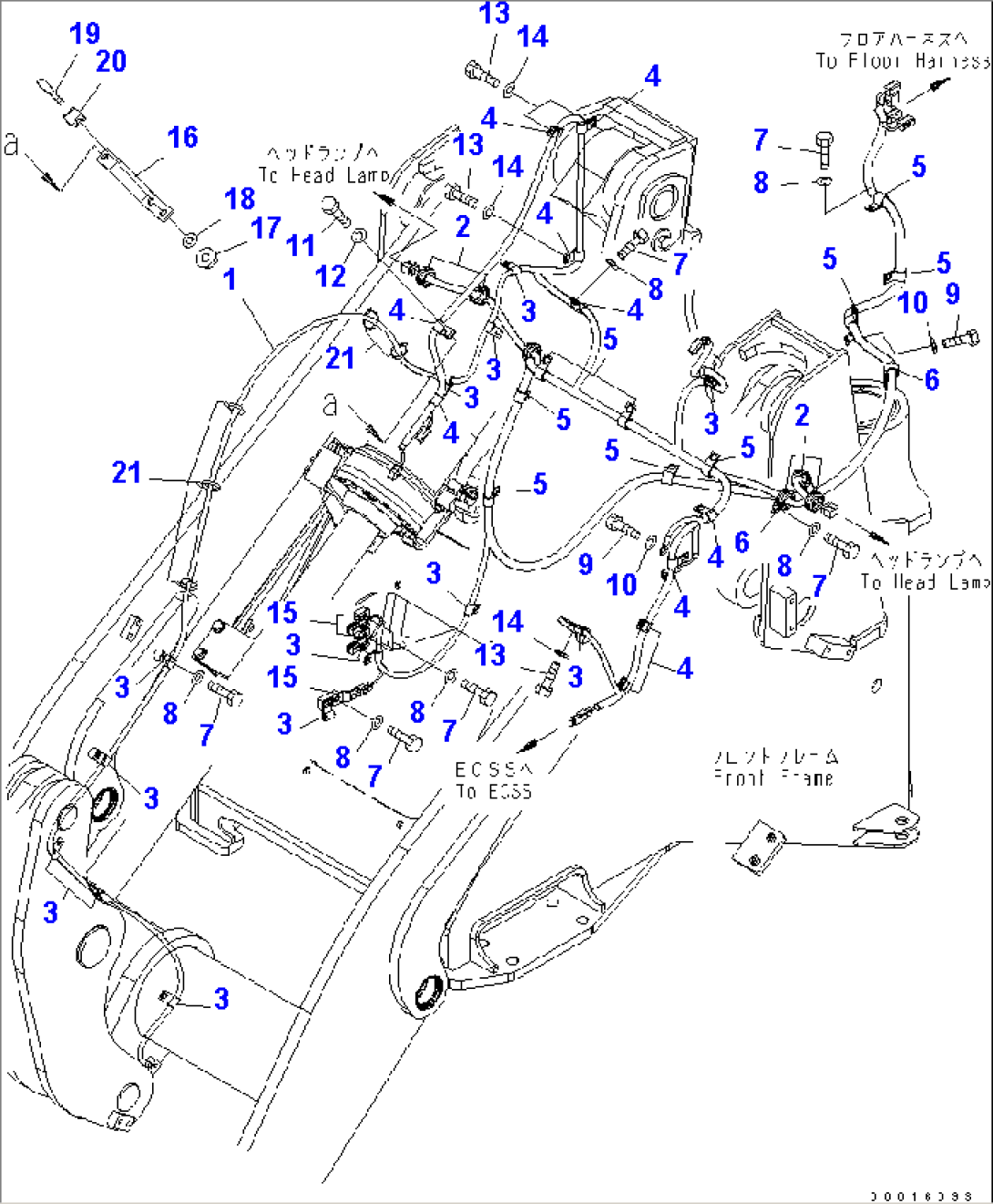

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-U77-3101 | WIRING HARNESS | A89001- | |
| 2 | 418-06-12430 | GROMMET | A89001- | |
| 3 | 04434-51012 | CLIP | A89001- | |
| 4 | 04434-51412 | CLIP | A89001- | |
| 5 | 04434-51712 | CLIP | A89001- | |
| 6 | 04434-52312 | CLIP | A89001- | |
| 7 | 01010-81020 | BOLT | A89001- | |
| 8 | 01643-31032 | WASHER | A89001- | |
| 9 | 01010-81016 | BOLT | A89001- | |
| 10 | 01643-31032 | WASHER | A89001- | |
| 11 | 01010-81025 | BOLT | A89001- | |
| 12 | 01643-31032 | WASHER | A89001- | |
| 13 | 01010-81020 | BOLT | A89001- | |
| 14 | 01643-31032 | WASHER | A89001- | |
| 15 | 08193-21012 | CLIP | A89001- | |
| 16 | 417-T90-3460 | BRACKET | A89001- | |
| 17 | 01597-01009 | NUT | A89001- | |
| 18 | 01643-31032 | WASHER | A89001- | |
| 19 | 07283-33450 | CLIP | A89001- | |
| 20 | 07283-53444 | SEAT | A89001- | |
| 21 | 08034-40521 | BAND | A89001- |
