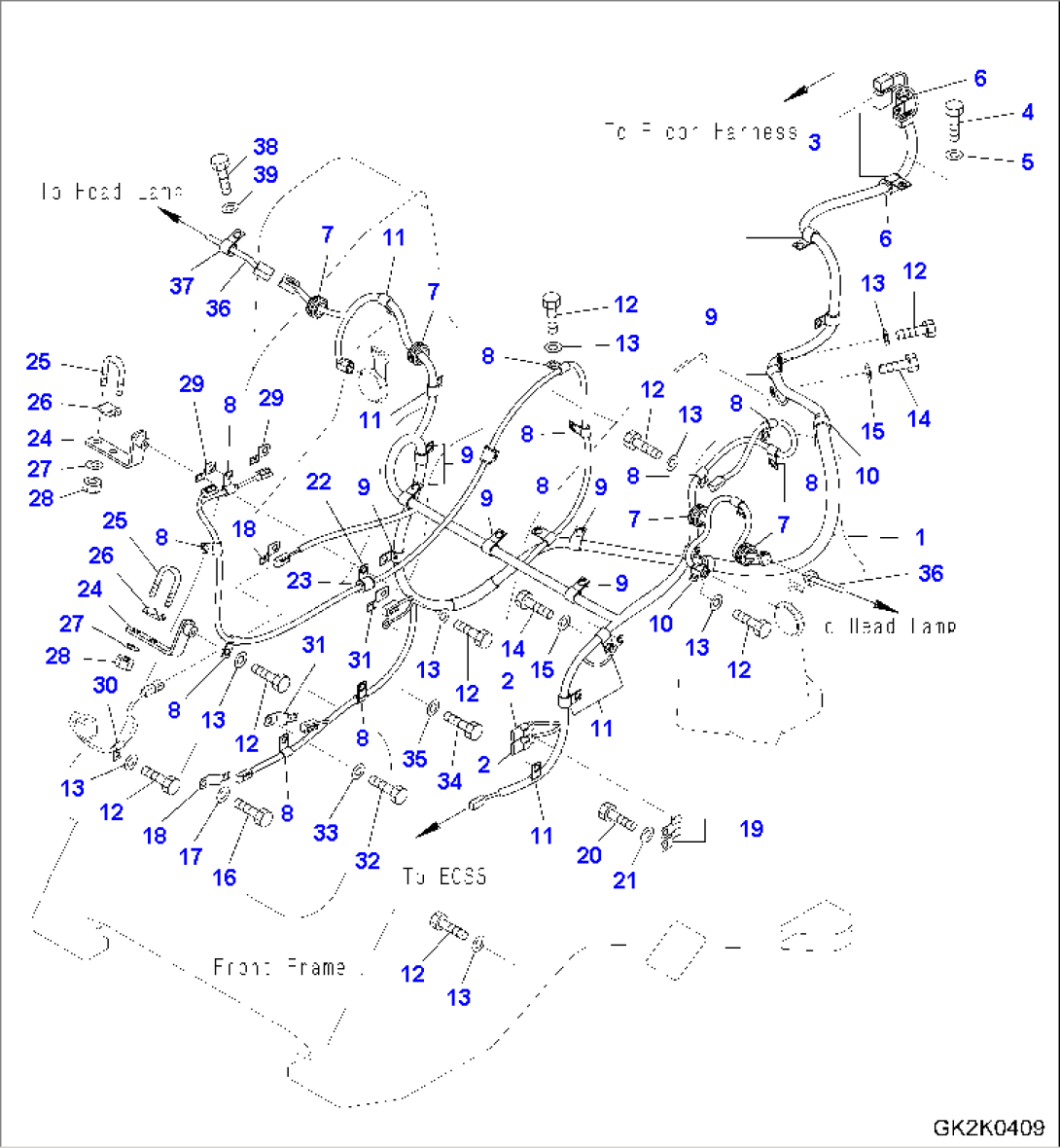

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-U77-4112 | WIRING HARNESS | 70136-70342 | |
| 2 | 21J-06-13661 | DIODE | 70136-70342 | |
| 3 | 04434-52512 | CLIP | 70136-70342 | |
| 4 | 01010-81020 | BOLT | 70136-70342 | |
| 5 | 01643-31032 | WASHER | 70136-70342 | |
| 6 | 07095-20418 | CUSHION | 70136-70342 | |
| 7 | 418-06-12430 | GROMMET | 70136-70342 | |
| 8 | 04434-51012 | CLIP | 70136-70342 | |
| 9 | 04434-51712 | CLIP | 70136-70342 | |
| 10 | 04434-52312 | CLIP | 70136-70342 | |
| 11 | 04434-51412 | CLIP | 70136-70342 | |
| 12 | 01010-81020 | BOLT | 70136-70342 | |
| 13 | 01643-31032 | WASHER | 70136-70342 | |
| 14 | 01010-81016 | BOLT | 70136-70342 | |
| 15 | 01643-31032 | WASHER | 70136-70342 | |
| 16 | 01010-81020 | BOLT | 70136-70342 | |
| 17 | 01643-31032 | WASHER | 70136-70342 | |
| 18 | 08193-21012 | CLIP | 70136-70342 | |
| 19 | 08193-20012 | CLIP | 70136-70342 | |
| 20 | 01010-81020 | BOLT | 70136-70342 | |
| 21 | 01643-31032 | WASHER | 70136-70342 | |
| 22 | 04434-51612 | CLIP | 70136-70342 | |
| 23 | 07095-20211 | CUSHION | 70136-70342 | |
| 24 | 418-06-48121 | BRACKET | 70136-70342 | |
| 25 | 07283-33450 | CLIP | 70136-70342 | |
| 26 | 07283-53444 | SEAT | 70136-70342 | |
| 27 | 01643-31032 | WASHER | 70136-70342 | |
| 28 | 01597-01009 | NUT | 70136-70342 | |
| 29 | 08193-20012 | CLIP | 70136-70342 | |
| 30 | 04434-50610 | CLIP | 70136-70342 | |
| 31 | 08193-20010 | CLIP | 70136-70342 | |
| 32 | 01010-81020 | BOLT | 70136-70342 | |
| 33 | 01643-31032 | WASHER | 70136-70342 | |
| 34 | 01010-81016 | BOLT | 70136-70342 | |
| 35 | 01643-31032 | WASHER | 70136-70342 | |
| 36 | 418-06-H2501 | WIRING HARNESS | 70136-70342 | |
| 37 | 04434-51410 | CLIP | 70136-70342 | |
| 38 | 01010-81016 | BOLT | 70136-70342 | |
| 39 | 01643-31032 | WASHER | 70136-70342 |
