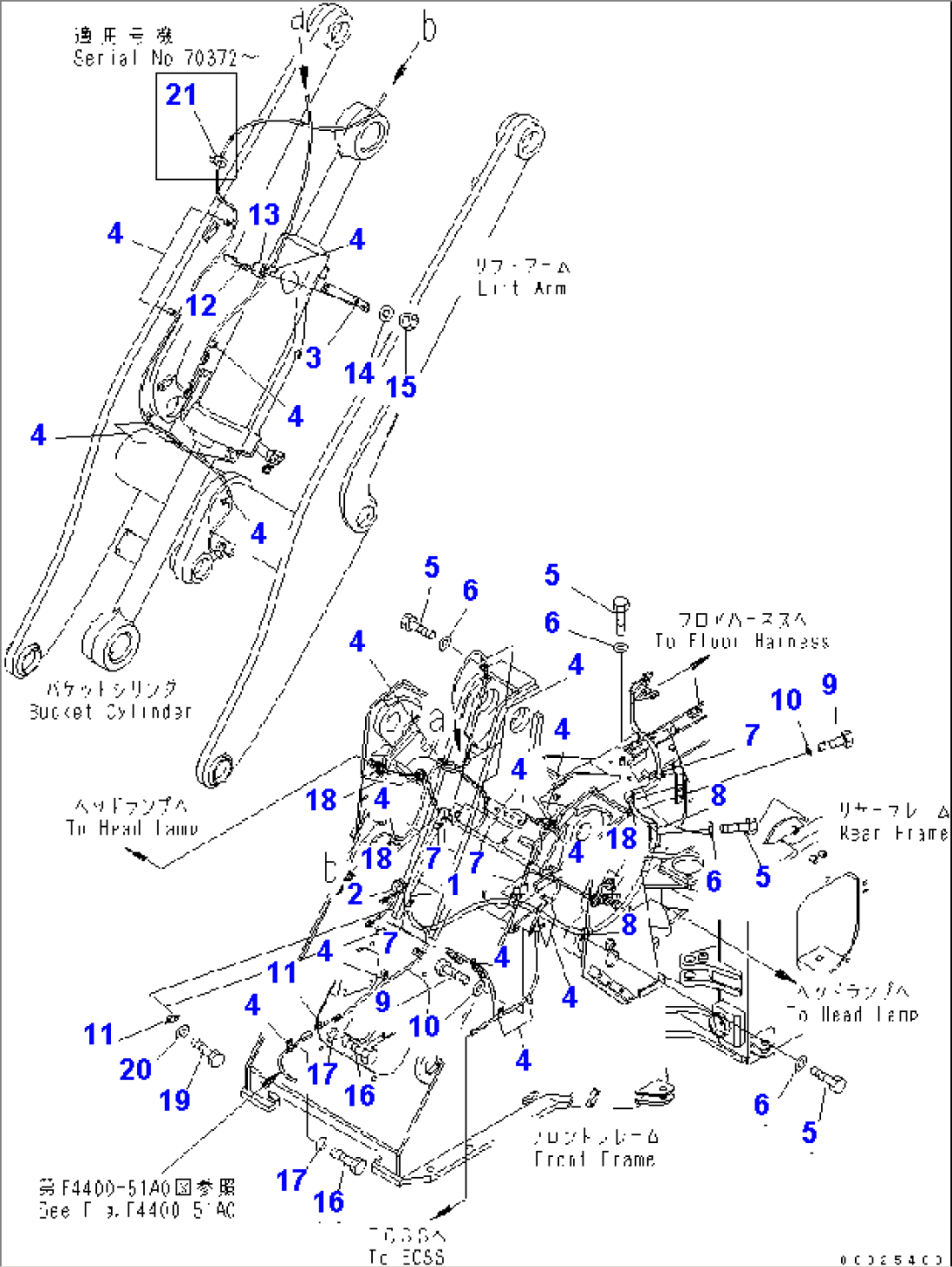

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-T80-3713 | WIRING HARNESS | 70372- | |
| 1 | 418-T80-3712 | WIRING HARNESS | 70001-70371 | |
| 2 | 21J-06-13661 | DIODE | 70001- | |
| 3 | 418-T80-3730 | BRACKET | 70001- | |
| 4 | 04434-51012 | CLIP | 70372- | |
| 4 | 04434-51012 | CLIP | 70001-70371 | |
| 5 | 01010-81020 | BOLT | 70372- | |
| 5 | 01010-81020 | BOLT | 70001-70371 | |
| 6 | 01643-31032 | WASHER | 70372- | |
| 6 | 01643-31032 | WASHER | 70001-70371 | |
| 7 | 04434-51712 | CLIP | 70001- | |
| 8 | 04434-52312 | CLIP | 70001- | |
| 9 | 01010-81016 | BOLT | 70001- | |
| 10 | 01643-31032 | WASHER | 70001- | |
| 11 | 08193-21012 | CLIP | 70001- | |
| 12 | 07283-33442 | CLIP | 70001- | |
| 13 | 07283-53444 | SEAT | 70001- | |
| 14 | 01643-31032 | WASHER | 70001- | |
| 15 | 01597-01009 | NUT | 70001- | |
| 16 | 01010-81020 | BOLT | 70001- | |
| 17 | 01643-31032 | WASHER | 70001- | |
| 18 | 418-06-12430 | GROMMET | 70001- | |
| 19 | 01010-81225 | BOLT | 70001- | |
| 20 | 01643-31232 | WASHER | 70001- | |
| 21 | 08034-40521 | BAND | 70372- |
