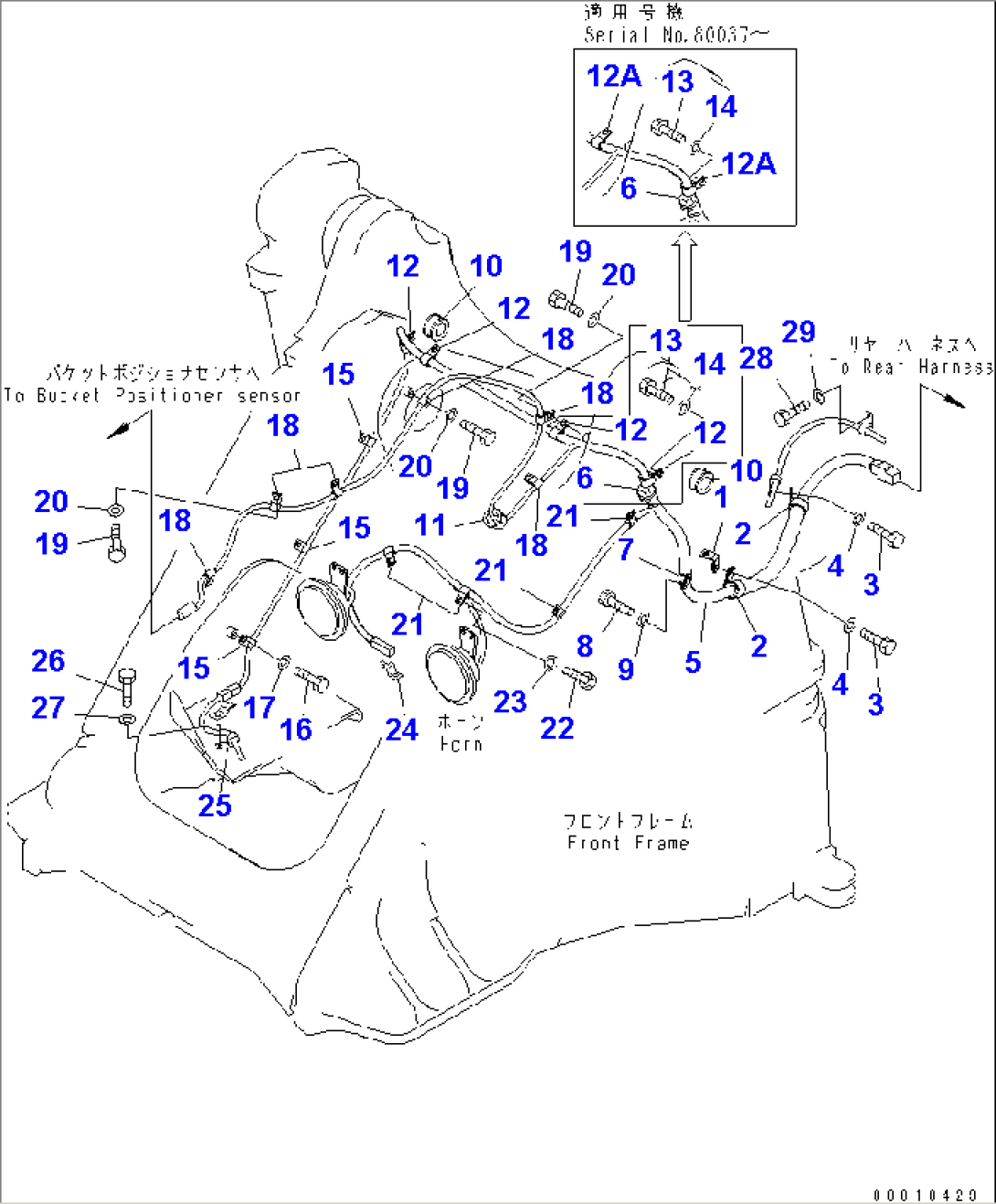

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42A-16-11210 | PLATE | 80001- | |
| 2 | 04434-53411 | CLIP | 80001- | |
| 3 | 01010-81020 | BOLT | 80001- | |
| 4 | 01643-31032 | WASHER | 80001- | |
| 5 | 421-06-31246 | WIRING HARNESS | 80551- | |
| 5 | \0\421-06-31245 | WIRING HARNESS | 80037-80550 | |
| 5 | \0\421-06-31244 | WIRING HARNESS | 80001-80036 | |
| 6 | 21J-06-13661 | DIODE | 80001- | |
| 7 | 04434-52310 | CLIP | 80001- | |
| 8 | 01010-81020 | BOLT | 80001- | |
| 9 | 01643-31032 | WASHER | 80001- | |
| 10 | 416-06-11310 | GROMMET | 80001- | |
| 11 | 426-09-11210 | GROMMET | 80001- | |
| 12 | 04434-51710 | CLIP | 80037- | |
| 12 | 04434-51710 | CLIP | 80001-80036 | |
| 12A | 04434-52310 | CLIP | 80037- | |
| 13 | 01010-81020 | BOLT | 80001- | |
| 14 | 01643-31032 | WASHER | 80001- | |
| 15 | 04434-51010 | CLIP | 80001- | |
| 16 | 01010-81020 | BOLT | 80001- | |
| 17 | 01643-31032 | WASHER | 80001- | |
| 18 | 04434-51010 | CLIP | 80001- | |
| 19 | 01010-81020 | BOLT | 80001- | |
| 20 | 01643-31032 | WASHER | 80001- | |
| 21 | 04434-51410 | CLIP | 80001- | |
| 22 | 01010-81020 | BOLT | 80001- | |
| 23 | 01643-31032 | WASHER | 80001- | |
| 24 | 08193-20010 | CLIP | 80001- | |
| 25 | 04434-50610 | CLIP | 80001- | |
| 26 | 01010-81020 | BOLT | 80001- | |
| 27 | 01643-31032 | WASHER | 80001- | |
| 28 | 01010-81016 | BOLT | 80001- | |
| 29 | 01643-31032 | WASHER | 80001- |
