| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7861-93-3320 | SENSOR | 51001- | |
| 2 | 428-06-22840 | JOINT | 51001- | |
| 3 | 07002-12434 | O-RING | 51001- | |
| 4 | 08034-20519 | BAND | 51001- | |
| 5 | 428-06-22971 | COVER | 51001- | |
| 6 | 01011-62000 | BOLT | 51001- | |
| 7 | 01643-32060 | WASHER | 51001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa700 3 s/n 50001 up (ka spec.)
- Electrical sytem
- Front harness (axle harness) (with vhms)(#51001 )
Поиск по каталогу

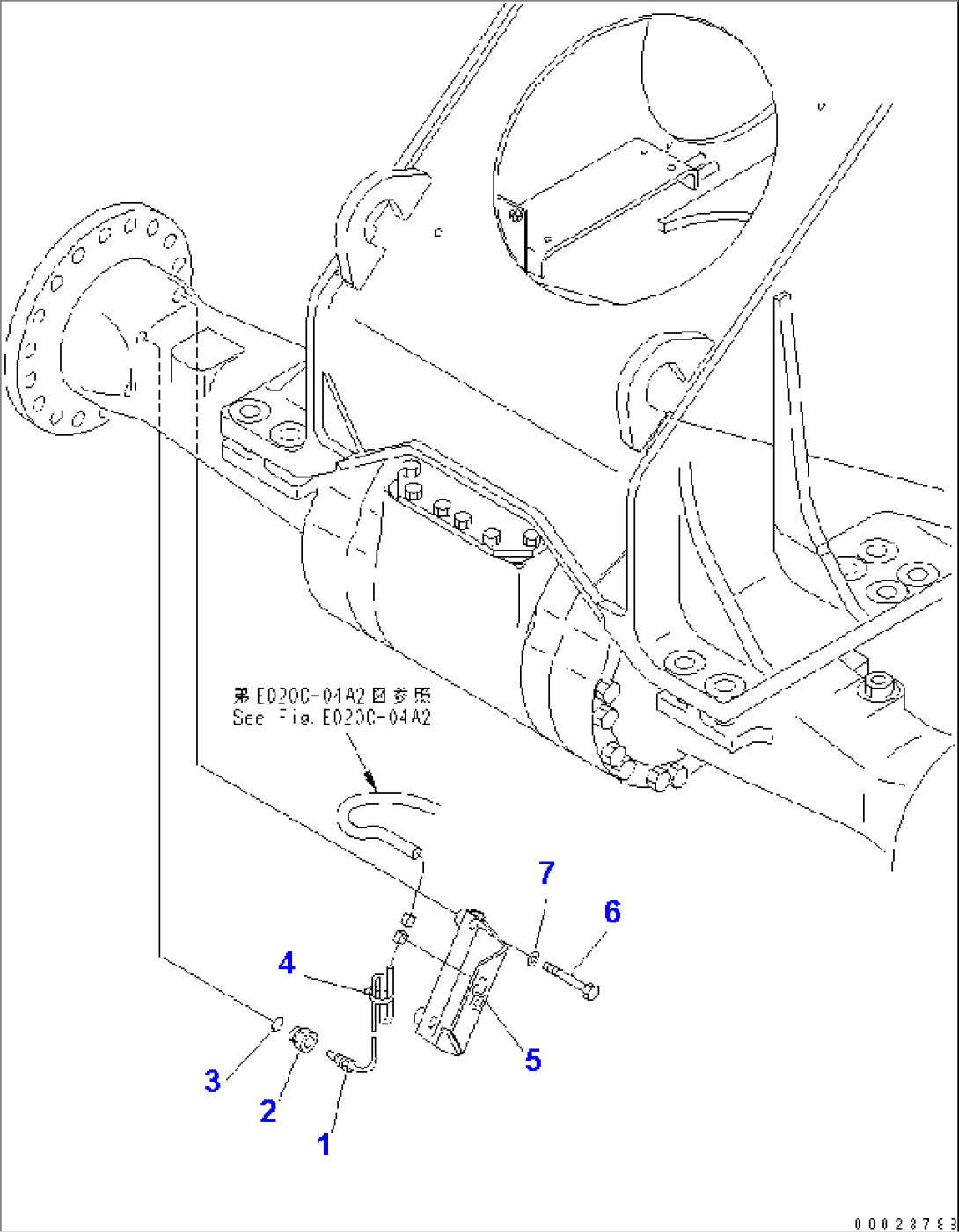

FRONT HARNESS (AXLE HARNESS) (WITH VHMS)(#51001-)
