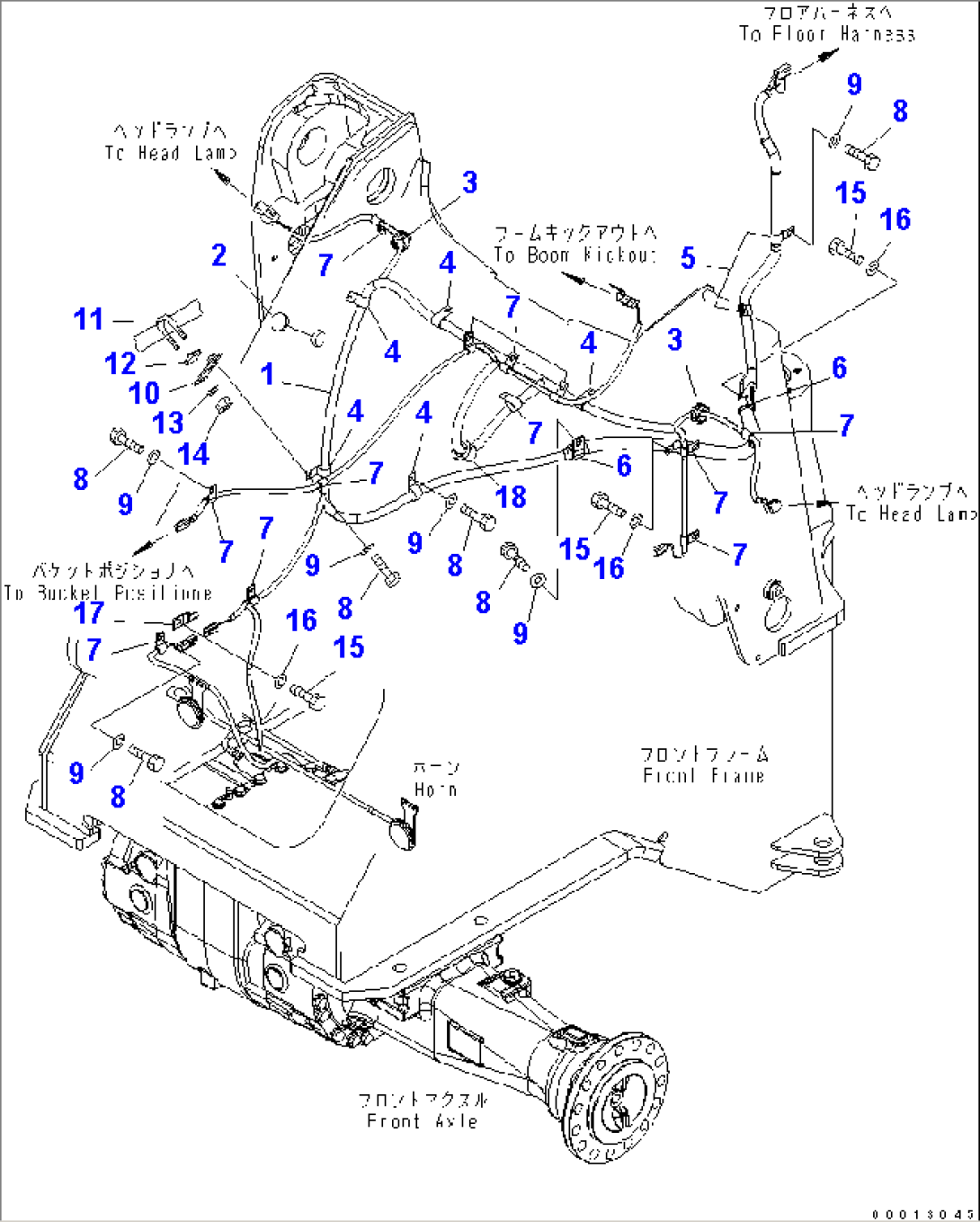

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-06-32147 | WIRING HARNESS | 60001- | |
| 2 | 419-06-31770 | PLUG | 60001- | |
| 3 | 418-06-12430 | GROMMET | 60001- | |
| 4 | 04434-51712 | CLIP | 60001- | |
| 5 | 04434-51912 | CLIP | 60001- | |
| 6 | 04434-52512 | CLIP | 60001- | |
| 7 | 04434-51012 | CLIP | 60001- | |
| 8 | 01010-81020 | BOLT | 60001- | |
| 9 | 01643-31032 | WASHER | 60001- | |
| 10 | 423-06-32280 | BRACKET | 60001- | |
| 11 | 07283-33450 | CLIP | 60001- | |
| 12 | 07283-53444 | SEAT | 60001- | |
| 13 | 01643-31032 | WASHER | 60001- | |
| 14 | 01597-01009 | NUT | 60001- | |
| 15 | 01010-81016 | BOLT | 60001- | |
| 16 | 01643-31032 | WASHER | 60001- | |
| 17 | 08193-21012 | CLIP | 60001- | |
| 18 | 426-09-11210 | GROMMET | 60001- |
