| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08192-12300 | WEDGE | 65001- | |
| 2 | 08192-22100 | CONNECTOR | 65001- | |
| 3 | 08191-00770 | PLUG | 65001- | |
| 4 | 08193-21012 | CLIP | 65043- | |
| 08193-22012 | CLIP | 65001-65042 | ||
| 5 | 01010-81220 | BOLT | 65001- | |
| 6 | 01643-31232 | WASHER | 65001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa200 5 sn s/n 65001 up
- Electrical system
- Front harness (e.c.s.s. less)
Поиск по каталогу

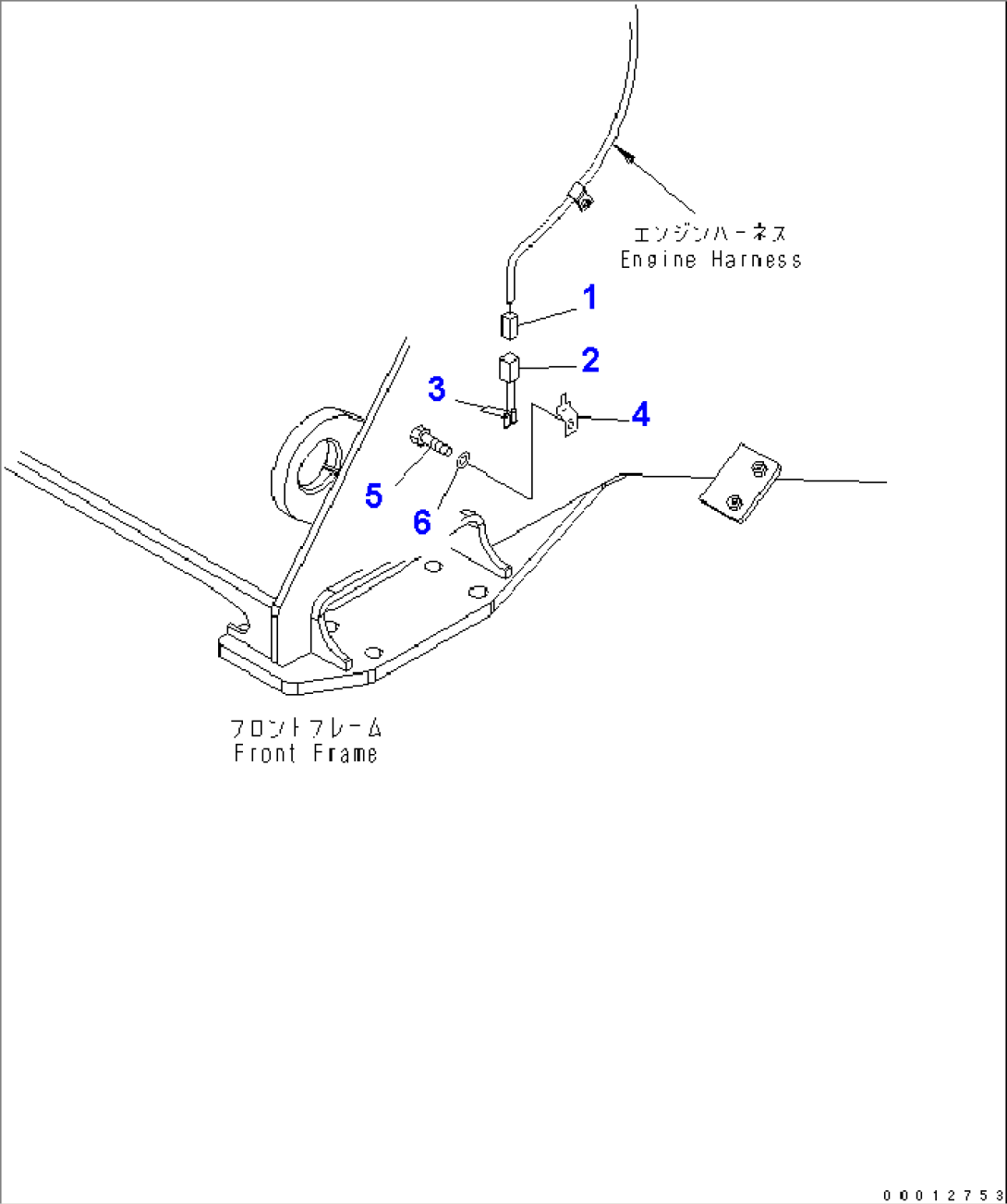

FRONT HARNESS (E.C.S.S. LESS)
