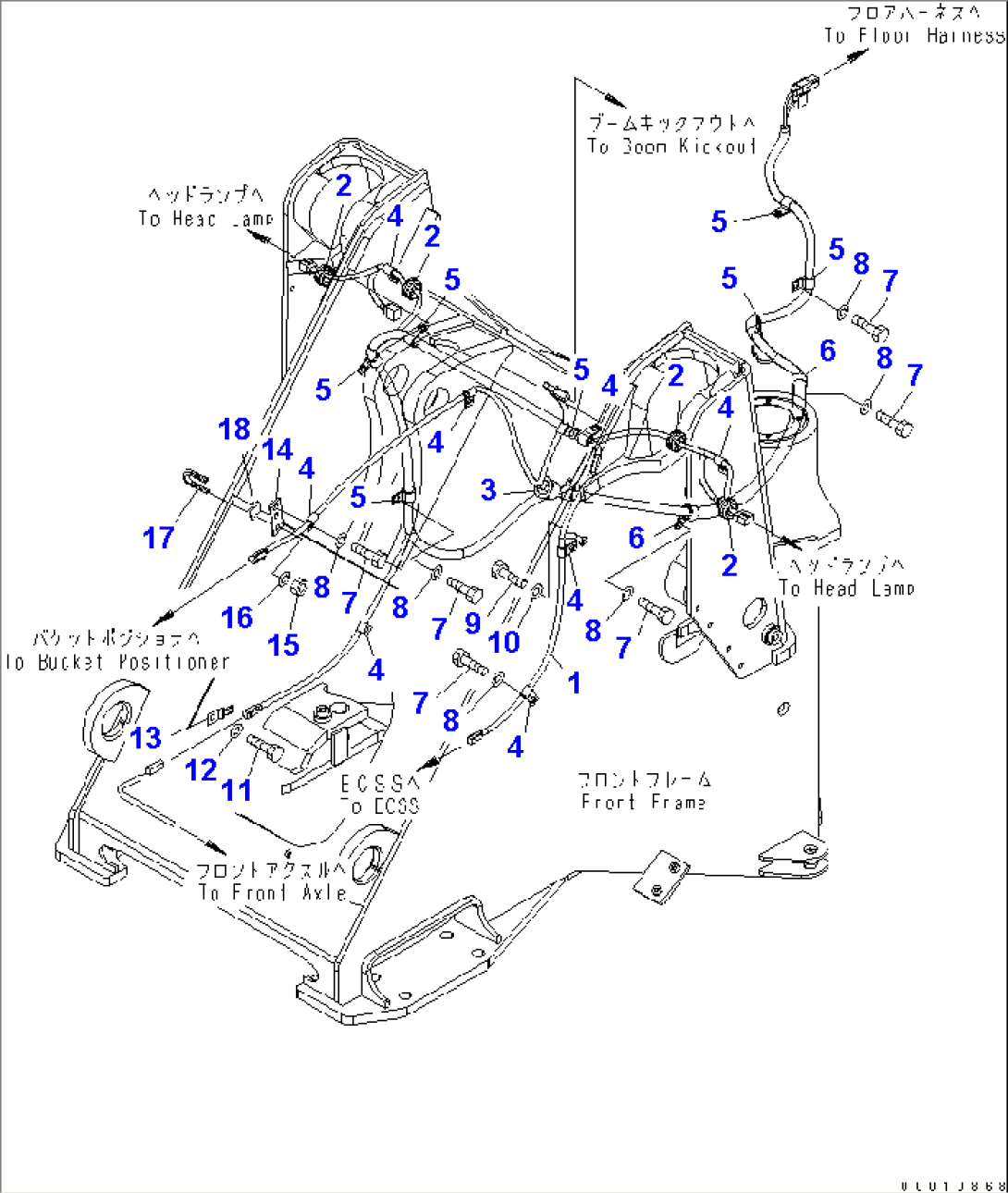

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-32143 | WIRING HARNESS | 65001-65042 | |
| 2 | 418-06-12430 | GROMMET | 65001-@ | |
| 3 | 426-09-11210 | GROMMET | 65001-65042 | |
| 4 | 04434-51012 | CLIP | 65001-@ | |
| 5 | 04434-51712 | CLIP | 65001-@ | |
| 6 | 04434-52312 | CLIP | 65001-@ | |
| 7 | 01010-81020 | BOLT | 65001-65042 | |
| 8 | 01643-31032 | WASHER | 65001-65042 | |
| 9 | 01010-81016 | BOLT | 65001-@ | |
| 10 | 01643-31032 | WASHER | 65001-@ | |
| 11 | 01010-81020 | BOLT | 65001-@ | |
| 12 | 01643-31032 | WASHER | 65001-@ | |
| 13 | 08193-21012 | CLIP | 65001-@ | |
| 14 | 417-06-32280 | BRACKET | 65001-@ | |
| 15 | 01597-01009 | NUT | 65001-@ | |
| 16 | 01643-31032 | WASHER | 65001-@ | |
| 17 | 07283-32738 | CLIP | 65001-@ | |
| 18 | 07283-52737 | SEAT | 65001-@ |
