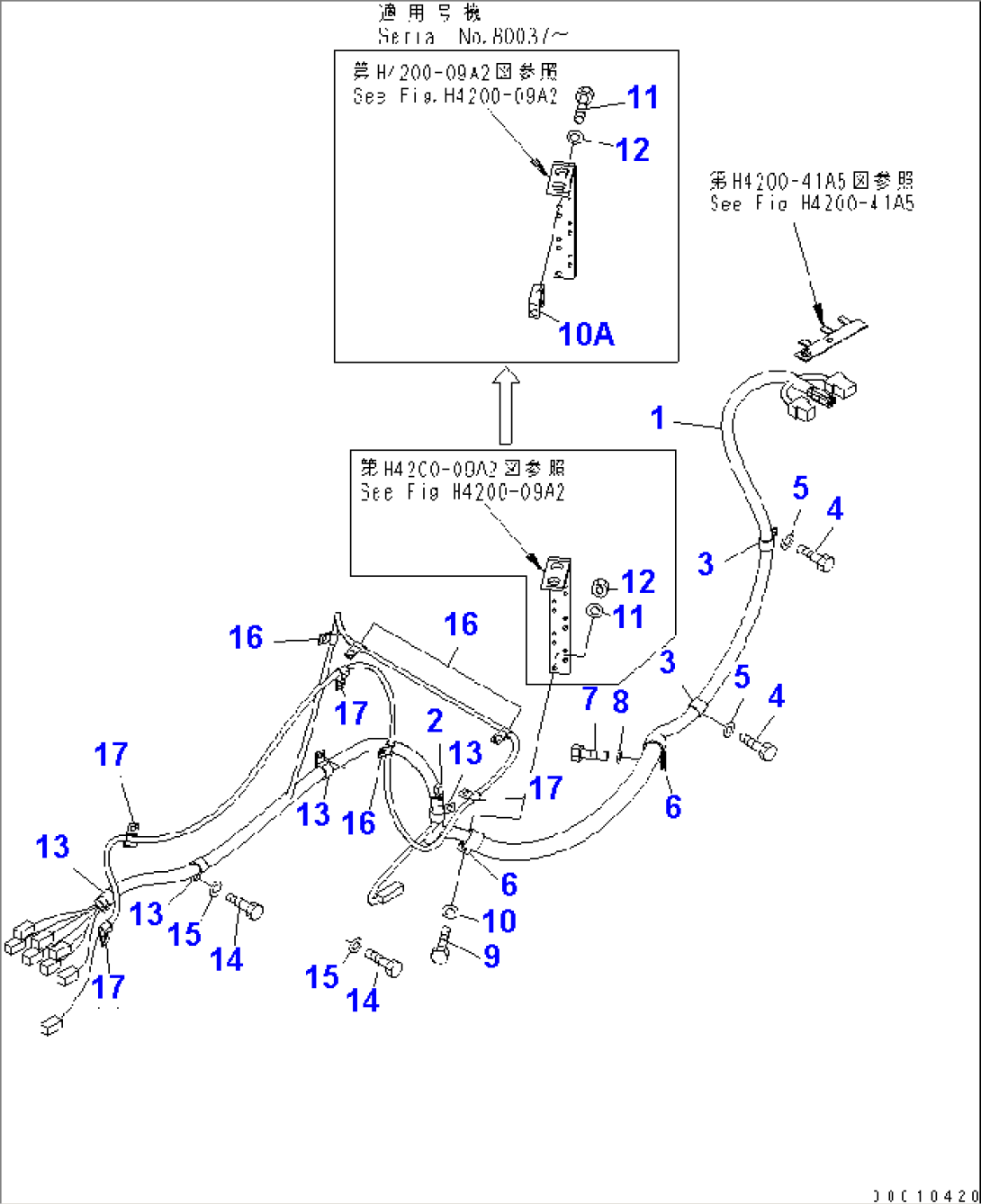

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-31256 | WIRING HARNESS | 80551- | |
| 1 | \0\421-06-31255 | WIRING HARNESS | 80037-80550 | |
| 1 | \0\421-06-31254 | WIRING HARNESS | 80001-80036 | |
| 2 | 21J-06-13661 | DIODE | 80001- | |
| 3 | 04434-52310 | CLIP | 80001- | |
| 4 | 01010-81020 | BOLT | 80001- | |
| 5 | 01643-31032 | WASHER | 80001- | |
| 6 | 04434-53411 | CLIP | 80001- | |
| 7 | 01010-81020 | BOLT | 80001- | |
| 8 | 01643-31032 | WASHER | 80001- | |
| 9 | 01010-81020 | BOLT | 80037- | |
| 9 | 01010-80830 | BOLT | 80001-80036 | |
| 10 | 01643-31032 | WASHER | 80037- | |
| 10 | 01643-30823 | WASHER | 80001-80036 | |
| 10A | 421-06-32790 | BRACKET | 80037- | |
| 11 | 01010-80820 | BOLT | 80037- | |
| 12 | 01643-30823 | WASHER | 80037- | |
| 11 | 01643-31032 | WASHER | 80001-80036 | |
| 12 | 01580-00806 | NUT | 80001-80036 | |
| 13 | 04434-52310 | CLIP | 80001- | |
| 14 | 01010-81020 | BOLT | 80001- | |
| 15 | 01643-31032 | WASHER | 80001- | |
| 16 | 04434-51010 | CLIP | 80001- | |
| 17 | 04434-51010 | CLIP | 80001- |
