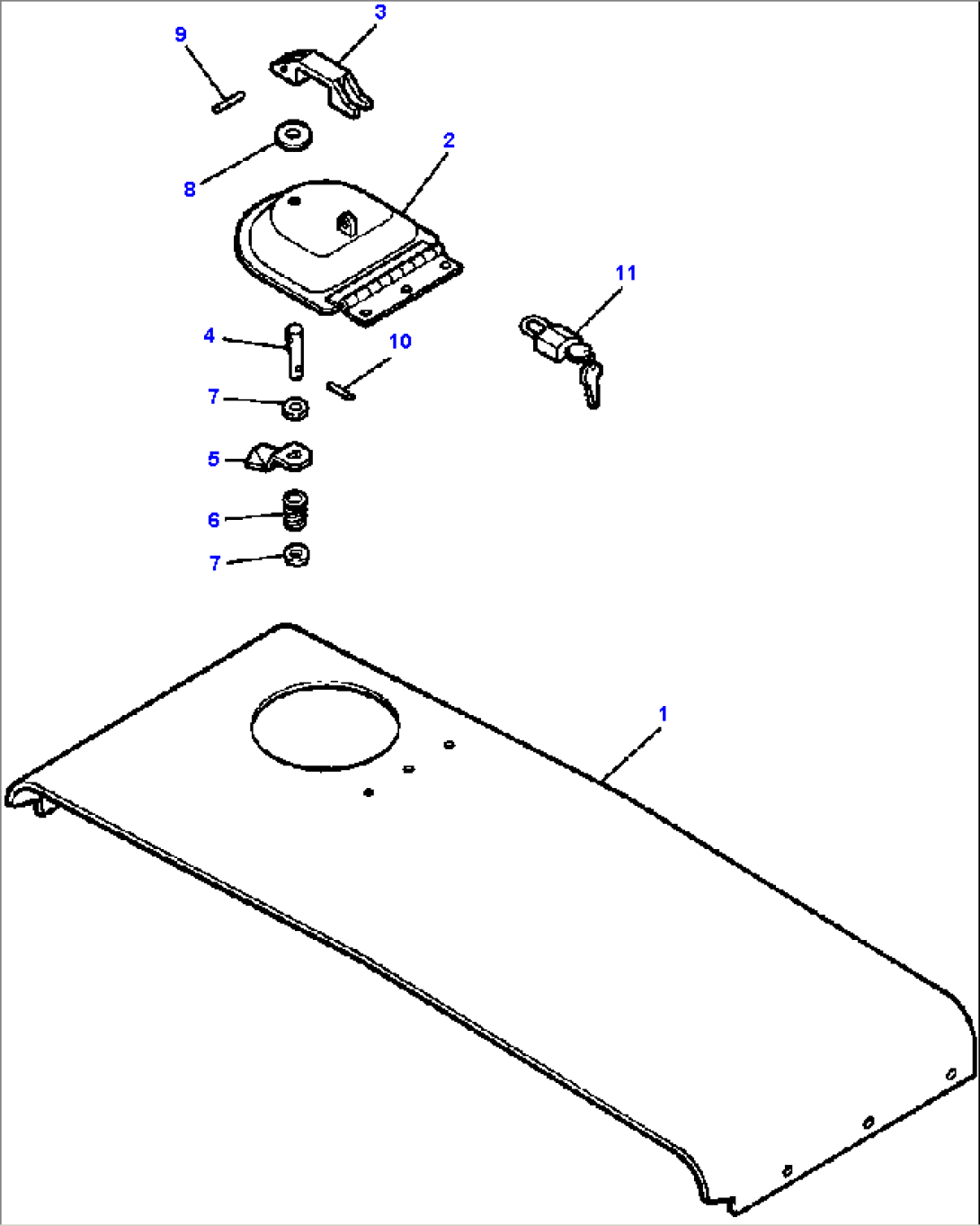

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 1208 720 H91 | SUPPORT, HOOD FRONT | ||
| 1 | 742 245 C91 | SUPPORT, HOOD FRONT | ||
| 2 | 1211 416 H91 | DOOR, RADIATOR CAP ACCESS | ||
| 24 840 R1 | BOLT, MOUNTING | |||
| 25 534 R1 | WASHER, FLAT | |||
| 25 522 R1 | NUT, MOUNTING | |||
| 3 | 1207 143 H1 | HANDLE, LATCH | ||
| 4 | 1207 695 H1 | PIN, LATCH | ||
| 5 | 1211 418 H1 | PAWL, LATCH | ||
| 6 | 1207 694 H1 | SPRING | ||
| 7 | 25 536 R1 | WASHER, FLAT | ||
| 8 | 120 390 | WASHER, FLAT | ||
| 9 | 20 895 R1 | PIN, SPRING | ||
| 10 | 19 494 R1 | PIN, SPRING | ||
| 11 | 650 382 C91 | PADLOCK W/ KEYS | ||
| F1 - FOR MACHINES WITHOUT RADIATOR DEBRIS SCREEN | ||||
| F2 - FOR MACHINES WITH RADIATOR DEBRIS SCREEN | ||||
