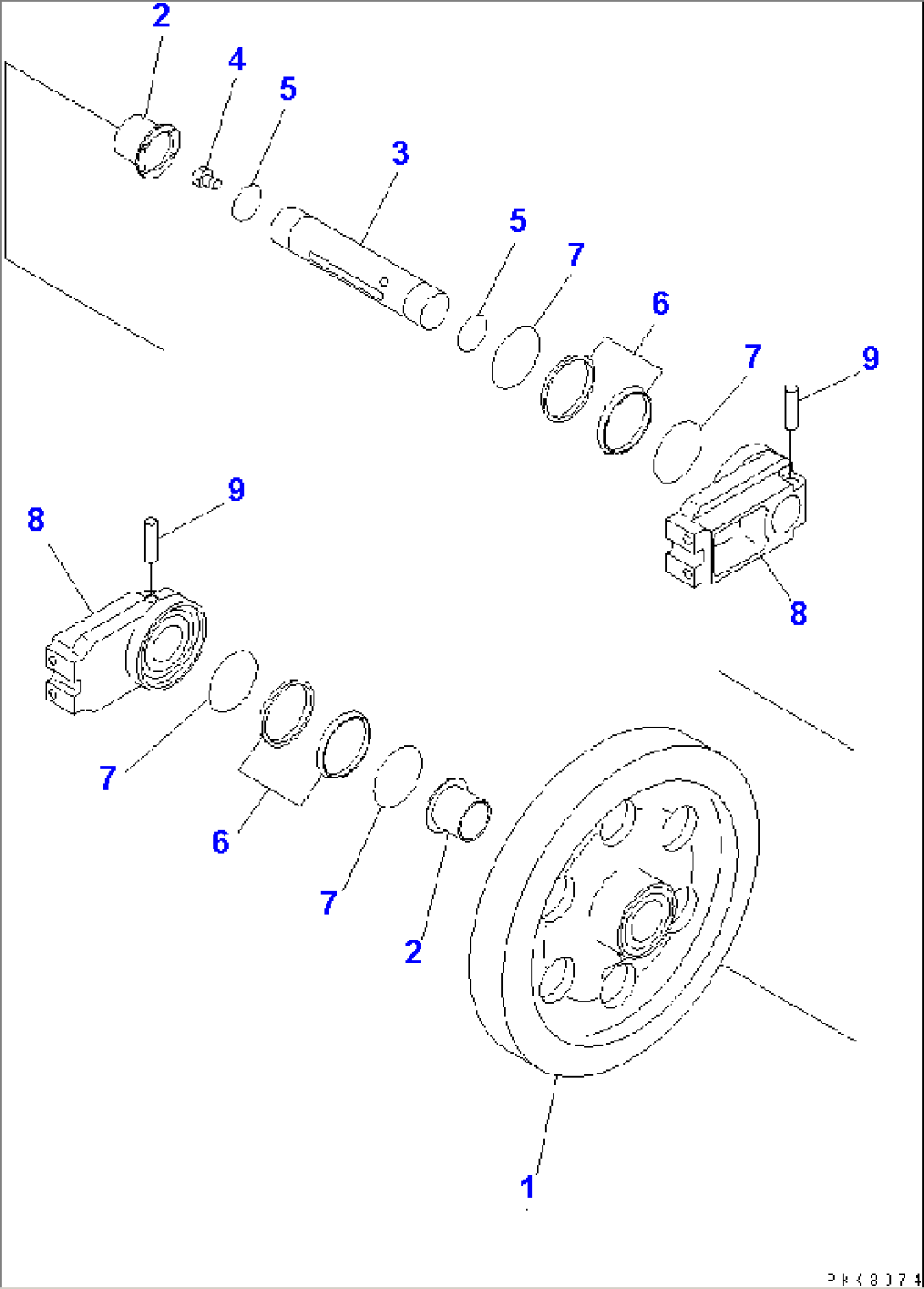

| Item | Part No. | Part Name | Qty | Serial No. |
| 14S-30-00131 | IDLER ASS'Y | 1501- | ||
| 1 | 14S-30-21611 | IDLER | 1501- | |
| 2 | 14X-30-12180 | BUSHING | 1501- | |
| 3 | 20Y-30-13130 | SHAFT | 1501- | |
| 4 | 07052-31624 | PLUG | 1501- | |
| 5 | 07000-02060 | O-RING | 1501- | |
| 20Y-30-00100 | FLOATING SEAL ASS'Y | 1501- | ||
| 6 | 20Y-30-00110 | SEAL RING ASS'Y | 1501- | |
| 6 | \6\ | RING | 1501- | |
| 7 | 20Y-30-00120 | O-RING ASS'Y | 1501- | |
| 7 | \6\ | O-RING | 1501- | |
| 8 | 20Y-30-13150 | SUPPORT | 1501- | |
| 9 | 205-30-76190 | PIN | 1501- |
