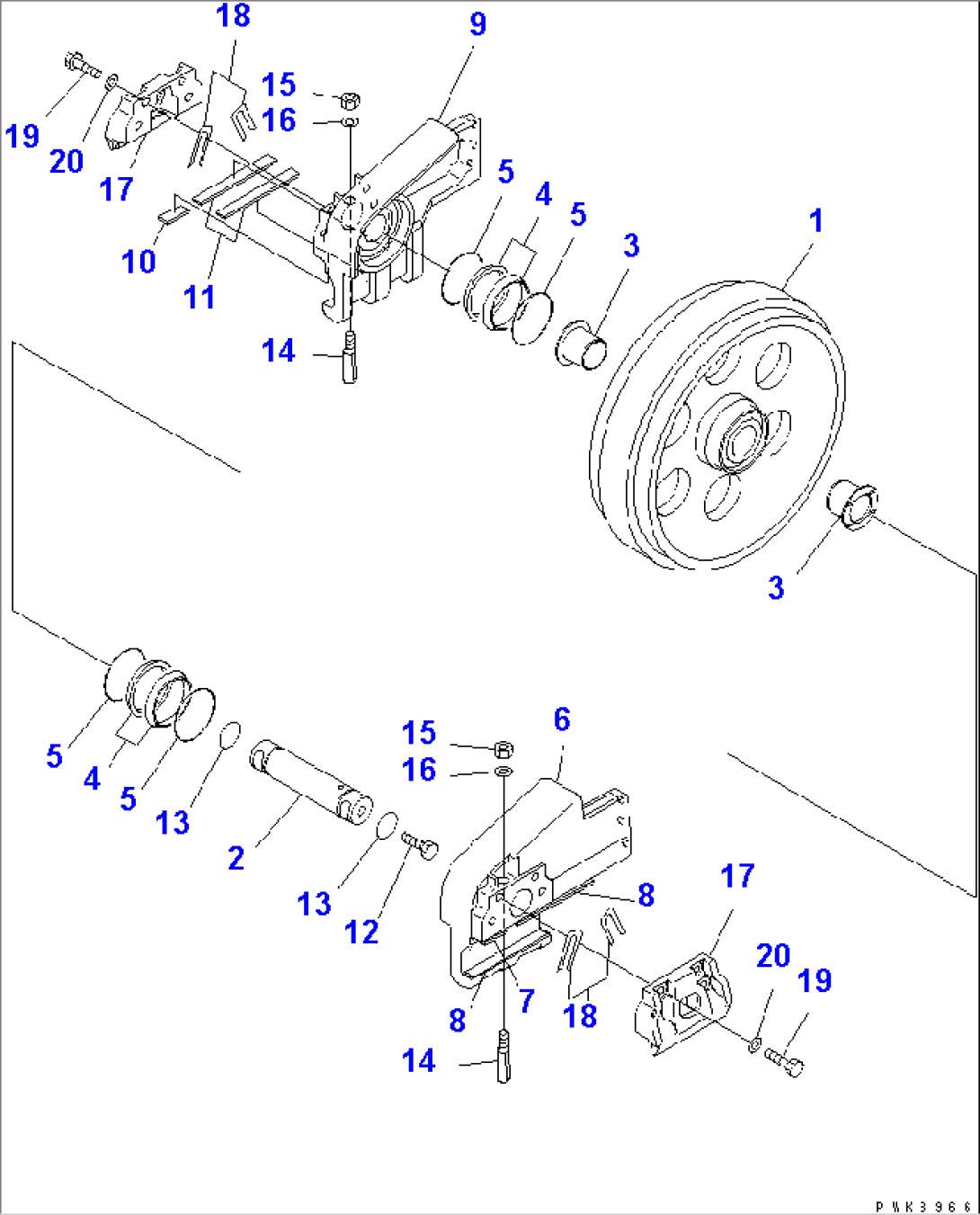

| Item | Part No. | Part Name | Qty | Serial No. |
| 134-30-00201 | IDLER ASS'Y | 1247- | ||
| \0\134-30-00200 | IDLER ASS'Y | 1001-1246 | ||
| 1 | 134-30-62232 | IDLER | 1001- | |
| 2 | 134-30-62241 | SHAFT | 1001- | |
| 3 | 134-30-62251 | BUSHING | 1001- | |
| 205-30-00220 | FLOATING SEAL ASS'Y | 1247- | ||
| 205-30-00052 | FLOATING SEAL ASS'Y | 1001-1246 | ||
| 4 | \6\ | SEAL | 1247- | |
| 4 | \6\ | RING | 1001-1246 | |
| 5 | \6\ | O-RING | 1001- | |
| 6 | 134-30-62112 | SUPPORT,L.H. | 1001- | |
| 7 | 134-30-62150 | PLATE (WELDED) | 1001- | |
| 8 | 134-30-62170 | PLATE (WELDED) | 1001- | |
| 9 | 134-30-62132 | SUPPORT,R.H. | 1001- | |
| 10 | 134-30-62150 | PLATE (WELDED) | 1001- | |
| 11 | 134-30-62170 | PLATE (WELDED) | 1001- | |
| 12 | 07052-31624 | PLUG | 1001- | |
| 13 | 07000-12055 | O-RING | 1001- | |
| 14 | 130-30-13170 | BOLT | 1001- | |
| 15 | 01582-11613 | NUT | 1001- | |
| 16 | 01643-31645 | WASHER | 1001- | |
| 17 | 134-30-62311 | GUIDE | 1001- | |
| 17 | 134-30-62320 | PLATE (WELDED) | 1001- | |
| 18 | 134-30-62191 | SHIM, 1.0MM | 1001- | |
| 19 | 01010-81645 | BOLT | 1001- | |
| 20 | 01643-31645 | WASHER | 1001- |
