| Item | Part No. | Part Name | Qty | Serial No. |

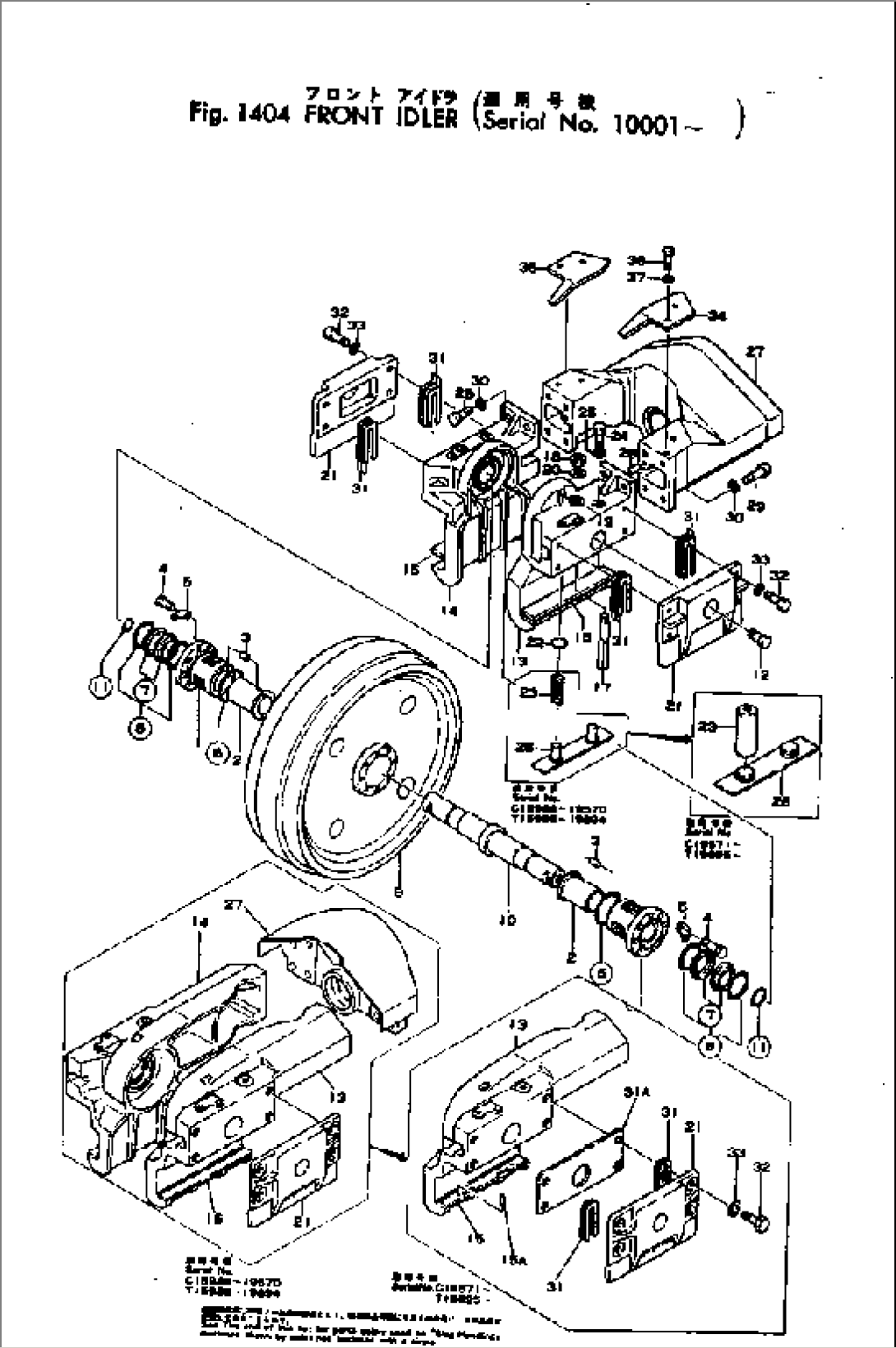

| 154-30-00290 | FRONT IDLER ASS'Y | .- | ||
| \0\154-30-00079 | FRONT IDLER ASS'Y | 1001-. | ||
| \6\ | BUSHING ASS'Y | 1001- | ||
| 1 | \6\ | BUSHING | 1001- | |
| 2 | \6\ | BUSHING | 1001- | |
| 3 | 170-30-91130 | PIN | 1001- | |
| 4 | 01010-31235 | BOLT | 1001- | |
| 5 | 150-30-12151 | PLATE | 1001- | |
| 6 | 07000-05105 | O-RING (KIT) | 1001- | |
| 154-30-00830 | FLOATING SEAL ASS'Y | .- | ||
| \0\150-30-00035 | FLOATING SEAL ASS'Y | 1001-. | ||
| 7 | 154-30-00820 | SEAL RING ASS'Y | .- | |
| \0\150-30-00360 | SEAL RING ASS'Y | 1001-. | ||
| \6\ | RING | .- | ||
| \6\ | RING | 1001-. | ||
| 8 | 150-30-00370 | O-RING ASS'Y | 1001- | |
| \6\ | O-RING | 1001- | ||
| 9 | 150-30-22116 | IDLER | 1001- | |
| 10 | 154-30-11880 | SHAFT | 1001- | |
| 11 | 07000-03058 | O-RING (KIT) | 1001- | |
| 12 | 07052-11624 | PLUG | 1001- | |
| 13 | 154-30-11982 | BRACKET ASS'Y,L.H. | 1001- | |
| 14 | 154-30-11972 | BRACKET ASS'Y,R.H. | 1001- | |
| 15 | 154-30-11963 | PLATE (WELDED) | 1001- | |
| 15A | 04020-01228 | PIN | 1001- | |
| 17 | 155-30-13260 | BOLT | 1001- | |
| 18 | 175-30-23180 | NUT | 1001- | |
| 19 | 01602-01648 | WASHER | 1001- | |
| 20 | 01640-01626 | WASHER | 1001- | |
| 21 | 154-30-11682 | PLATE | 1001- | |
| 22 | 195-30-17960 | SEAT | 1001- | |
| 23 | 155-30-13230 | SPRING | 1001- | |
| 24 | 145-30-33290 | BOLT | 1001- | |
| 25 | 01602-01648 | WASHER | 1001- | |
| 26 | 154-30-11561 | GUIDE | 1001- | |
| 27 | 154-30-11495 | YOKE | 1001- | |
| 29 | 01010-32065 | BOLT | 1001- | |
| 30 | 01602-02060 | WASHER | 1001- | |
| 31 | 154-30-11670 | SHIM¤ 0.6MM | 1001- | |
| 31A | 154-30-12290 | SPACER | 1001- | |
| 32 | 01010-32060 | BOLT | 1001- | |
| 33 | 01602-02060 | WASHER | 1001- |
