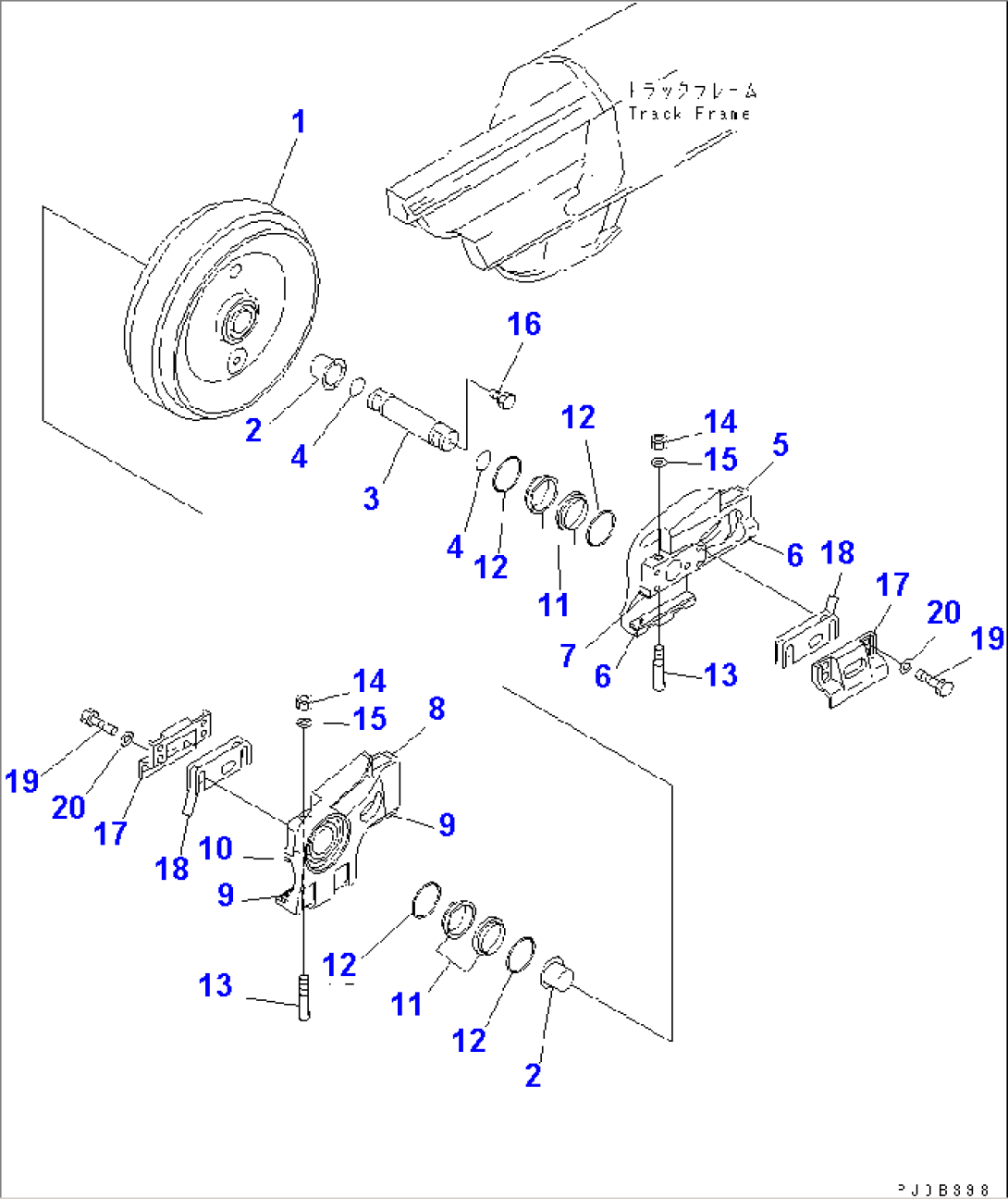

| Item | Part No. | Part Name | Qty | Serial No. |
| 14X-30-00115 | IDLER ASS'Y | 4180- | ||
| \0\14X-30-00114 | IDLER ASS'Y | 4170-4179 | ||
| \0\14X-30-00113 | IDLER ASS'Y | 3148-4169 | ||
| \0\14X-30-00112 | IDLER ASS'Y | 3034-3147 | ||
| 1 | 14X-30-12114 | IDLER | 3034- | |
| 2 | 14X-30-12181 | BUSHING | 4170- | |
| 2 | 14X-30-12180 | BUSHING | 3034-4169 | |
| 3 | 14X-30-12164 | SHAFT | 4180- | |
| 3 | \1\14X-30-12163 | SHAFT | 3034-4179 | |
| 4 | 427-15-15910 | O-RING | 3034- | |
| 5 | 14X-30-12127 | SUPPORT,L.H. | 3148- | |
| 5 | 14X-30-12126 | SUPPORT,L.H. | 3034-3147 | |
| 6 | 14X-30-12232 | PLATE (WELDED) | 3148- | |
| 6 | \0\14X-30-12231 | PLATE (WELDED) | 3034-3147 | |
| 7 | 14X-30-12263 | PLATE (WELDED) | 3148- | |
| 7 | \0\14X-30-12262 | PLATE (WELDED) | 3034-3147 | |
| 8 | 14X-30-12147 | SUPPORT,R.H. | 3148- | |
| 8 | 14X-30-12146 | SUPPORT,R.H. | 3034-3147 | |
| 9 | 14X-30-12232 | PLATE (WELDED) | 3148- | |
| 9 | \0\14X-30-12231 | PLATE (WELDED) | 3034-3147 | |
| 10 | 14X-30-12263 | PLATE (WELDED) | 3148- | |
| 10 | \0\14X-30-12262 | PLATE (WELDED) | 3034-3147 | |
| 205-30-00220 | FLOATING SEAL ASS'Y | 4180- | ||
| 205-30-00052 | FLOATING SEAL ASS'Y | 3034-4179 | ||
| 11 | \6\ | SEAL | 4180- | |
| 11 | \6\ | SEAL | 3034-4179 | |
| 12 | \6\ | O-RING | 3034- | |
| 13 | 130-30-13170 | BOLT | 3034- | |
| 14 | 01582-11613 | NUT | 3034- | |
| 15 | 01643-31645 | WASHER | 3034- | |
| 16 | 07052-31217 | PLUG | 3034- | |
| 17 | 14X-30-12224 | COVER | 3220- | |
| 17 | 14X-30-12223 | COVER | 3034-3219 | |
| 18 | 14X-30-12252 | SHIM, 1.0MM | 3034- | |
| 19 | 01010-51645 | BOLT | 3034- | |
| 20 | 01643-31645 | WASHER | 3034- |
