| Item | Part No. | Part Name | Qty | Serial No. |

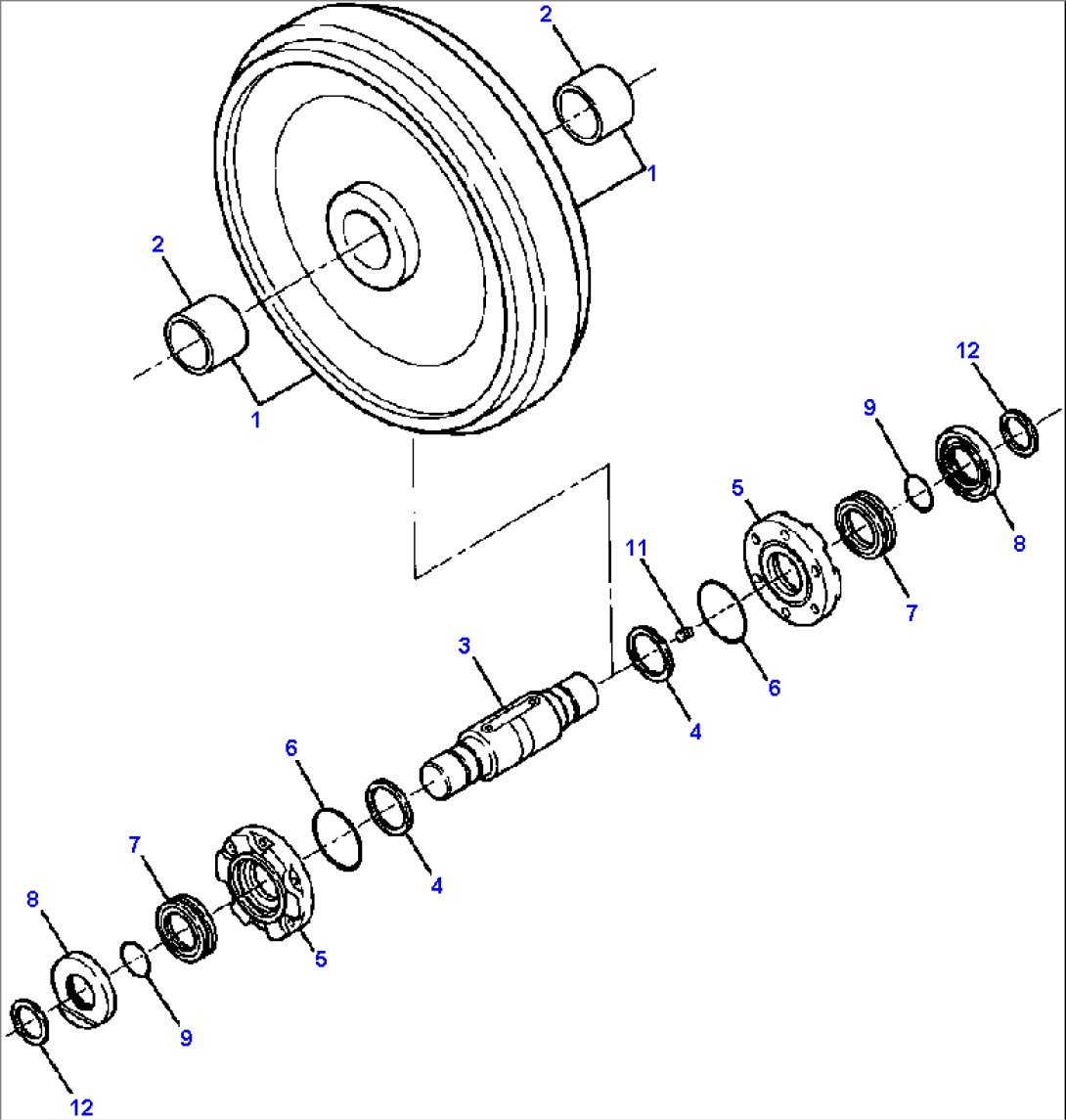

| (742 427 C91) | IDLER ASSEMBLY, FRONT | |||
| 1 | 741 254 C91 | IDLER ASSEMBLY, FRONT | ||
| 2 | 305 449 R3 | BUSHING, FRONT IDLER | ||
| 3 | 742 428 C1 | SHAFT, IDLER | ||
| 4 | 624 762 C1 | WASHER, THRUST | ||
| 5 | 741 258 C1 | RETAINER, SEAL | ||
| 24 862 R1 | BOLT, MOUNTING - 1/2NCx1-1/2 | |||
| 25 536 R1 | WASHER, FLAT - 1/2 | |||
| 6 | 468 339 R1 | O-RING | ||
| 7 | 1208 549 H91 | KIT, SEAL | ||
| 8 | 742 429 C1 | RETAINER, SEAL | ||
| 9 | 22 408 R1 | O-RING | ||
| 11 | 444 660 | PLUG, DRAIN | ||
| 12 | 741 265 R1 | RING, RETAINING | ||
| F1 - PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE | ||||
| ONLY. ORDER INDIVIDUAL PIECE PARTS. |
