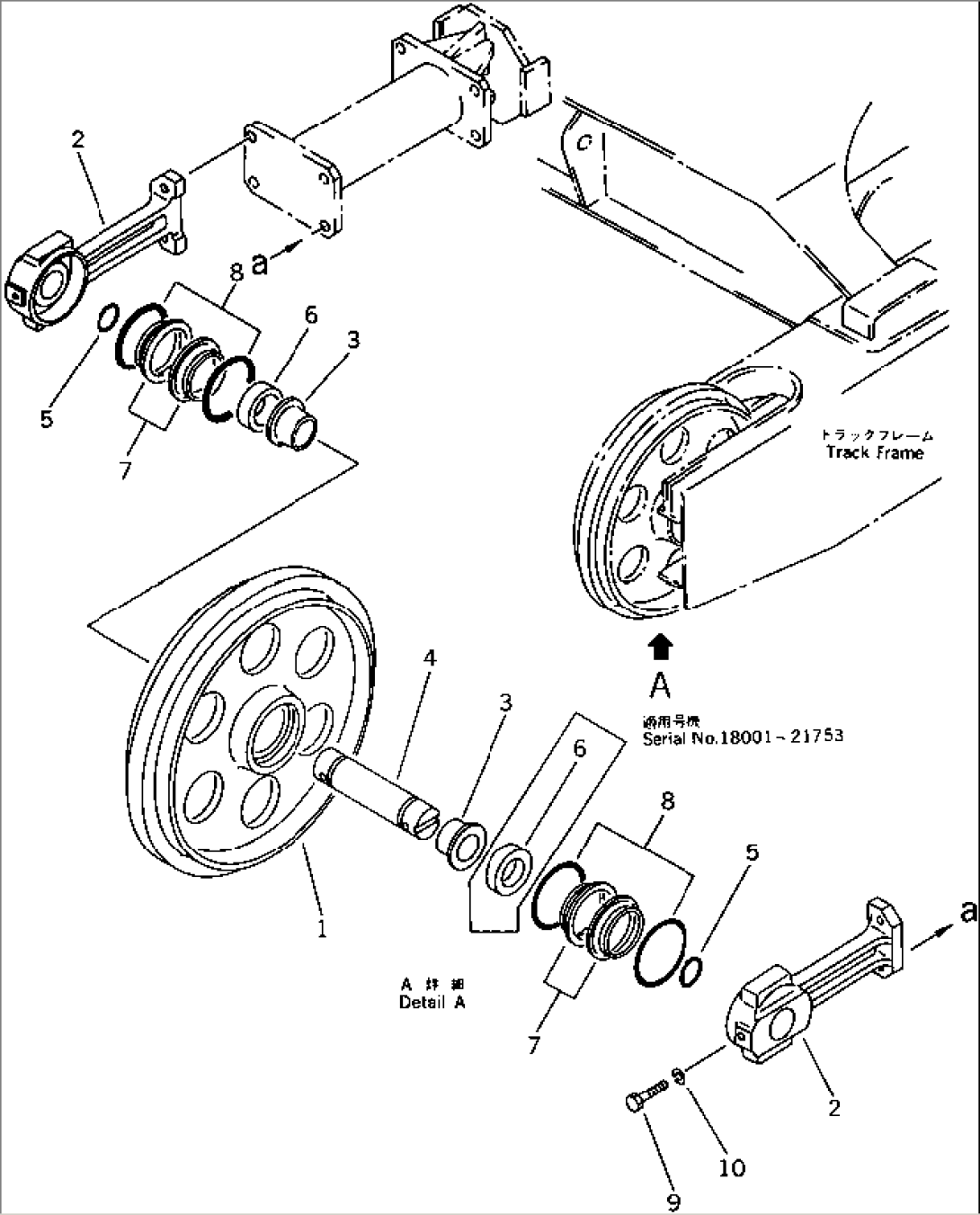

| Item | Part No. | Part Name | Qty | Serial No. |
| 20T-30-00101 | IDLER ASS'Y | 8419- | ||
| 20R-30-00023 | IDLER ASS'Y | 6001-8418 | ||
| 1 | 20T-30-31610 | IDLER | 8419- | |
| 20R-30-11360 | IDLER | 6001-8418 | ||
| 2 | 20T-30-31620 | SUPPORT | 8419- | |
| 20R-30-21121 | SUPPORT | 6001-8418 | ||
| 3 | 20T-30-11190 | BUSHING | 8419- | |
| 10E-30-12150 | BUSHING | 6001-8418 | ||
| 4 | 20T-30-12191 | SHAFT | 8419- | |
| 20R-30-11240 | SHAFT | 6001-8418 | ||
| 5 | 07000-03028 | O-RING | 6001- | |
| 6 | 10E-30-12140 | COLLAR | 6001-8418 | |
| 140-30-00041 | FLOATING SEAL ASS'Y | 6001- | ||
| 7 | 140-30-00401 | SEAL RING ASS'Y | 6001- | |
| \6\ | RING,SEAL | 6001- | ||
| 8 | 140-30-00410 | O-RING ASS'Y | 6001- | |
| \6\ | O-RING | 6001- | ||
| 9 | 01090-51045 | BOLT | 6001- | |
| 10 | 01602-21030 | WASHER,SPRING | 6001- |
