| Item | Part No. | Part Name | Qty | Serial No. |

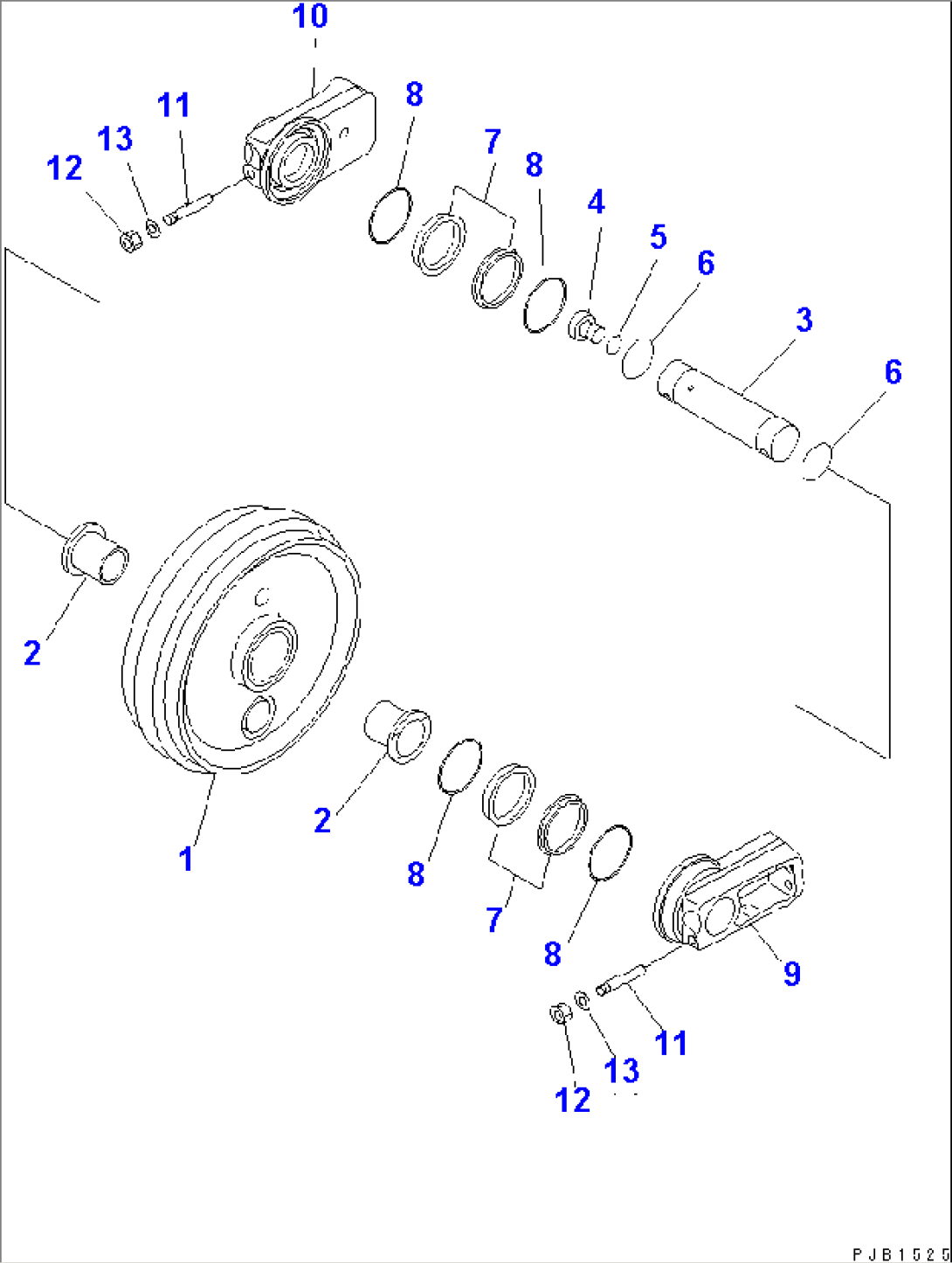

| 208-30-00300 | FRONT IDLER ASS'Y | K40001- | ||
| 1 | 208-30-68210 | IDLER | K40001- | |
| 2 | 208-30-11560 | BUSHING | K40001- | |
| 3 | 208-30-68220 | SHAFT | K40001- | |
| 4 | 07040-13618 | PLUG | K40001- | |
| 5 | 07002-03634 | O-RING | K40001- | |
| 6 | 07000-02090 | O-RING | K40001- | |
| 21T-30-00110 | FLOATING SEAL ASS'Y | K40001- | ||
| 7 | \6\ | RING | K40001- | |
| 8 | \6\ | O-RING | K40001- | |
| 9 | 208-30-68230 | SUPPORT,L.H. | K40001- | |
| 10 | 208-30-68240 | SUPPORT,R.H. | K40001- | |
| 11 | 208-30-68250 | BOLT | K40001- | |
| 12 | 01580-11613 | NUT | K40001- | |
| 13 | 01643-31645 | WASHER | K40001- |
