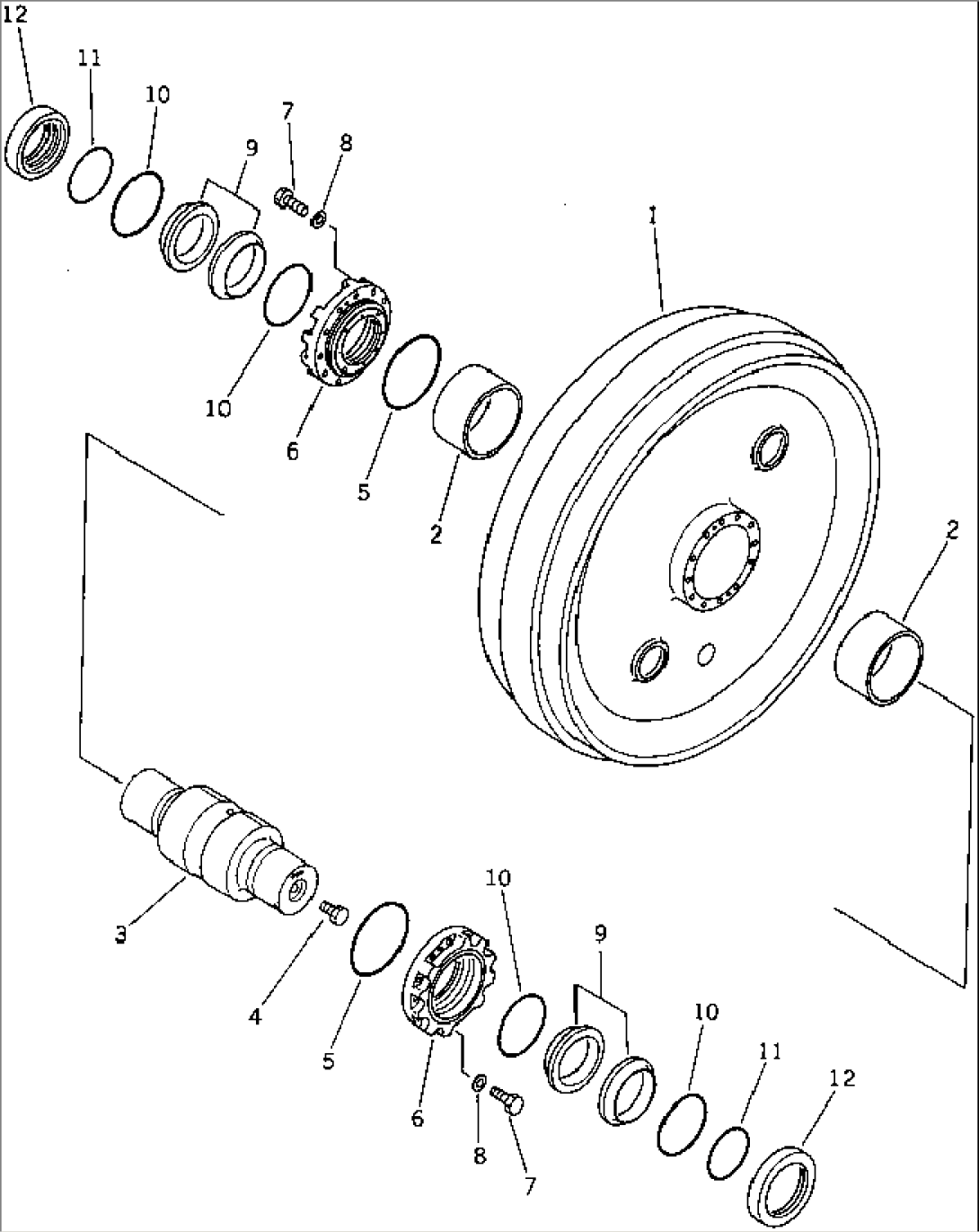

| Item | Part No. | Part Name | Qty | Serial No. |
| 195-30-01130 | FRONT IDLER ASS'Y | 17501- | ||
| 195-30-01170 | FRONT IDLER ASS'Y,(B) | 17501- | ||
| 1 | 195-30-63110 | IDLER,FRONT | 17501- | |
| 2 | 195-30-33140 | BUSHING | 17501- | |
| 3 | 195-30-53130 | SHAFT | 17501- | |
| 4 | 07052-31624 | PLUG | 17501- | |
| 5 | 195-30-33190 | O-RING | 17501- | |
| 5 | 195-30-33230 | O-RING,(B) | 17501- | |
| 6 | 195-30-53201 | RETAINER ASS'Y | 17501- | |
| 7 | 01010-81445 | BOLT | 17501- | |
| 8 | 01643-31445 | WASHER | 17501- | |
| 205-30-00052 | FLOATING SEAL ASS'Y | 17501- | ||
| 205-30-00160 | FLOATING SEAL ASS'Y,(B) | 17501- | ||
| 9 | \6\ | RING | 17501- | |
| 9 | \6\ | RING,(B) | 17501- | |
| 10 | \6\ | O-RING | 17501- | |
| 11 | 07000-12095 | O-RING | 17501- | |
| 11 | 07000-52095 | O-RING,(B) | 17501- | |
| 12 | 195-30-53140 | RING | 17501- |
